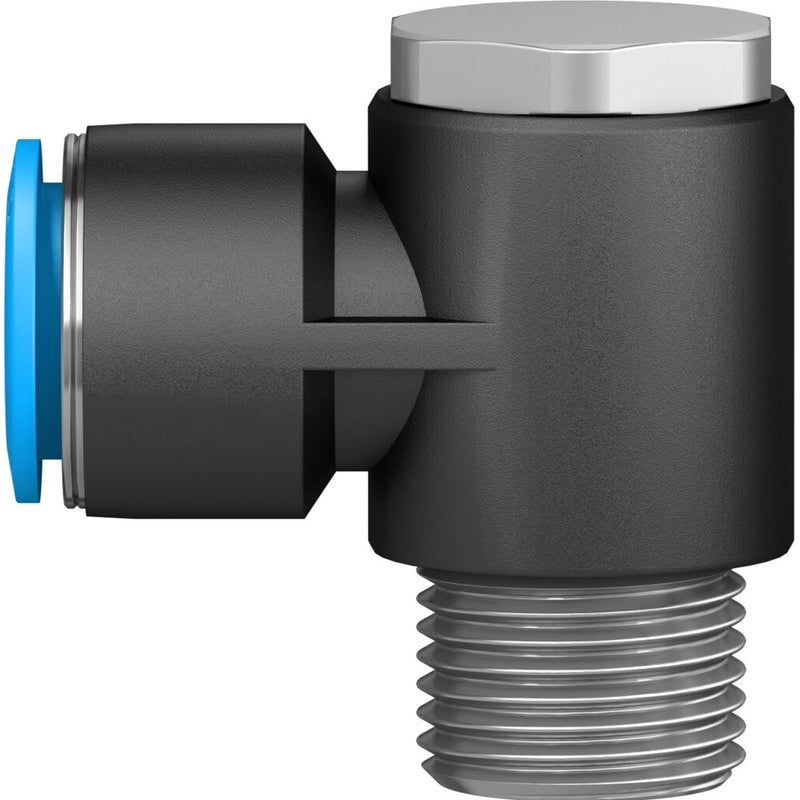

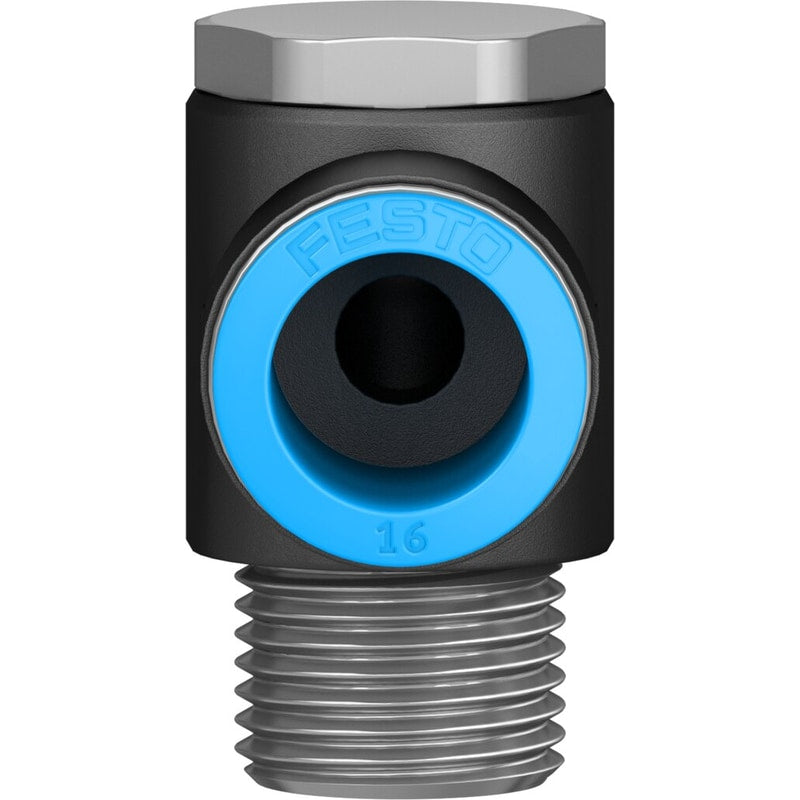

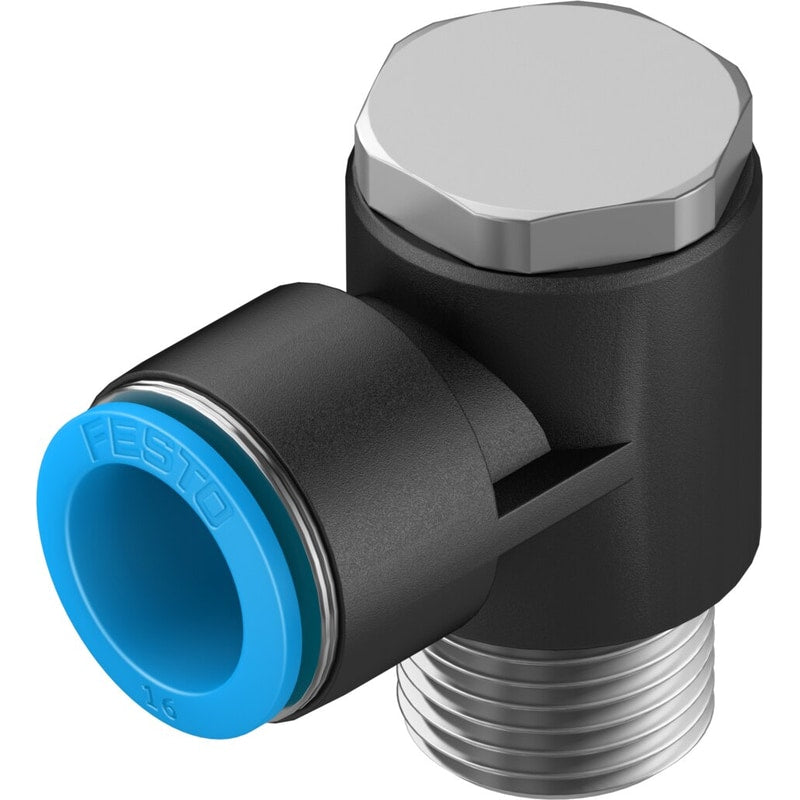

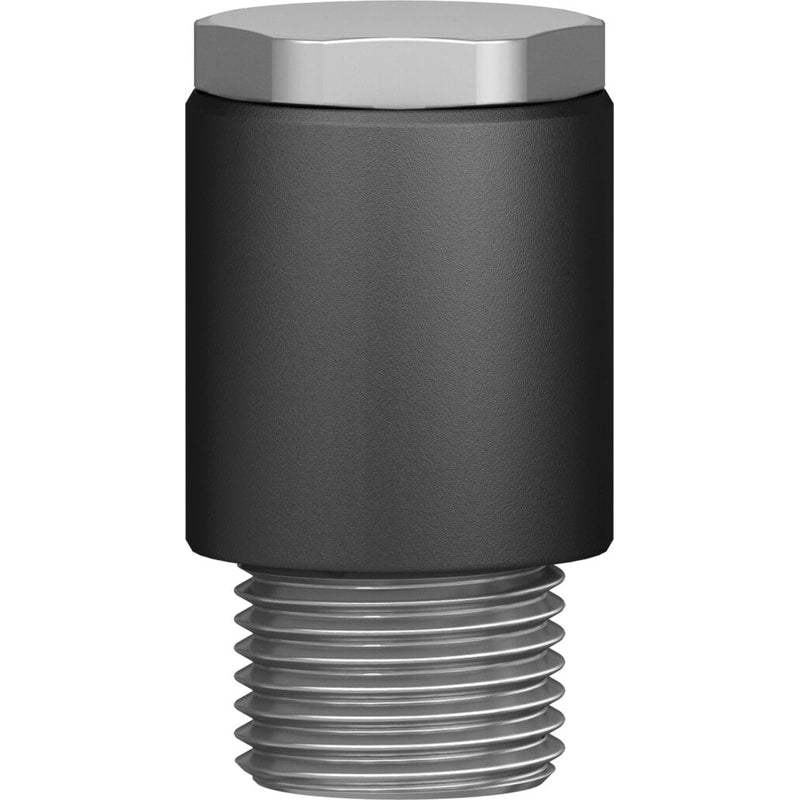

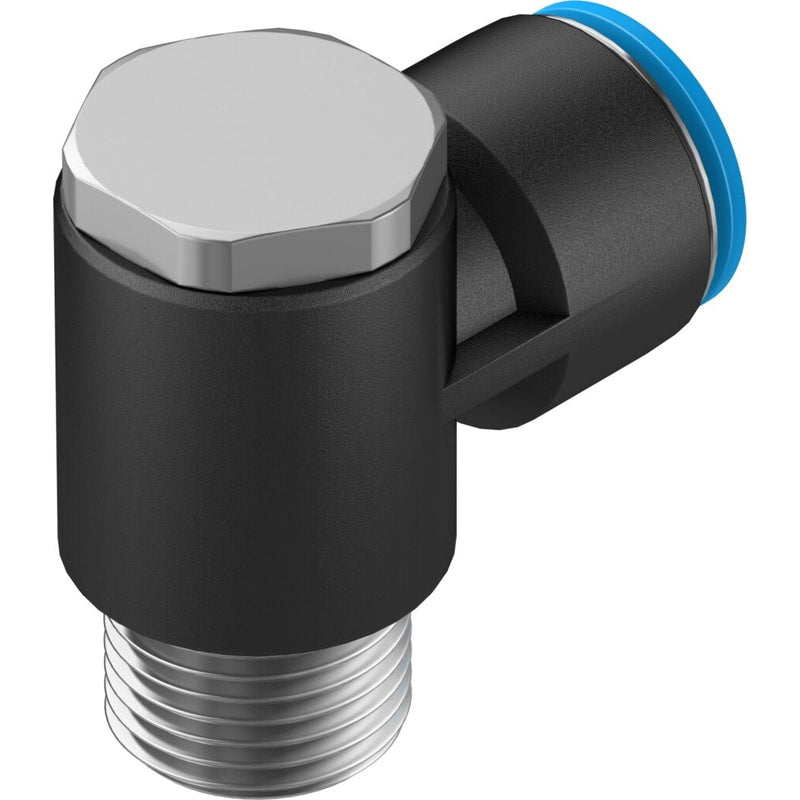

Push-in L-fitting
QSLV-1/2-5/8-U
190752
GTIN 4052568323417
Vendor Festo
- Pneumatic connection 1
- external thread 1/2 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/8"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
- Nominal width
- 8 mm
Regular price
$18.94
Unit price
QSLV-1/2-5/8-U Push-in L-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSLV-1/2-5/8-U
Regular price
$18.94
Unit price
QSLV-1/2-5/8-U Push-in L-fitting is backordered and will ship as soon as it is back in stock.
push-in L-fitting QSLV-1/2-5/8-U Part number: 190752 360° orientable, male thread with external hexagon.
| Fitting Type | Male Banjo |
|---|---|
| Size | Standard |
| Nominal size | 8.9 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 30 Nm |
| Product weight | 21 g |
| connection 1 | NPT1/2-14 |
| connection 2 | For hose external diameter 5/8” |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
