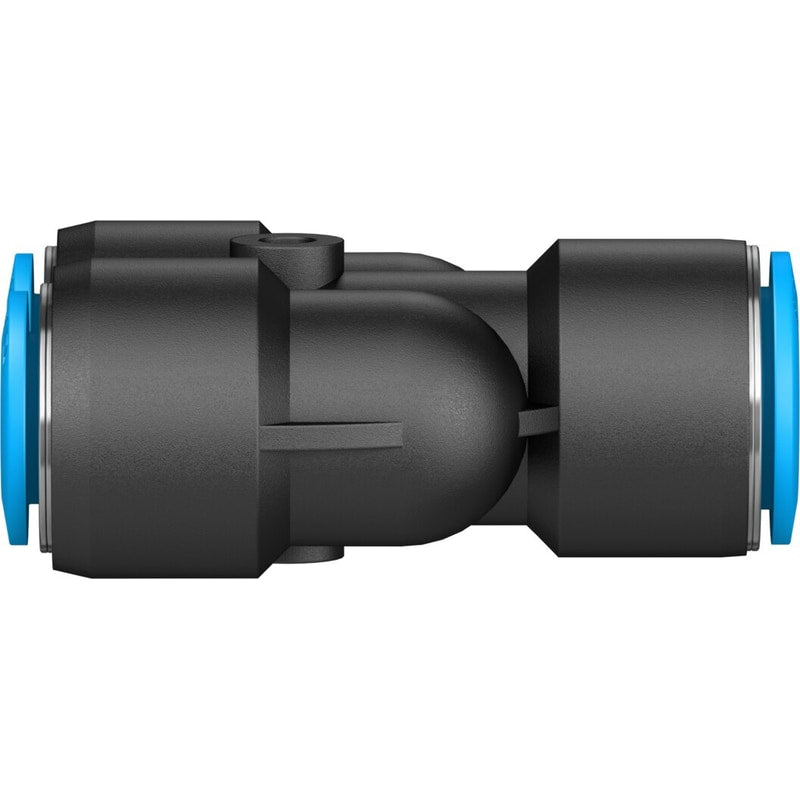

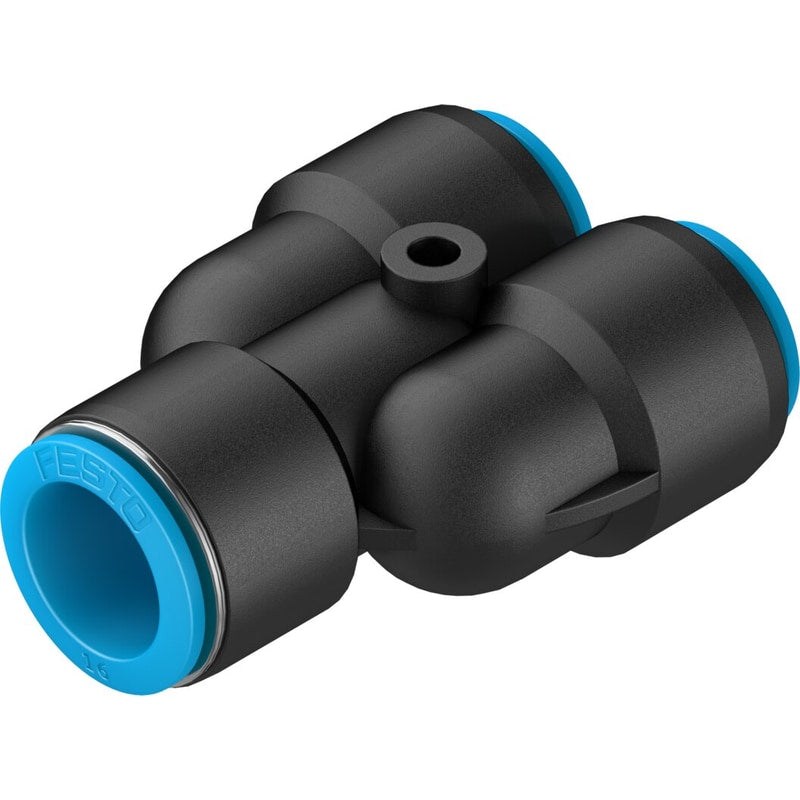

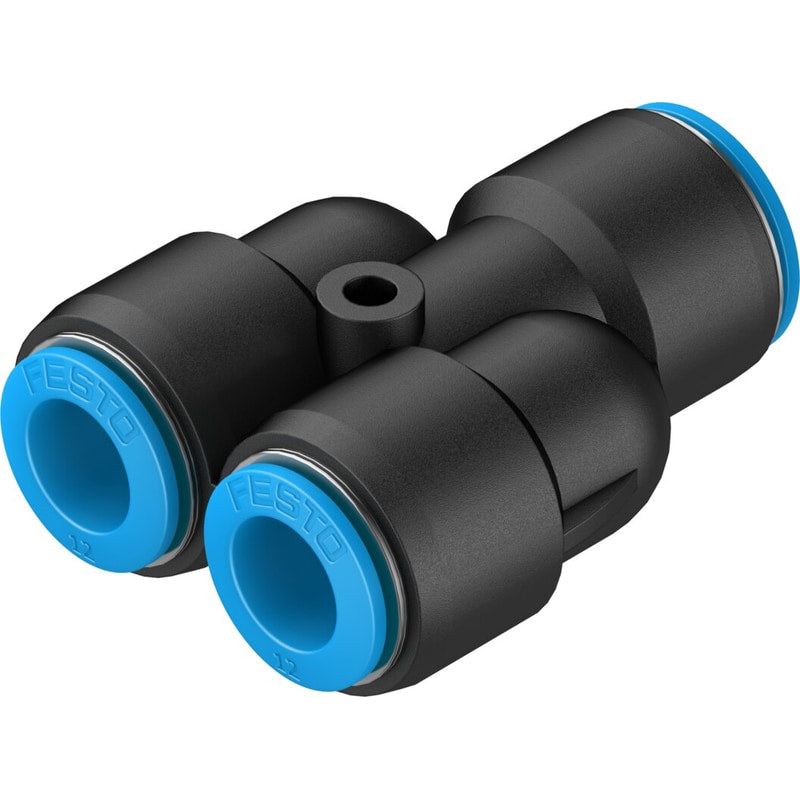

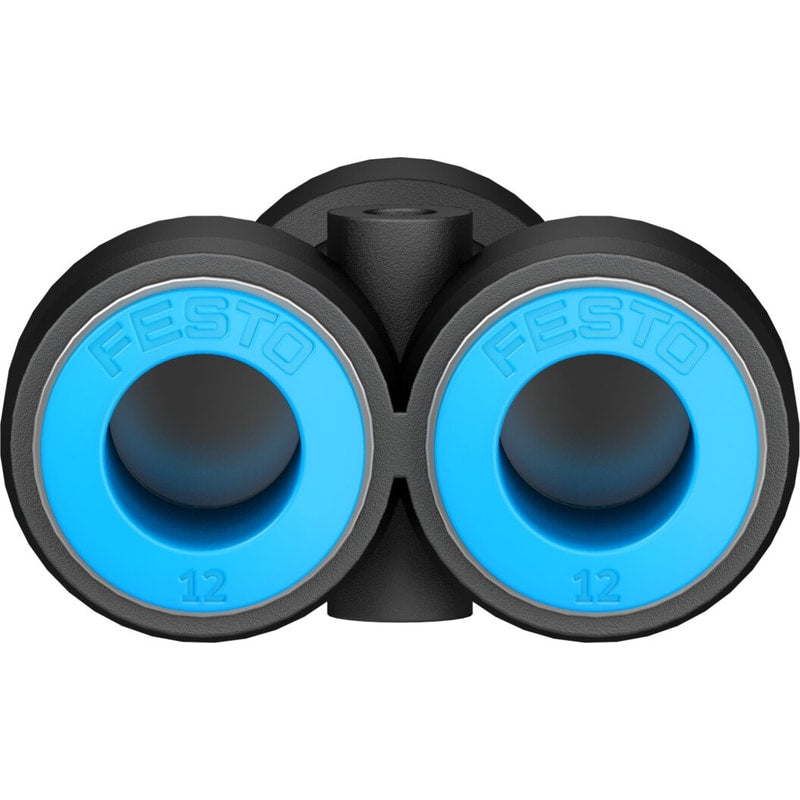

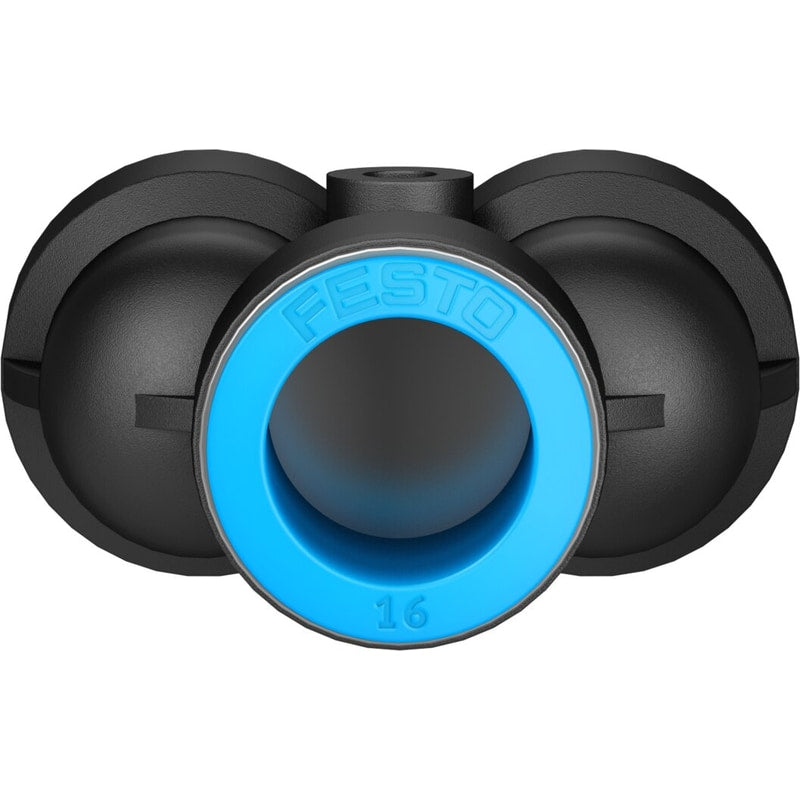

Push-in Y-connector
QSY-16-12 (Pack of 10)
190708
GTIN 4052568043070
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 7 mm
Regular price
$11.40
Unit price
QSY-16-12 Push-in Y-connector (Pack of 10) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSY-16-12 (Pack of 10)
Regular price
$11.40
Unit price
QSY-16-12 Push-in Y-connector (Pack of 10) is backordered and will ship as soon as it is back in stock.
push-in Y-connector QSY-16-12 Part number: 190708 ★ Core product range reducing.
| Fitting Type | Union Y Reducer |
|---|---|
| Size | Standard |
| Nominal size | 7 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 48 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1 | 16mm outside diameter, for tubing |
| connection 2 | 12mm outside diameter, for tubing |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
