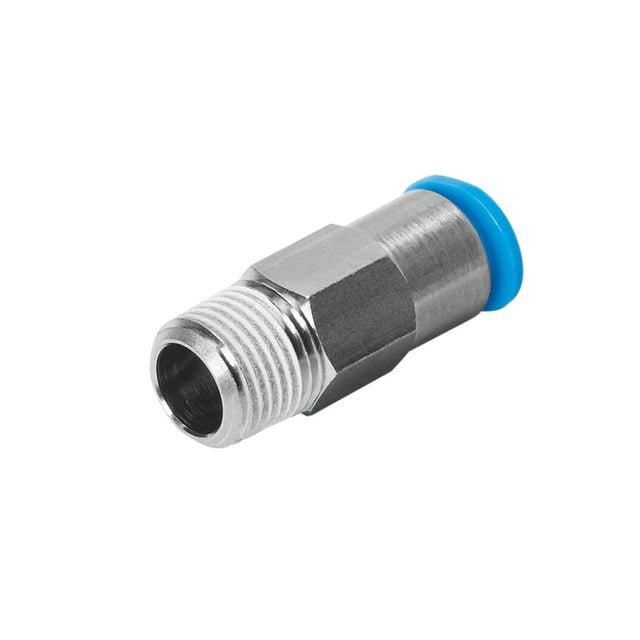

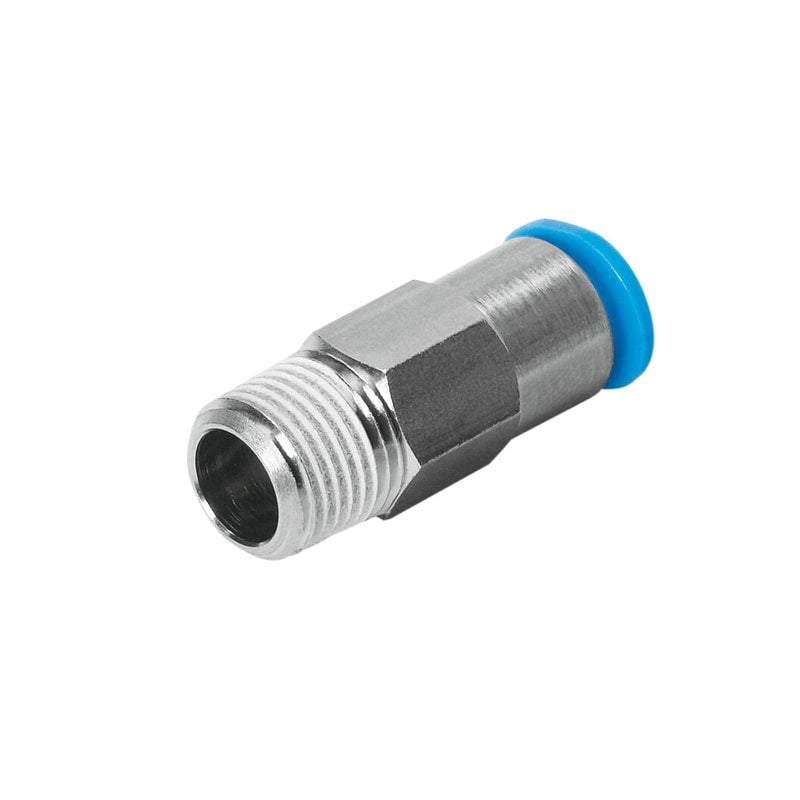

Push-in fitting
QSMK-10-32-UNF-5/32-U
190704
GTIN 4052568323097
Vendor Festo
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
- Nominal width
- 1.4 mm
Regular price
$11.43
Unit price
QSMK-10-32-UNF-5/32-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSMK-10-32-UNF-5/32-U
Regular price
$11.43
Unit price
QSMK-10-32-UNF-5/32-U is backordered and will ship as soon as it is back in stock.
push-in fitting QSMK-10-32-UNF-5/32-U Part number: 190704
| Fitting Type | Male Straight w/ Shut-Off |
|---|---|
| Size | Mini |
| Nominal size | 1.4 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 1.5 Nm |
| Product weight | 7 g |
| connection 1 | UNF10-32 |
| connection 2 | 5/32" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
