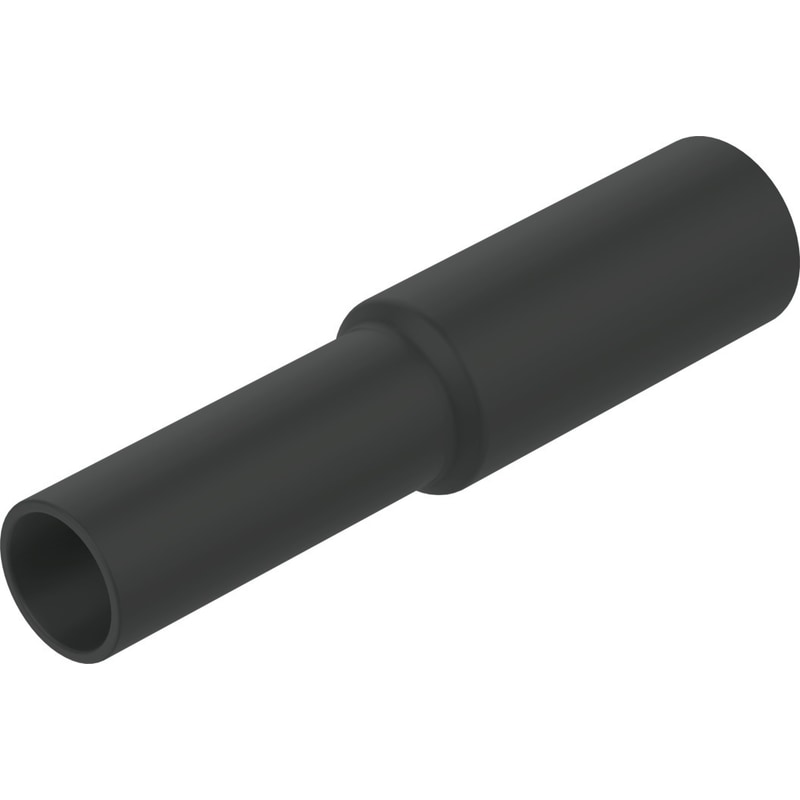

Push-in sleeve
QSH-5/8-1/2-U
190642
GTIN 4052568323066
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 5/8"
- Pneumatic connection 2
- Push-in sleeve Ø 1/2"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
Regular price
$3.41
Unit price
QSH-5/8-1/2-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSH-5/8-1/2-U
Regular price
$3.41
Unit price
QSH-5/8-1/2-U is backordered and will ship as soon as it is back in stock.
push-in sleeve QSH-5/8-1/2-U Part number: 190642 reducing.
| Fitting Type | Push-in Sleeve |
|---|---|
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 4.5 g |
| connection 1 | Push-in sleeve QS-5/8" |
| connection 2 | Push-in sleeve QS-1/2" |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
