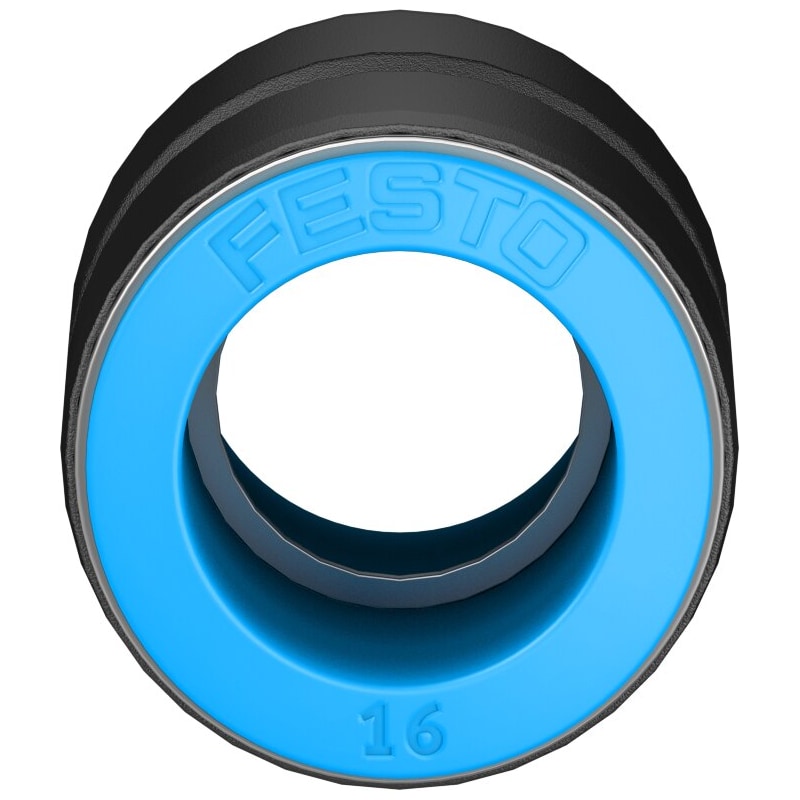

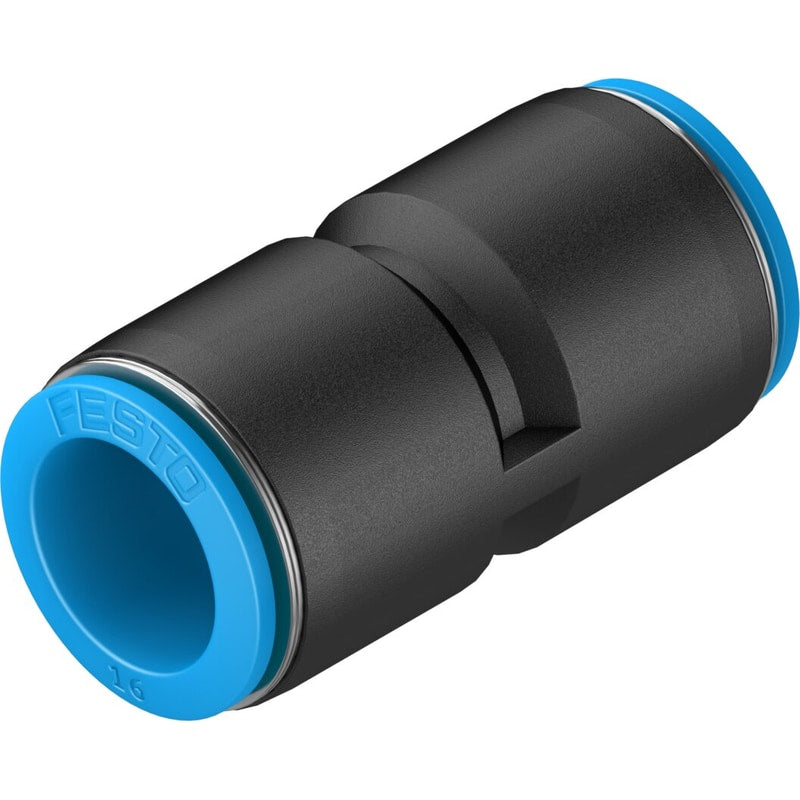

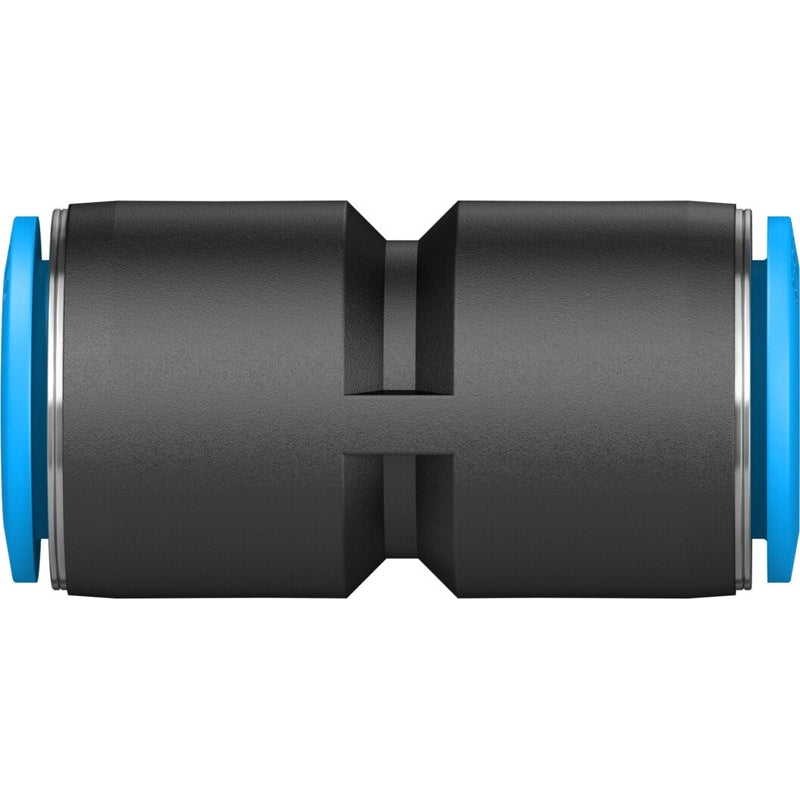

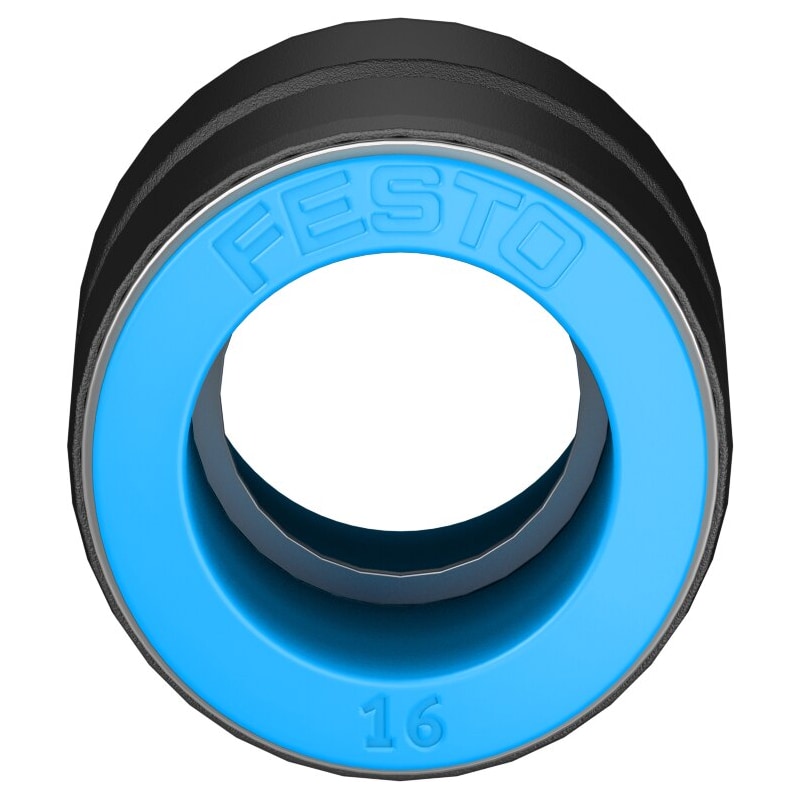

Push-in connector
QS-5/8T-U
190589
GTIN 4052568322748
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 5/8"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/8"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -10 °C - 60 °C
- Nominal width
- 13 mm
Regular price
$10.06
Unit price
QS-5/8T-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QS-5/8T-U
Regular price
$10.06
Unit price
QS-5/8T-U is backordered and will ship as soon as it is back in stock.
push-in connector QS-5/8T-U Part number: 190589
| Fitting Type | Union Straight |
|---|---|
| Size | Standard |
| Nominal size | 13.7 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 25 g |
| connection 1 | For hose external diameter 5/8” |
| connection 2 | For hose external diameter 5/8” |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
