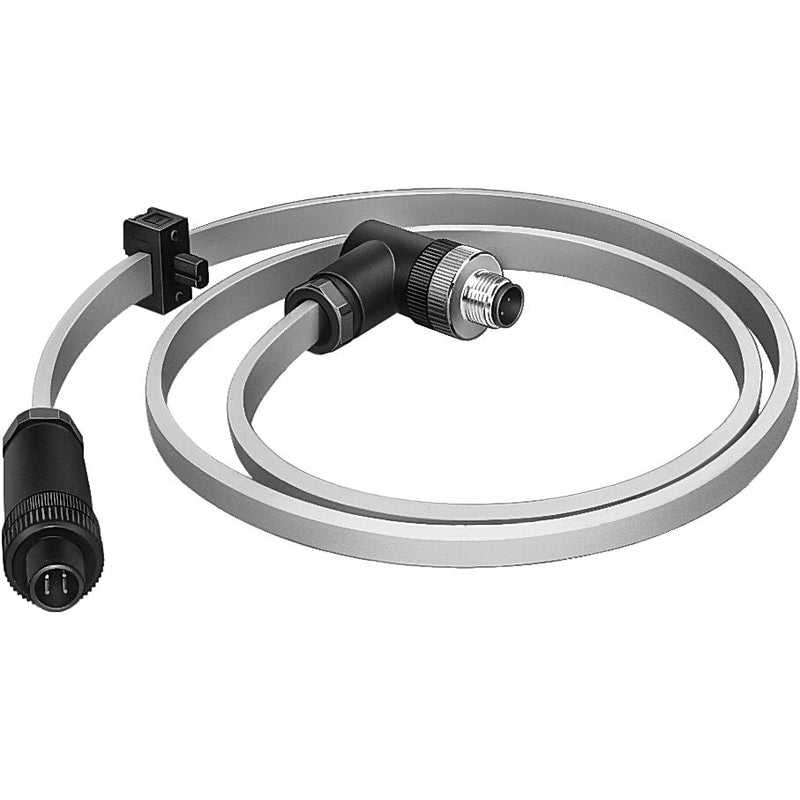

Addressing cable
KASI-ADR
18960
GTIN 4052568113186
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- AS-Interface
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
Regular price
$169.52
Unit price
KASI-ADR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KASI-ADR
Regular price
$169.52
Unit price
KASI-ADR is backordered and will ship as soon as it is back in stock.
| Type code | KASI |
|---|---|
| Protocol | AS-Interface |
| Design | T-distributor with cables at both ends |
| Distributor type | 2 to 1 |
| Additional functions | Connecting the programming device to an AS-Interface component via AS-i flat cable. |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | AS-Interface |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Inserted |
| Electrical connection for input 1, connection pattern | 995700 |
| Electrical connection 2, function | Field device end |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Socket |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 2 |
| Electrical connection 2, type of mounting | Inserted |
| Electrical connection 3, function | Control side |
| Electrical connection 3, design | Round |
| Electrical connection 3, connection type | Plug |
| Electrical connection 3, cable outlet | Angled |
| Electrical connection 3, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 3, number of pins/wires | 4 |
| Electrical connection 3, occupied pins/wires | 2 |
| Electrical connection 3, type of mounting | Inserted |
| Electrical connection for input 3, connection pattern | 995746 |
| DC operating voltage range | 0 V ... 48 V |
| Operating voltage range AC | 0 V ... 48 V |
| Current rating at 40°C | 0.125 |
| Surge resistance | 0.5 kV |
| Cable length 1 | 2.4 m |
| Cable length 2 | 0.1 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Cable design | 2 x 1.5 mm² |
| Nominal conductor cross section | 1.5 mm² |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 85 °C |
| Ambient temperature with flexible cable installation | -25 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 2 |
| Material of cable sheath | Rubber compound |
| Color cable sheath | Yellow |
| Housing colour | Black |
