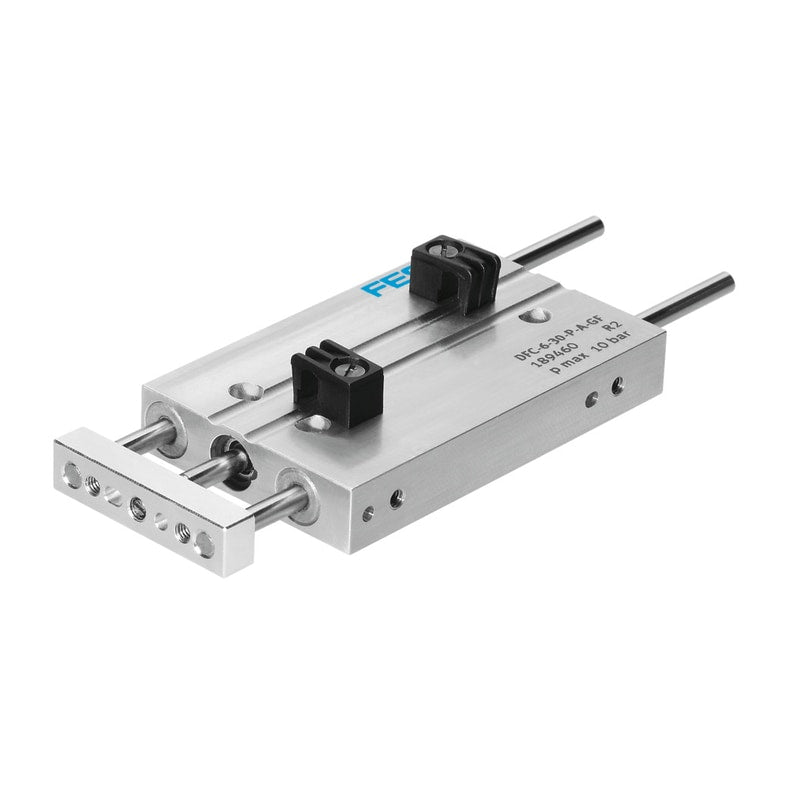

Mini guided actuator
DFC-10-30-P-A-KF
189478
GTIN 4052568150235
Vendor Festo
- Piston diameter
- 10 mm
- Theoretical force at 6 bar, advancing
- 47 N
- Stroke
- 30 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$788.12
Unit price
DFC-10-30-P-A-KF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFC-10-30-P-A-KF
Regular price
$788.12
Unit price
DFC-10-30-P-A-KF is backordered and will ship as soon as it is back in stock.
mini guided drive DFC-10-30-P-A-KF Part number: 189478 For position sensing with ball bearing guide. Sensor bracket is included in scope of delivery
| Centre of gravity distance from working load to yoke plate | 15 mm |
|---|---|
| Stroke | 30 mm |
| Piston diameter | 10 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Max. speed | 1 m/s |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
