ESS-80-EU
Regular price
$105.42
Unit price
ESS-80-EU is backordered and will ship as soon as it is back in stock.

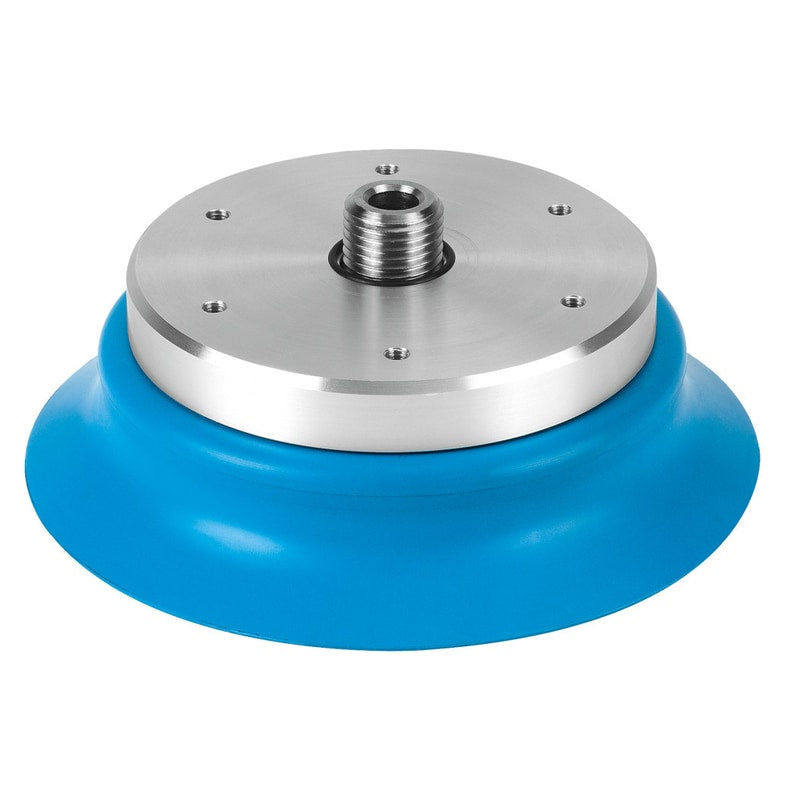

suction cup ESS-80-EU easily interchangeable, Min. workpiece radius=160 mm, Nominal size=6 mm, suction cup diameter=80 mm, suction cup volume=51,61 cm3, Position of connection=on top
| Min. workpiece radius | 160 mm |
|---|---|
| Nominal size | 6 mm |
| suction cup diameter | 80 mm |
| suction cup volume | 51.61 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Correlation to suction-cup holder | Size 5 |
| Suction cup shape | Round, extra deep |
| Operating pressure | 0 ... 0.95 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Food-safe | See Supplementary material information |
