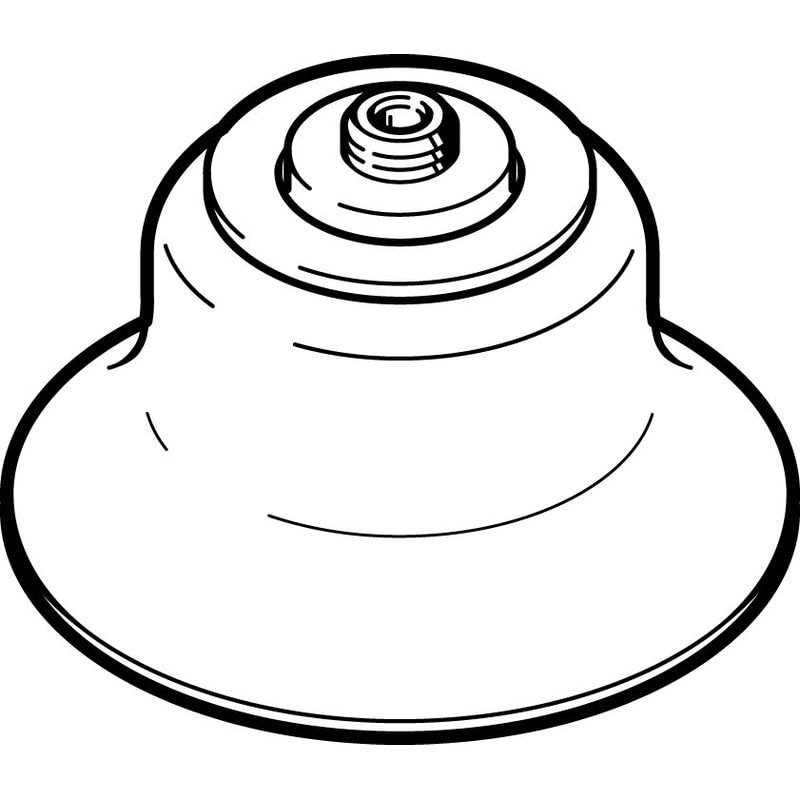

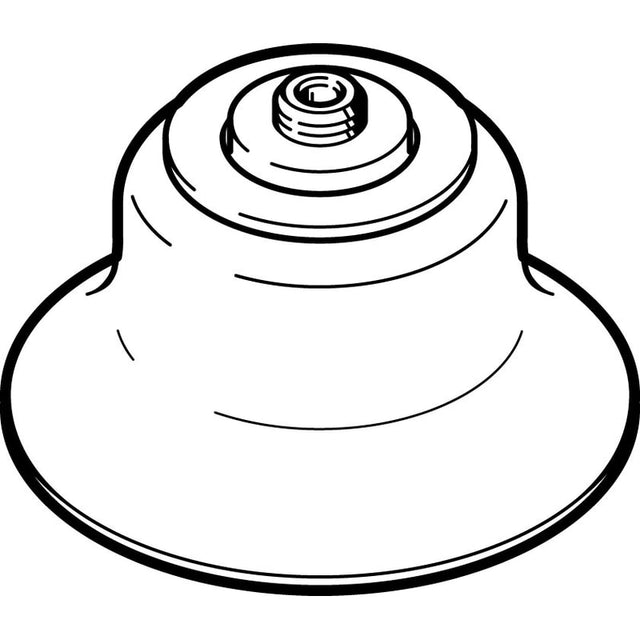

Vacuum suction cup
ESS-50-EU
189351
GTIN 4052568042424
Vendor Festo
- Suction cup diameter
- 50 mm
- Suction cup shape
- Round, extra-deep
- Suction cup material
- PUR
Regular price
$43.14
Unit price
ESS-50-EU is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESS-50-EU
Regular price
$43.14
Unit price
ESS-50-EU is backordered and will ship as soon as it is back in stock.
suction cup ESS-50-EU easily interchangeable, Min. workpiece radius=100 mm, Nominal size=3 mm, suction cup diameter=50 mm, suction cup volume=7,9 cm3, Position of connection=on top
| Min. workpiece radius | 100 mm |
|---|---|
| Nominal size | 3 mm |
| suction cup diameter | 50 mm |
| suction cup volume | 7.9 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Correlation to suction-cup holder | Size 4 |
| Suction cup shape | Round, extra deep |
| Operating pressure | 0 ... 0.95 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Food-safe | See Supplementary material information |
