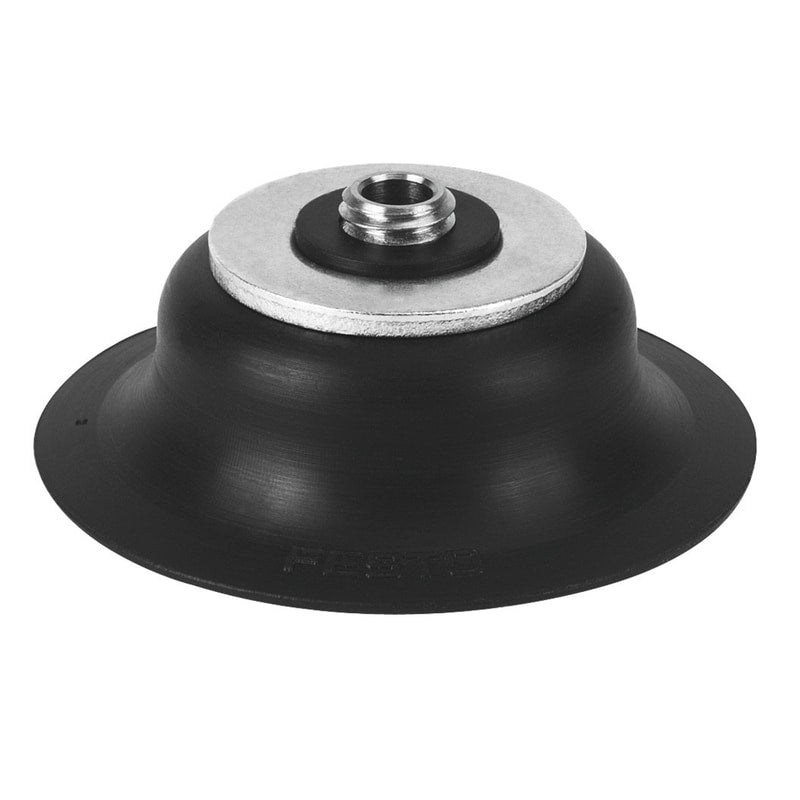

Vacuum suction cup
ESS-40-SNA
189308
GTIN 4052568042219
Vendor Festo
- Suction cup diameter
- 40 mm
- Suction cup shape
- Round, flat
- Suction cup material
- NBR
Regular price
$34.41
Unit price
ESS-40-SNA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESS-40-SNA
Regular price
$34.41
Unit price
ESS-40-SNA is backordered and will ship as soon as it is back in stock.
suction cup ESS-40-SNA easily interchangeable, Min. workpiece radius=230 mm, Nominal size=3 mm, suction cup diameter=40 mm, suction cup volume=1,566 cm3, Position of connection=on top
| Min. workpiece radius | 230 mm |
|---|---|
| Nominal size | 3 mm |
| suction cup diameter | 40 mm |
| suction cup volume | 1.566 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Special characteristics | Antistatic |
| Correlation to suction-cup holder | Size 4 |
| Suction cup shape | round flat |
| Operating pressure | 0 ... 0.95 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
