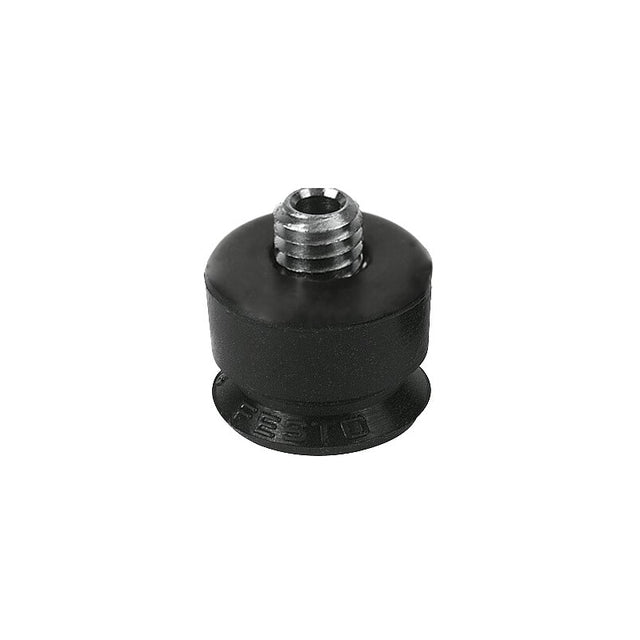

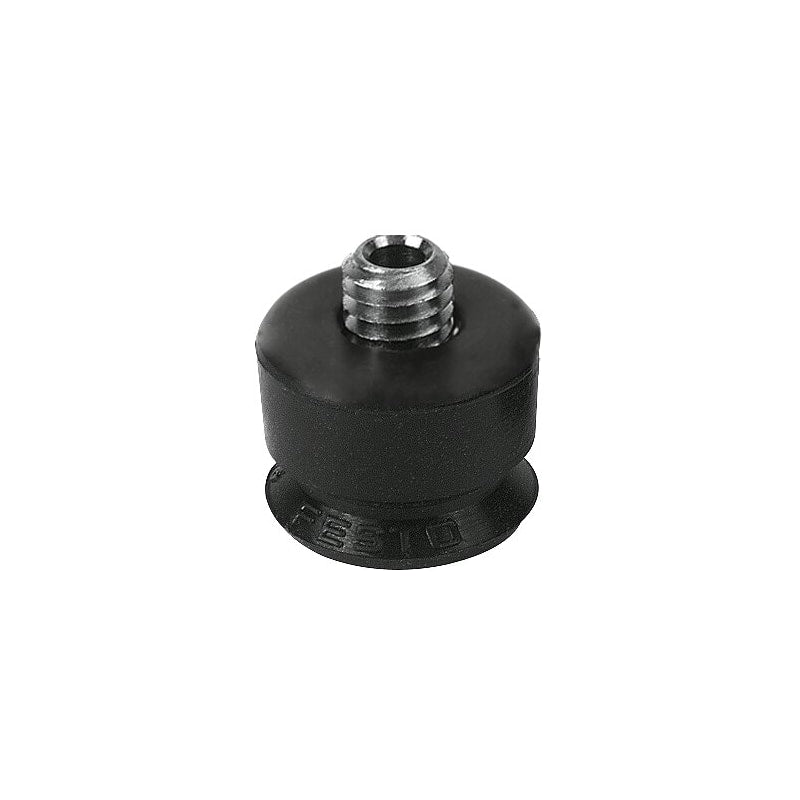

ESS-15-SN
Regular price
$13.80
Unit price
ESS-15-SN is backordered and will ship as soon as it is back in stock.
suction cup ESS-15-SN easily interchangeable, Min. workpiece radius=35 mm, Nominal size=2 mm, suction cup diameter=15 mm, suction cup volume=0,208 cm3, Position of connection=on top
| Min. workpiece radius | 35 mm |
|---|---|
| Nominal size | 2 mm |
| suction cup diameter | 15 mm |
| suction cup volume | 0.208 cm3 |
| Position of connection | on top |
| Assembly position | Any |
| Correlation to suction-cup holder | Size 3 |
| Suction cup shape | round flat |
| Operating pressure | 0 ... 0.95 bar |
| Nominal operating pressure | '-0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Food-safe | See Supplementary material information |
