Vacuum suction cup holder
ESH-HF-3-M14X1
189262
GTIN 4052568078591
Vendor Festo
Regular price
$87.78
Unit price
ESH-HF-3-M14X1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESH-HF-3-M14X1
Regular price
$87.78
Unit price
ESH-HF-3-M14X1 is backordered and will ship as soon as it is back in stock.

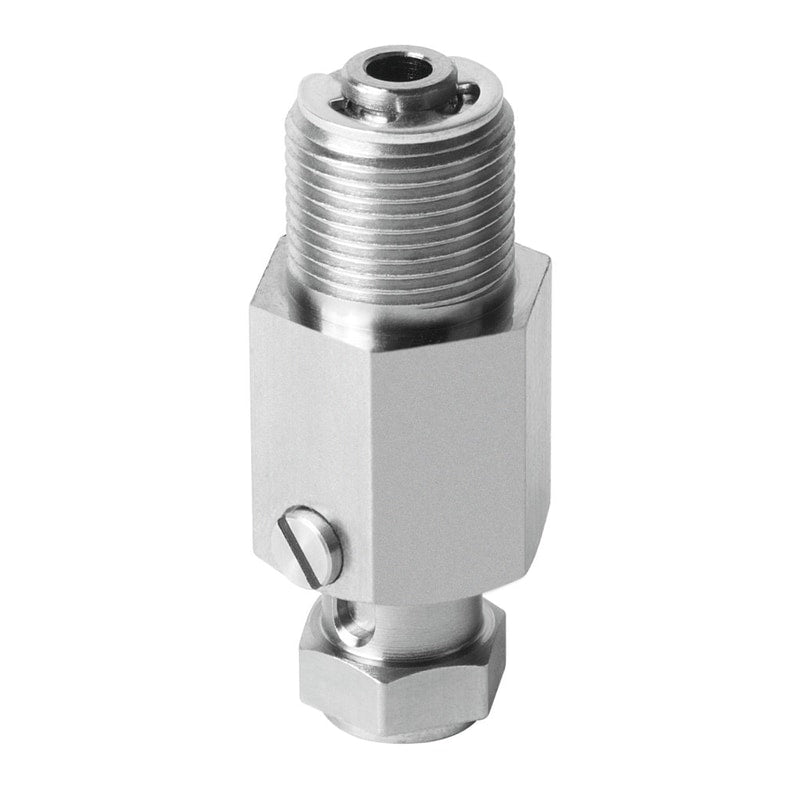

suction cup holder ESH-HF-3-M14X1 with height compensator, for direct screw-in fitting. Height compensator for suction-cup holder=6 mm, Nominal size=3,3 mm, Volume=0,4 cm3, Assembly position=Vertical, Design structure=(* Vacuum connection at top, * with height compensation)
| Height compensator for suction-cup holder | 6 mm |
|---|---|
| Nominal size | 3.3 mm |
| Volume | 0.4 cm3 |
| Assembly position | Vertical |
| Design structure | Vacuum connection at topwith height compensation |
| Correlation to suction-cup holder | Size 3 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 54 g |
| Mounting type | with external (male) threadVia vacuum port |
| suction cup mounting | M4 |
| Vacuum connection | M14x1 |
