Vacuum suction cup holder
ESH-HD-6-G
189242
GTIN 4052568149772
Vendor Festo
Regular price
$346.42
Unit price
ESH-HD-6-G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESH-HD-6-G
Regular price
$346.42
Unit price
ESH-HD-6-G is backordered and will ship as soon as it is back in stock.

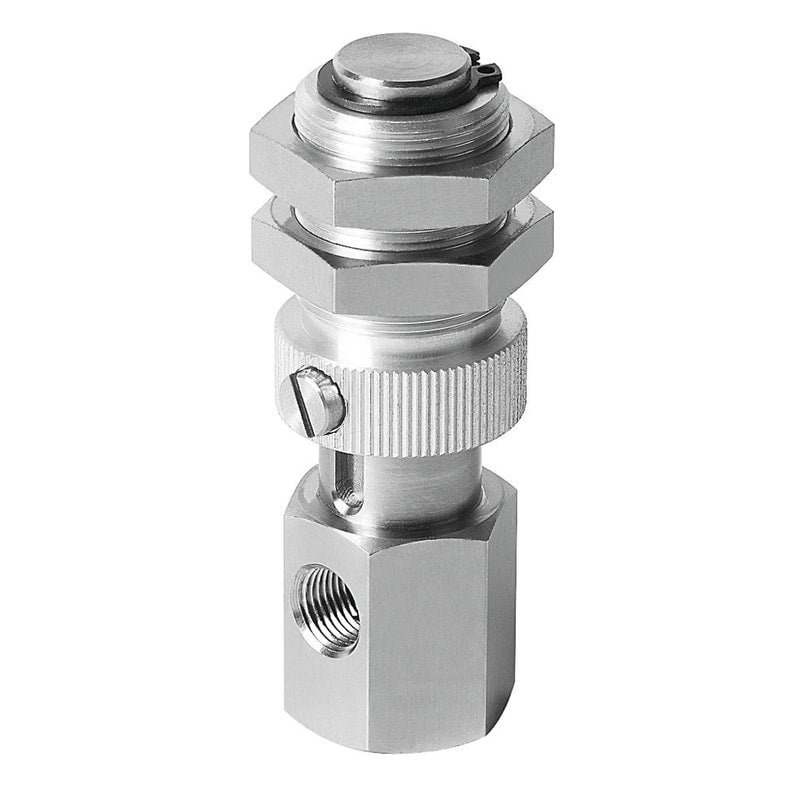

suction cup holder ESH-HD-6-G with height compensator, vacuum connection at side, compensator secured by two hexagonal nuts. Height compensator for suction-cup holder=20 mm, Volume=13,171 cm3, Assembly position=Vertical, Design structure=(* Vacuum connection at side, * with height compensation), Correlation to suction-cup holder=Size 6
| Height compensator for suction-cup holder | 20 mm |
|---|---|
| Volume | 13.171 cm3 |
| Assembly position | Vertical |
| Design structure | Vacuum connection at sidewith height compensation |
| Correlation to suction-cup holder | Size 6 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 472 g |
| Mounting type | with lock nut |
| suction cup mounting | M20x2 |
| Vacuum connection | G1/4 |
| Materials note | Conforms to RoHS |
