Position sensor
SMH-S1-HGPP10/12
189040
GTIN 4052568149710
Vendor Festo
- Design
- for pneumatic gripper
Regular price
$181.54
Unit price
SMH-S1-HGPP10/12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMH-S1-HGPP10/12
Regular price
$181.54
Unit price
SMH-S1-HGPP10/12 is backordered and will ship as soon as it is back in stock.

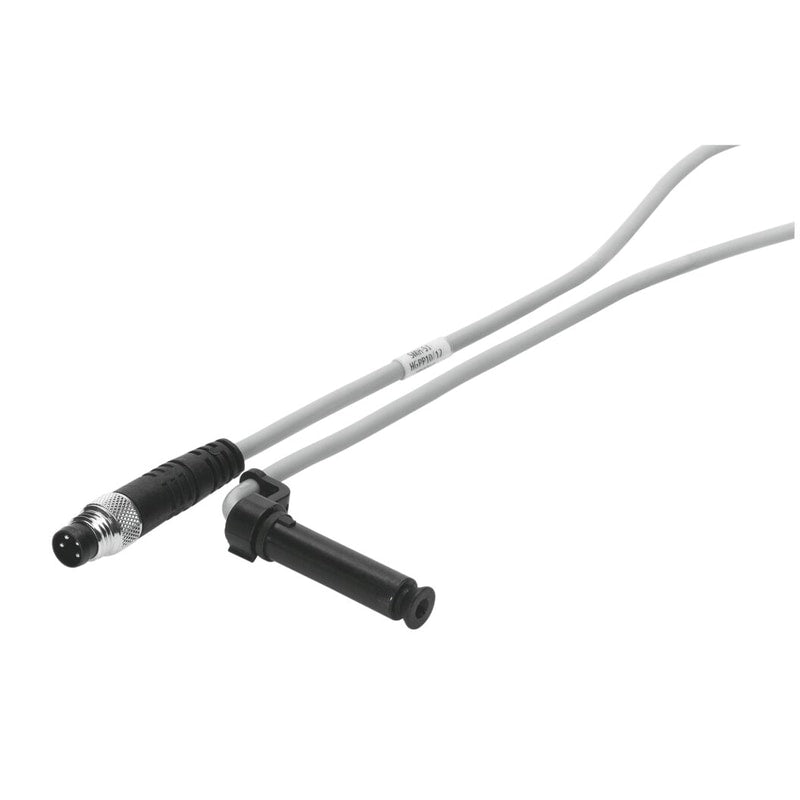

position sensor SMH-S1-HGPP10/12 With Hall effect, for contactless detection with mini-grippers. Only functional in combination with evaluation unit SMH-AE1 or signal converter SVE4. Design=for gripper, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE, Measuring principle=Hall magnetic, Ambient temperature=5 - 60 °C
| Design | for gripper |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFE |
| Measuring principle | Hall magnetic |
| Ambient temperature | 5 ... 60 °C |
| Short circuit strength | No |
| Polarity protected | No |
| Electrical connection | Cable with plugM8x14-pin |
| Cable length | 0.5 m |
| Material cable sheath | TPE-U(PUR) |
| Mounting type | Screwed on gripper |
| Product weight | 20 g |
| Material housing | PA |
