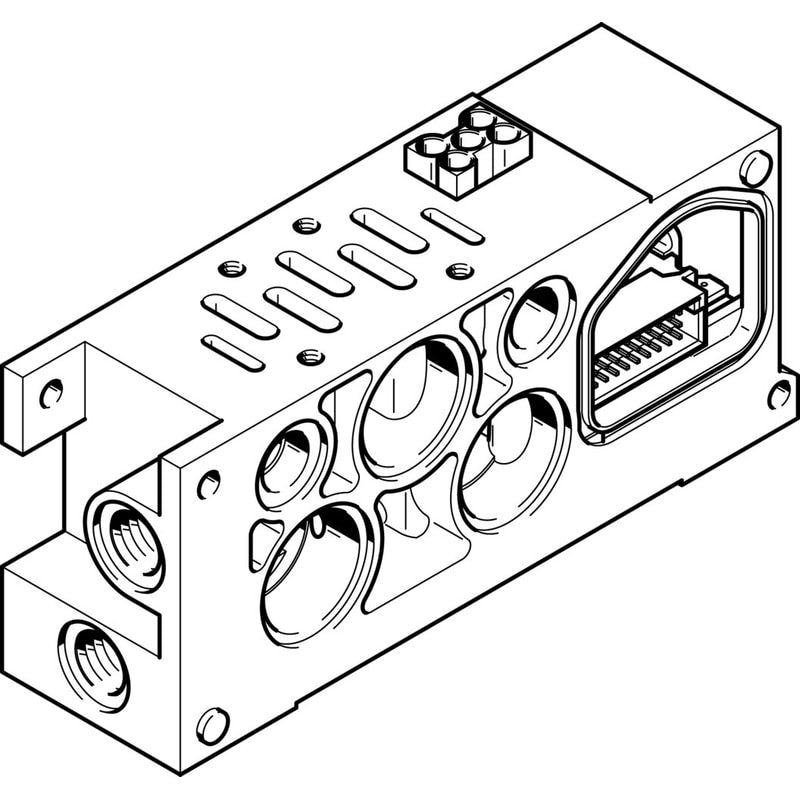

Manifold block
VIGM-04-D-3
18835
GTIN 4052568113094
Vendor Festo
Regular price
$529.46
Unit price
VIGM-04-D-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VIGM-04-D-3
Regular price
$529.46
Unit price
VIGM-04-D-3 is backordered and will ship as soon as it is back in stock.
manifold block VIGM-04-D-3 For valve terminal Based on the standard=ISO 5599-2, Max. number of valve positions=1, Operating pressure=-0,9 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Medium temperature=-10 - 60 °C
| Based on the standard | ISO 5599-2 |
|---|---|
| Max. number of valve positions | 1 |
| Operating pressure | '-0.9 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Medium temperature | '-10 ... 60 °C |
| Protection class | IP65 |
| Ambient temperature | '-10 ... 60 °C |
| Authorisation | UL - Recognized (OL) |
| Mounting method for sub-base | with through hole |
| Pneumatic connection, port 1 | G1 |
| Pneumatic connection, port 2 | G1/2 |
| Pneumatic connection, port 3 | G1 |
| Pneumatic connection, port 4 | G1/2 |
