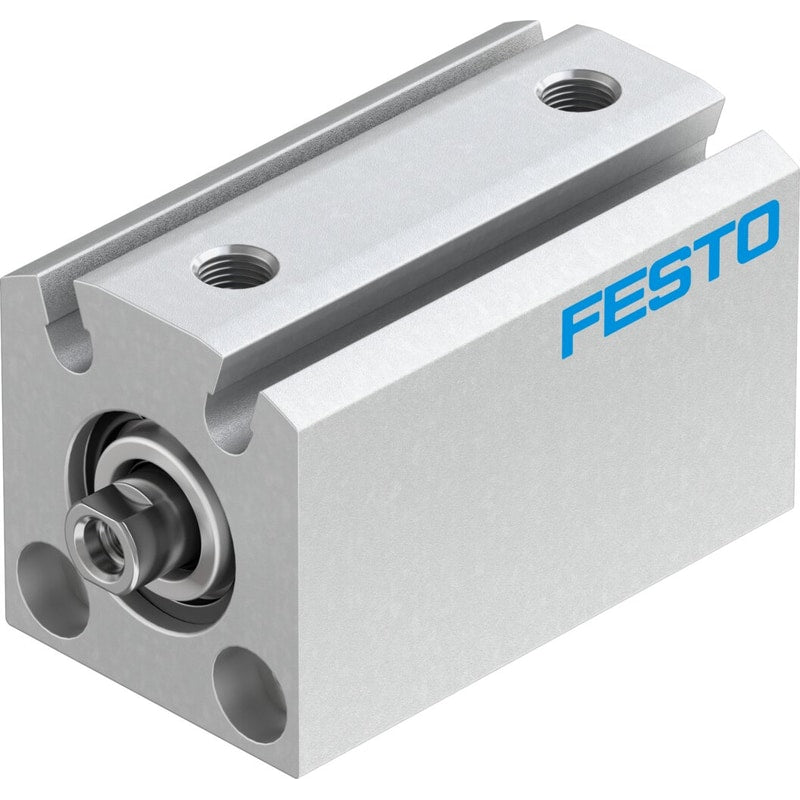

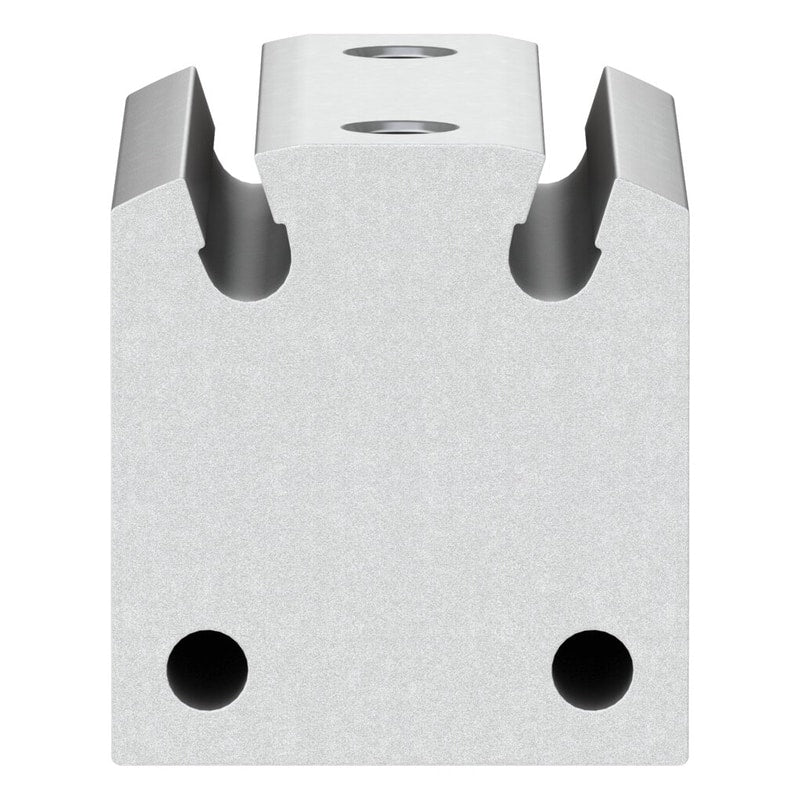

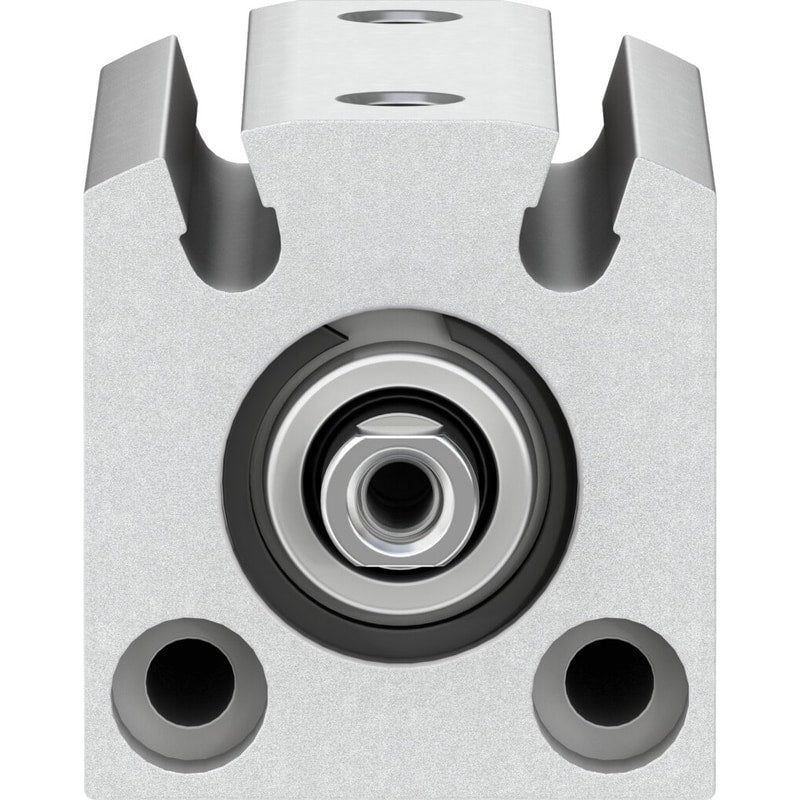

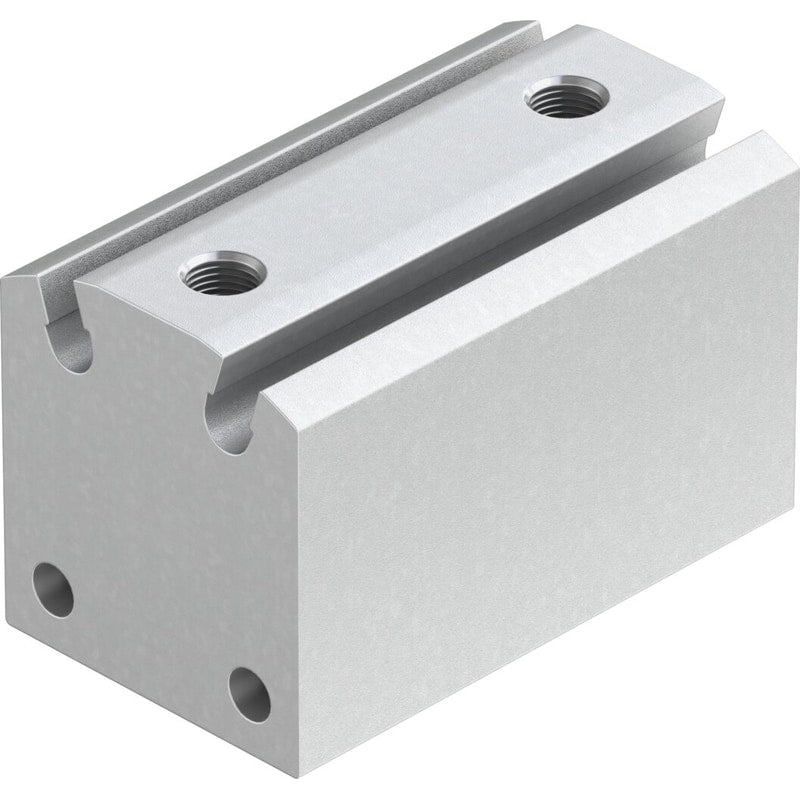

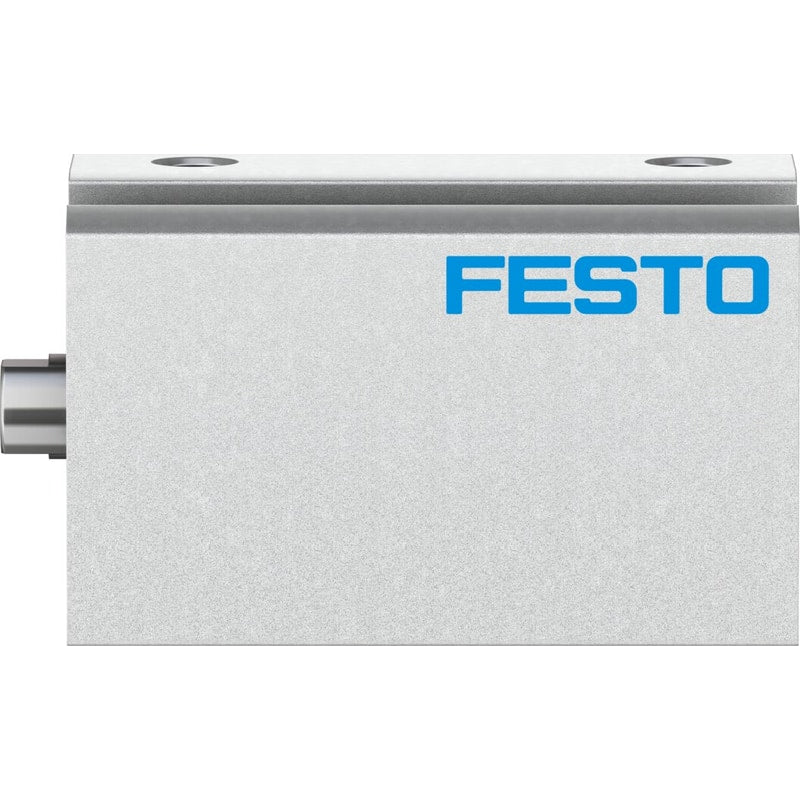

Short-stroke cylinder
ADVC-12-10-I-P-A
188089
GTIN 4052568076771
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 12 mm
- Theoretical force at 6 bar, advancing
- 68 N
- Stroke
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$64.97
Unit price
ADVC-12-10-I-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADVC-12-10-I-P-A
Regular price
$64.97
Unit price
ADVC-12-10-I-P-A is backordered and will ship as soon as it is back in stock.
short-stroke cylinder ADVC-12-10-I-P-A For proximity sensing, piston-rod end with female thread. Stroke=10 mm, Piston diameter=12 mm, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any, Mode of operation=double-acting
| Stroke | 10 mm |
|---|---|
| Piston diameter | 12 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Theoretical force at 6 bar, return Stroke | 51 N |
