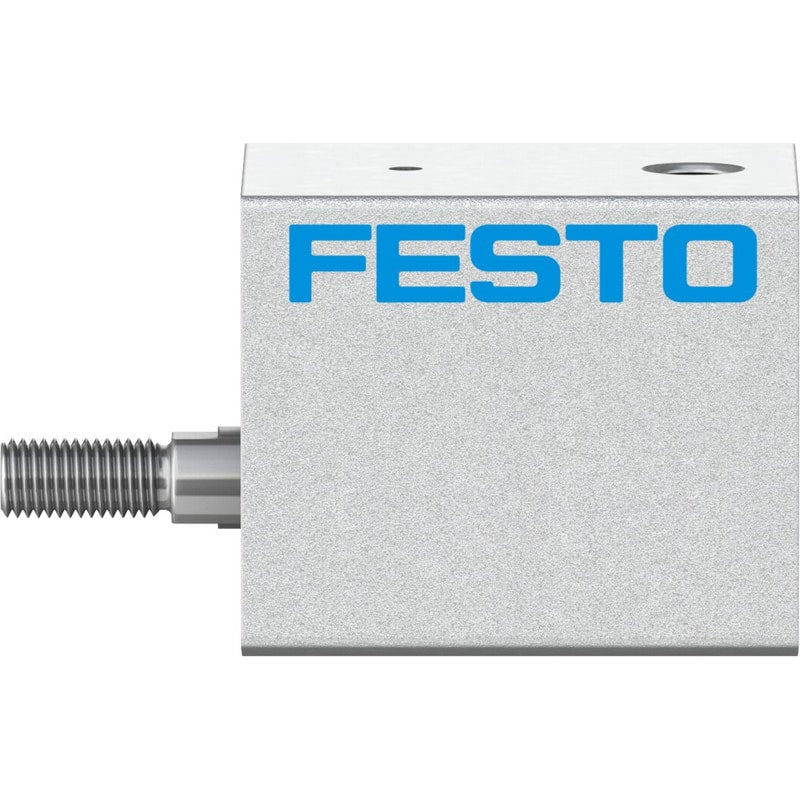

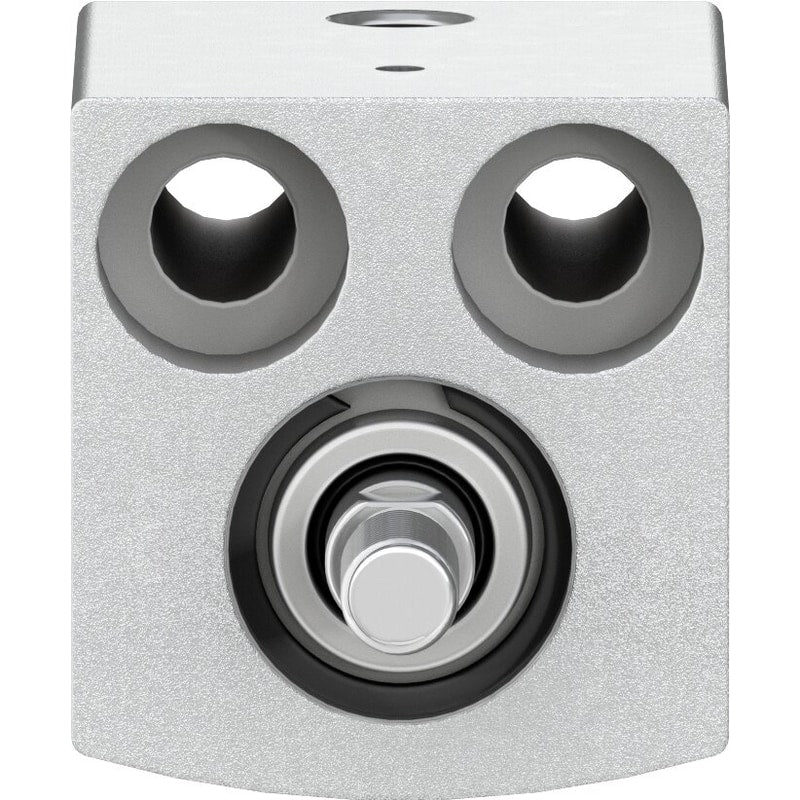

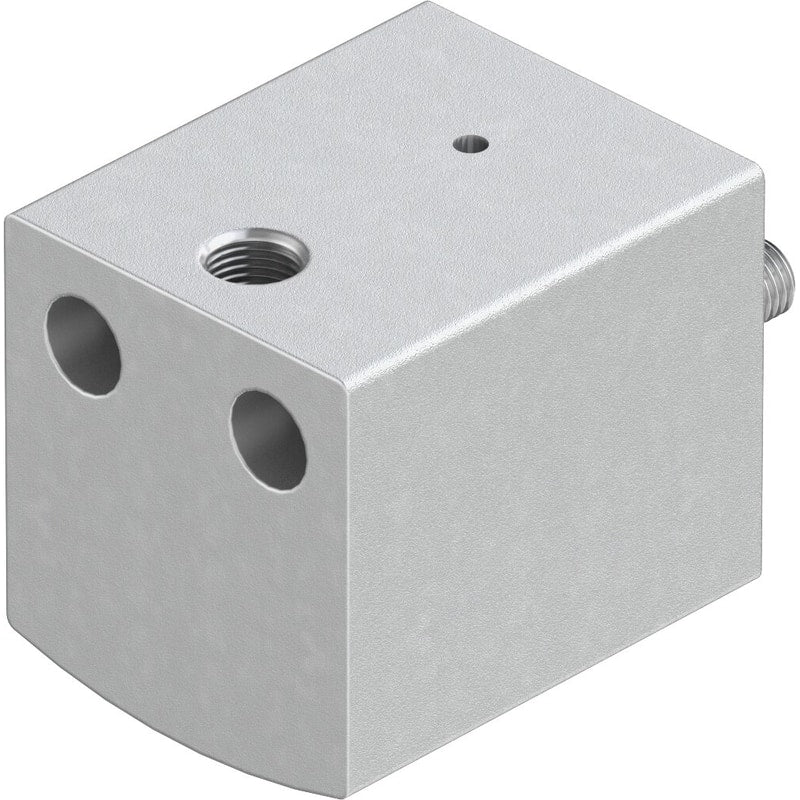

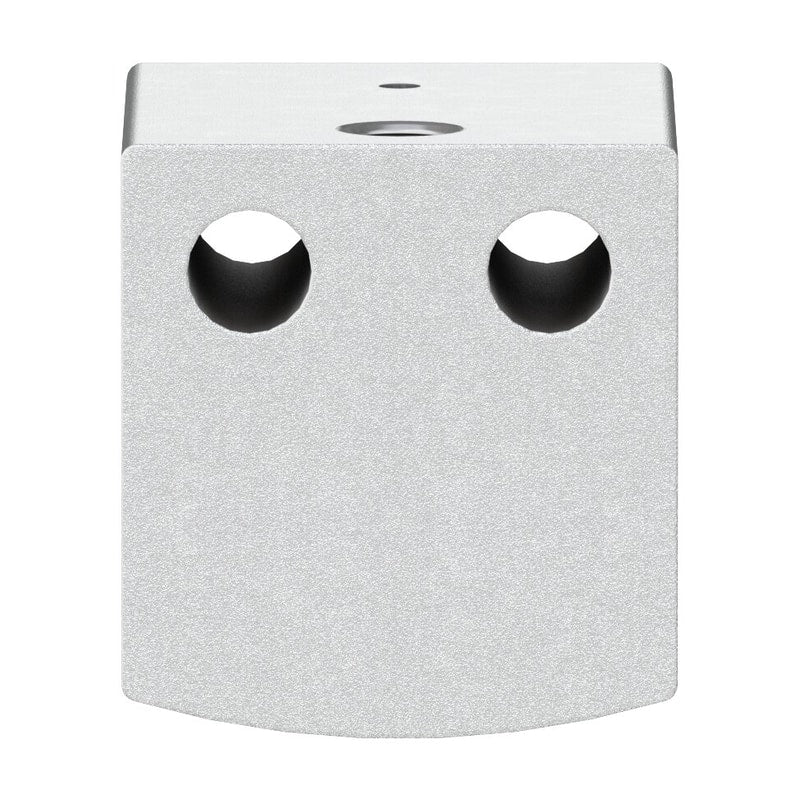

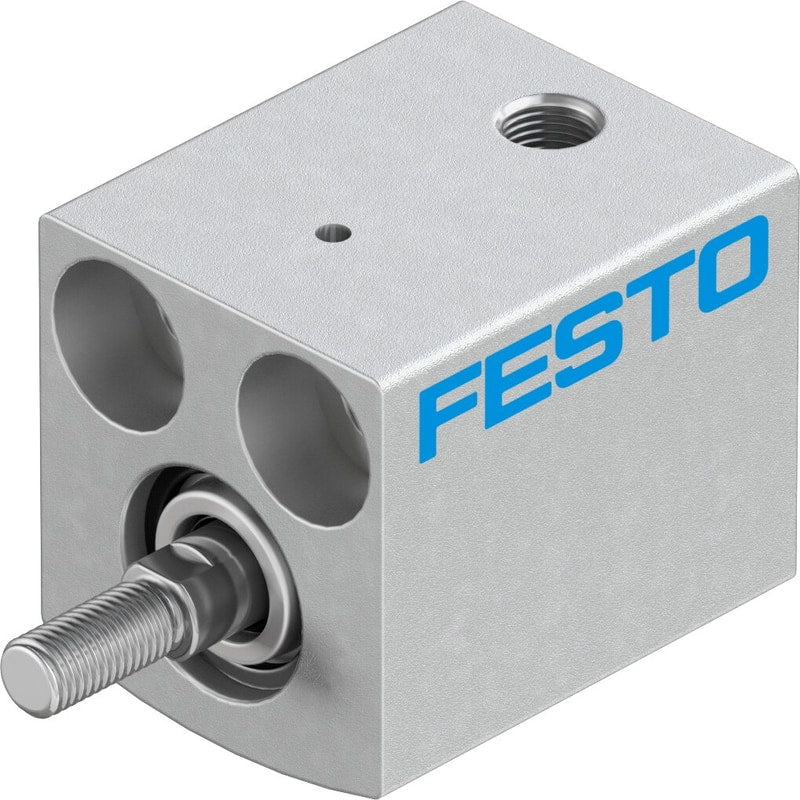

Short-stroke cylinder
AEVC-6-5-A-P
188062
GTIN 4052568076504
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 6 mm
- Theoretical force at 6 bar, advancing
- 13 N
- Stroke
- 5 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$50.18
Unit price
AEVC-6-5-A-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AEVC-6-5-A-P
Regular price
$50.18
Unit price
AEVC-6-5-A-P is backordered and will ship as soon as it is back in stock.
short-stroke cylinder AEVC-6-5-A-P No facility for sensing, piston-rod end with male thread. Stroke=5 mm, Piston diameter=6 mm, Spring return force, retracted=3 N, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 5 mm |
|---|---|
| Piston diameter | 6 mm |
| Spring return force, retracted | 3 N |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Design structure | PistonPiston rod |
| Position detection | No |
| Operating pressure | 2.5 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
