Plug socket

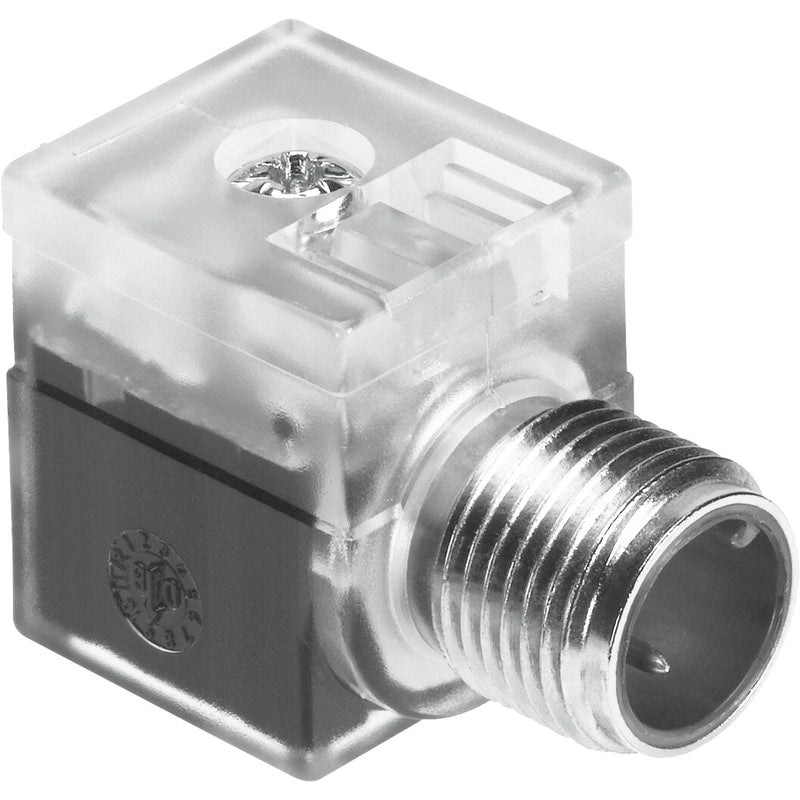

MSSD-EB-M12-MONO
188024
GTIN 4052568006624
Vendor Festo
- Degree of protection
- IP65
Regular price
$49.59
Unit price
MSSD-EB-M12-MONO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-EB-M12-MONO
Regular price
$49.59
Unit price
MSSD-EB-M12-MONO is backordered and will ship as soon as it is back in stock.
| Type code | MSSD-EB |
|---|---|
| Based on norm | EN 61076-2-101EN 61984EN 175301-803 |
| Switching position indication | LED |
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Electrical connection 1 | Socket, as per EN 175301-803, form C |
| Electrical connection 2 | Straight plug, M12x1, 2-pin, A-coded |
| DC operating voltage range | 12 V ... 24 V |
| Operating voltage range AC | 12 V ... 24 V |
| Current rating | 0.12 A |
| Surge resistance | 2.5 kV |
| Degree of protection | IP65 |
| Ambient temperature | -10 °C ... 50 °C |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
