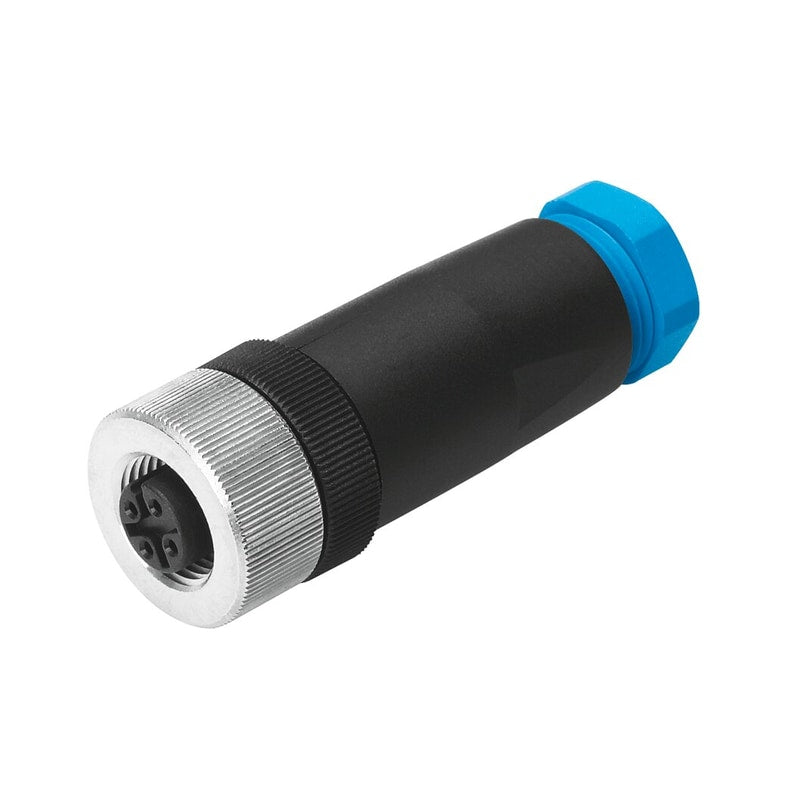

Cable socket
ASI-SD-PG-M12
18789
GTIN 4052568022419
Vendor Festo
Regular price
$31.21
Unit price
ASI-SD-PG-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ASI-SD-PG-M12
Regular price
$31.21
Unit price
ASI-SD-PG-M12 is backordered and will ship as soon as it is back in stock.
| Type code | ASI-SD |
|---|---|
| Type of mounting | With union nut |
| Product weight | 27.6 g |
| Electrical connection | Socket, straight4-pinScrew terminal |
| Operating voltage range AC | ≤ 125 V |
| Current rating | 0.125 |
| Connection cross section | 0.75 mm² |
| Degree of protection | IP67IP65 |
| Ambient temperature | -40 °C ... 85 °C |
| Note on materials | RoHS-compliant |
| Housing material | PA |
| Housing colour | Black |
| Material of union nut | Nickel-plated |
| Material of pin contacts | Bronze |
| Mounting position | Any |
| Cable fitting | Pg9 |
