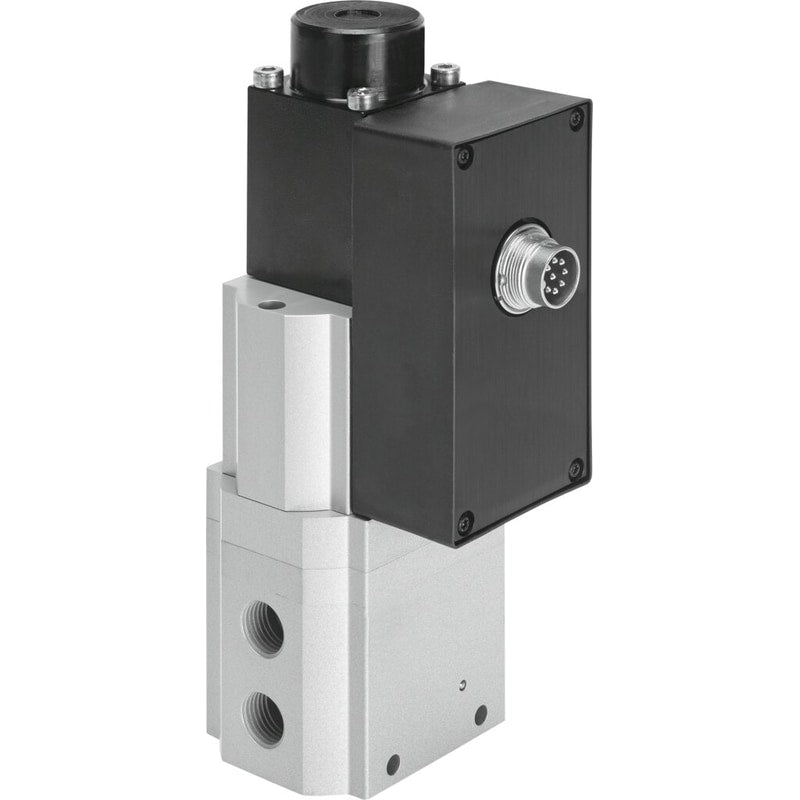

Proportional pressure control valve
MPPES-3-1/8-6-010
187352
GTIN 4052568014827
Vendor Festo
- Valve function
- 3-way proportional pressure control valve closed
- Pneumatic connection 1
- G1/8
- Pressure regulation range
- 0 bar - 6 bar
- Inlet pressure 1
- 7 bar - 8 bar
Regular price
$1,454.14
Unit price
MPPES-3-1/8-6-010 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MPPES-3-1/8-6-010
Regular price
$1,454.14
Unit price
MPPES-3-1/8-6-010 is backordered and will ship as soon as it is back in stock.
| KC characters | KC-EMV |
|---|---|
| Nominal width pressurization | 11 mm |
| Exhaust nominal width | 12 mm |
| Type code | MPPES |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Pilot-controlled piston control valve |
| Short-circuit protection | For all electrical connections |
| Safety instructions | MPPES safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar. |
| Symbol | 00995304 |
| Reverse polarity protection | for all electrical connections |
| Valve function | 3-way proportional pressure control valve closed |
| Operating pressure | ≤ 8 bar |
| Pressure regulation range | 0 bar ... 6 bar |
| Inlet pressure 1 | 7 bar ... 8 bar |
| Max. pressure hysteresis | 0.05 bar |
| Switching time off | 660 ms |
| On switching time | 230 ms |
| DC operating voltage range | 18 V ... 30 V |
| Residual ripple | 10 % |
| Setpoint/actual values | Current type 4–20 mA |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 2670 g |
| Electrical connection | 8-pinM16x0.75Plugas per DIN 45326Round design |
| Type of mounting | With through-hole |
