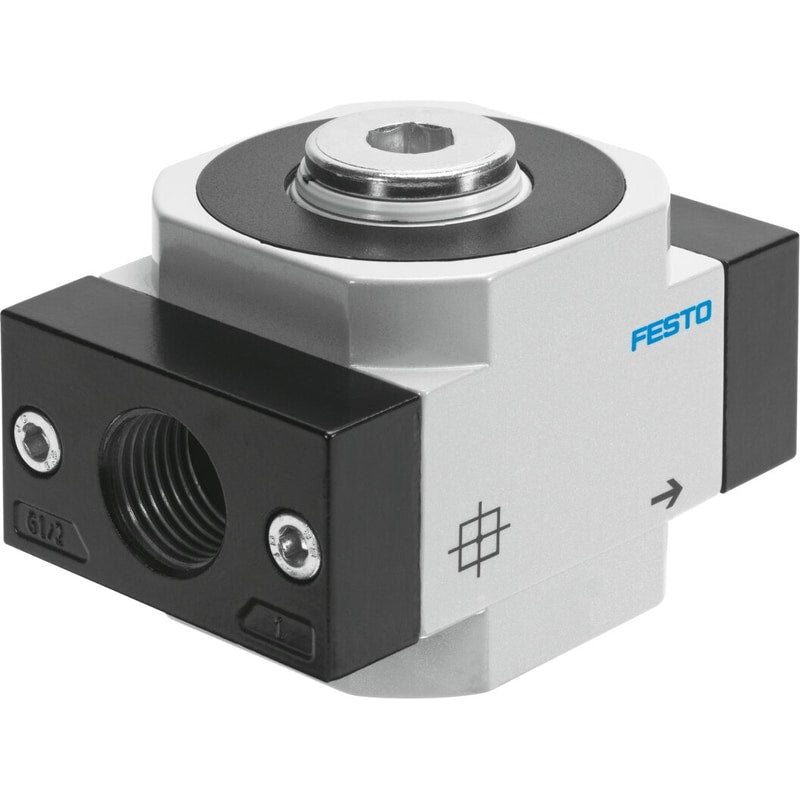

Branching module
FRM-1/2-D-MAXI
186524
GTIN 4052568014780
Vendor Festo
- Pneumatic connection 1
- G1/2
- Standard nominal flow rate in main flow direction 1 -> 2
- 11700 l/min
- Operating pressure
- 0 bar - 16 bar
Regular price
$138.77
Unit price
Branching module FRM-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRM-1/2-D-MAXI
Regular price
$138.77
Unit price
Branching module FRM-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
| Maritime classification | See certificate |
|---|---|
| Type code | FRM |
| Mounting position | Any |
| Design | Branching module |
| Symbol | 991510 |
| Operating pressure | 0 bar ... 16 bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 11700 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [7:-:-] |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 706 g |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G3/4 |
| Pneumatic connection 4 | G1/4 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Housing material | Die-cast zinc |
