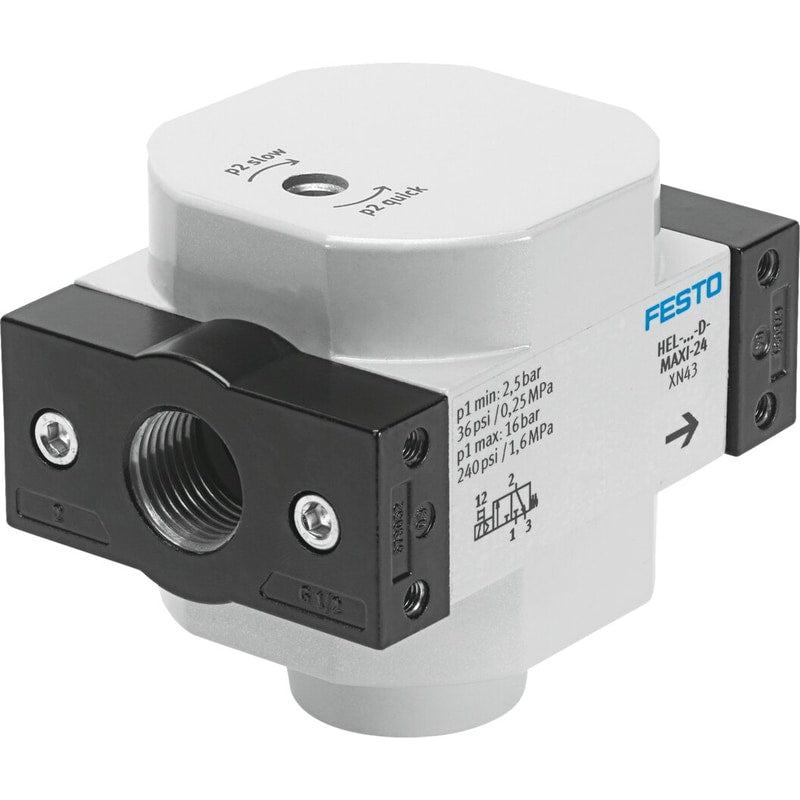

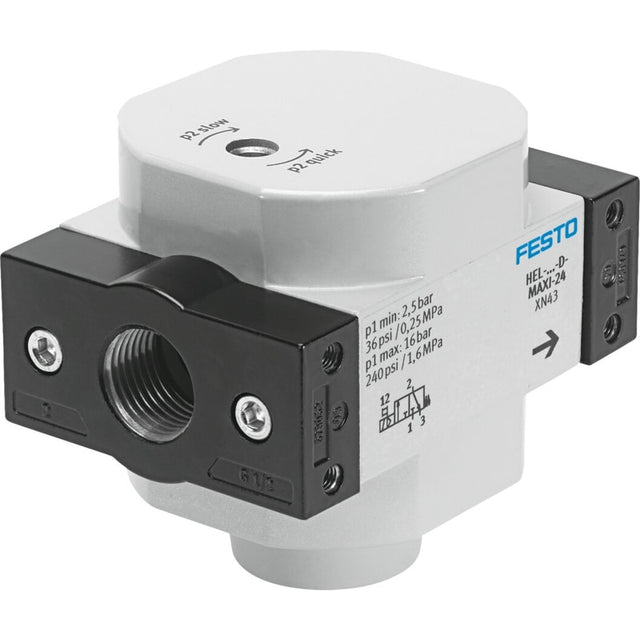

On/off valve
HEL-1/2-D-MAXI
186522
GTIN 4052568014773
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 5600 l/min
- Operating pressure
- 3 bar - 16 bar
- Actuation type
- Pneumatic
Regular price
$266.63
Unit price
On/off valve HEL-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HEL-1/2-D-MAXI
Regular price
$266.63
Unit price
On/off valve HEL-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
on-off valve HEL-1/2-D-MAXI Used in conjunction with service units for gradual pressure build-up. The valve function is equivalent to a 2/2-way valve. Exhaust-air function=throttleable, Type of actuation=pneumatic, Sealing principle=soft, Assembly position=Any, Manual override=None
| Exhaust-air function | throttleable |
|---|---|
| Type of actuation | pneumatic |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Type of piloting | direct |
| Flow direction | non reversible |

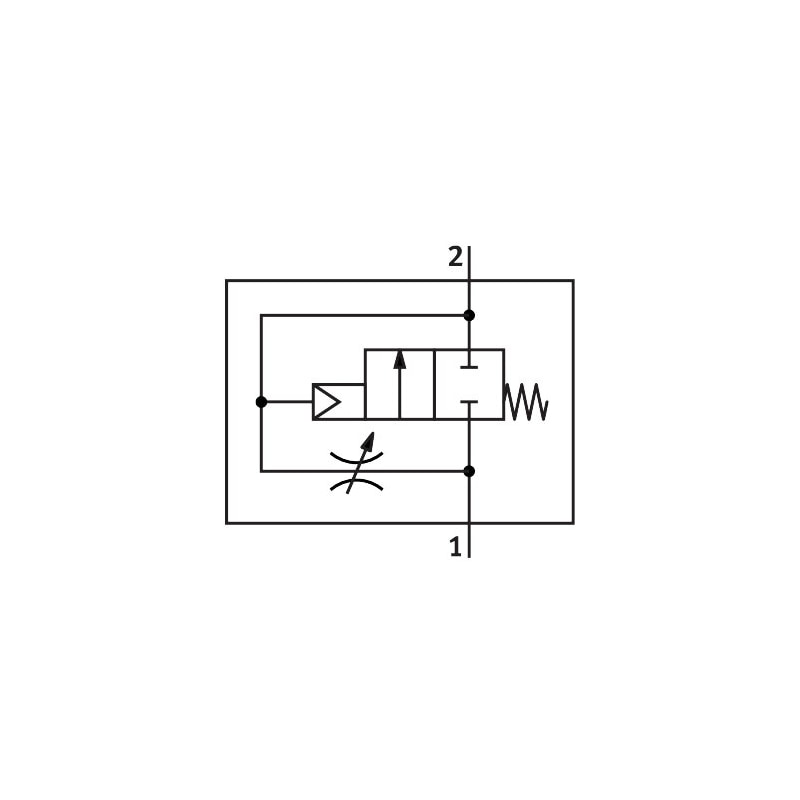

| Valve function | 2/2 closed, monostable |
| Operating pressure | 3 ... 16 bar |
| b value | 0.36 |
| C value | 26.9 l/sbar |
