On/off valve
HEL-1/4-D-MIDI
186521
GTIN 4052568147174
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 2600 l/min
- Operating pressure
- 3 bar - 16 bar
- Actuation type
- Pneumatic
Regular price
$207.39
Unit price
On/off valve HEL-1/4-D-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HEL-1/4-D-MIDI
Regular price
$207.39
Unit price
On/off valve HEL-1/4-D-MIDI is backordered and will ship as soon as it is back in stock.
on-off valve HEL-1/4-D-MIDI Used in conjunction with service units for gradual pressure build-up. The valve function is equivalent to a 2/2-way valve. Exhaust-air function=throttleable, Type of actuation=pneumatic, Sealing principle=soft, Assembly position=Any, Manual override=None
| Exhaust-air function | throttleable |
|---|---|
| Type of actuation | pneumatic |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Type of piloting | direct |
| Flow direction | non reversible |

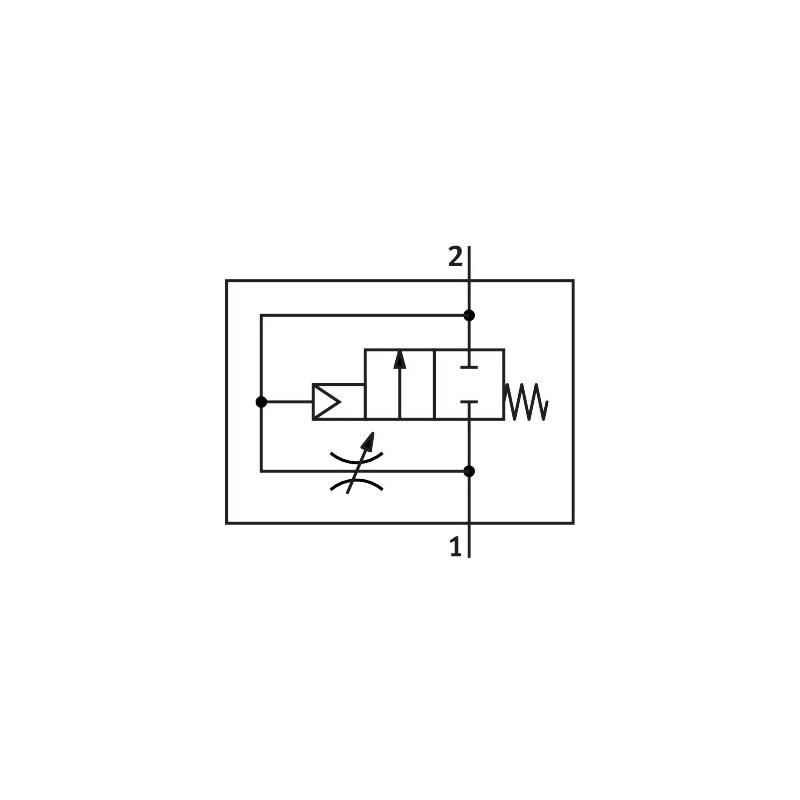

| Valve function | 2/2 closed, monostable |
| Operating pressure | 3 ... 16 bar |
| b value | 0.59 |
| C value | 9 l/sbar |
