Filter regulator
LFR-1/2-D-MAXI
186489
GTIN 4052568014728
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 9400 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$557.62
Unit price
Filter regulator LFR-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-1/2-D-MAXI
Regular price
$557.62
Unit price
Filter regulator LFR-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.

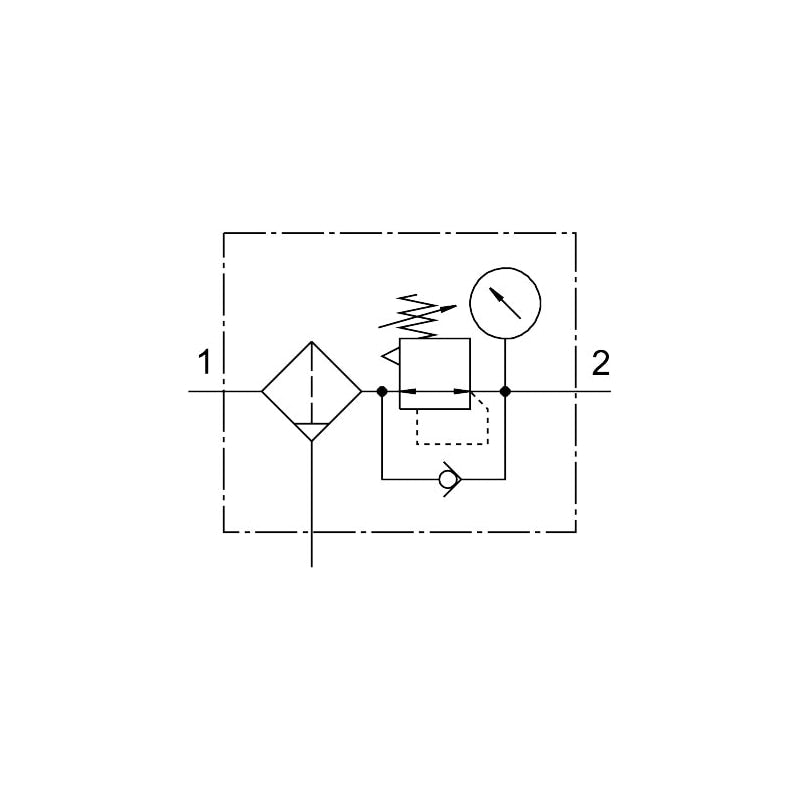

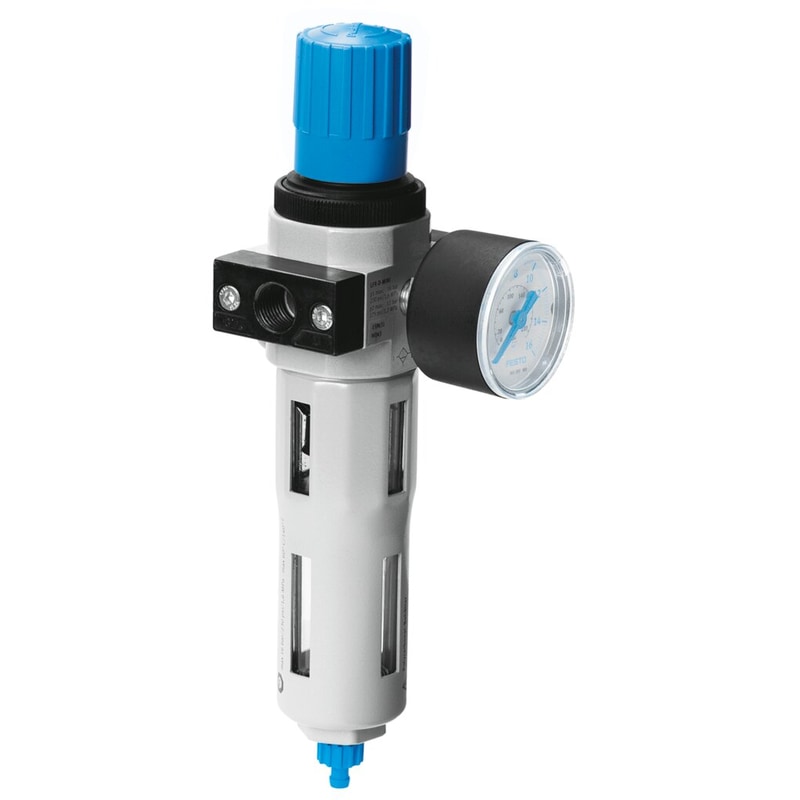

filter regulator LFR-1/2-D-MAXI With metal bowl guard and pressure gauge. With manual condensate drain. Size=Maxi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | Maxi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | manual rotary |
| Design structure | Filter regulator with pressure gauge |
| Max. condensate volume | 80 cm3 |
| Bowl guard | Metal bowl guard |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 ... 16 bar |
| Pressure regulation range | 0.5 ... 12 bar |
| Max. pressure hysteresis | 0.4 bar |
