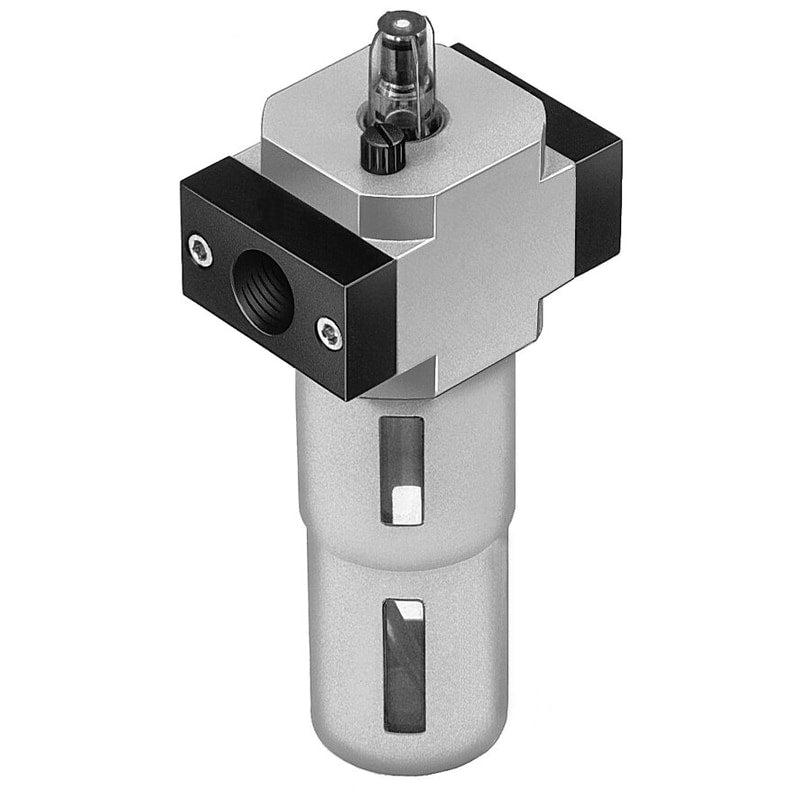

Air line lubricator
LOE-1/2-D-MAXI
186480
GTIN 4052568146825
Vendor Festo
- Pneumatic connection 1
- G1/2
- Normal nominal flow rate (normalized to DIN 1343)
- 8300 l/min
- Operating pressure
- 0 bar - 16 bar
- Minimum flow rate for lubricator function
- 10 l/min
Regular price
$316.11
Unit price
Air line lubricator LOE-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LOE-1/2-D-MAXI
Regular price
$316.11
Unit price
Air line lubricator LOE-1/2-D-MAXI is backordered and will ship as soon as it is back in stock.
lubricator LOE-1/2-D-MAXI With metal bowl guard. Size=Maxi, Series=D, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=190 cm3
| Size | Maxi |
|---|---|
| Series | D |
| Assembly position | Vertical +/- 5° |
| Design structure | proportional standard mist lubricator |
| Max. oil capacity | 190 cm3 |
| Bowl guard | Metal bowl guard |
| Operating pressure | 0 ... 16 bar |
| Minimum flow rate for lubricator function | 10 l/min |
| Standard nominal flow rate | 8,300 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
