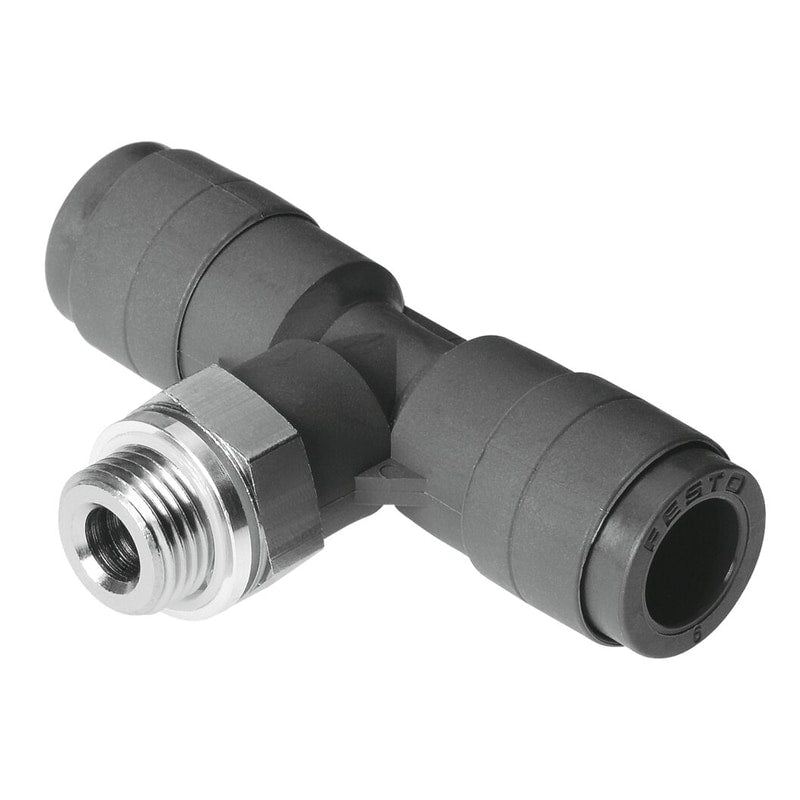

Push-in T-fitting
QST-V0-G1/8-8
186337
GTIN 4052568041236
Vendor Festo
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 6 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
Regular price
$21.21
Unit price
QST-V0-G1/8-8 Push-in T-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QST-V0-G1/8-8
Regular price
$21.21
Unit price
QST-V0-G1/8-8 Push-in T-fitting is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 6mm |
| Material fire test | UL94 V-0 (housing) |
| Type of seal on screwed trunnion | Sealing ring |
| Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -0.095MPa |
| Operating pressure for entire temperature range | -0.95bar |
| Operating pressure for entire temperature range | -13.775psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0°C |
| Nominal tightening torque | 7Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 21g |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Black |
| Material of screwed trunnion | Brass, nickel-plated |
| Note on materials | RoHS-compliant |
| Housing material | PBT |
| Material of threaded seal | Aluminum |
| Releasing ring material | PBT |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel |
