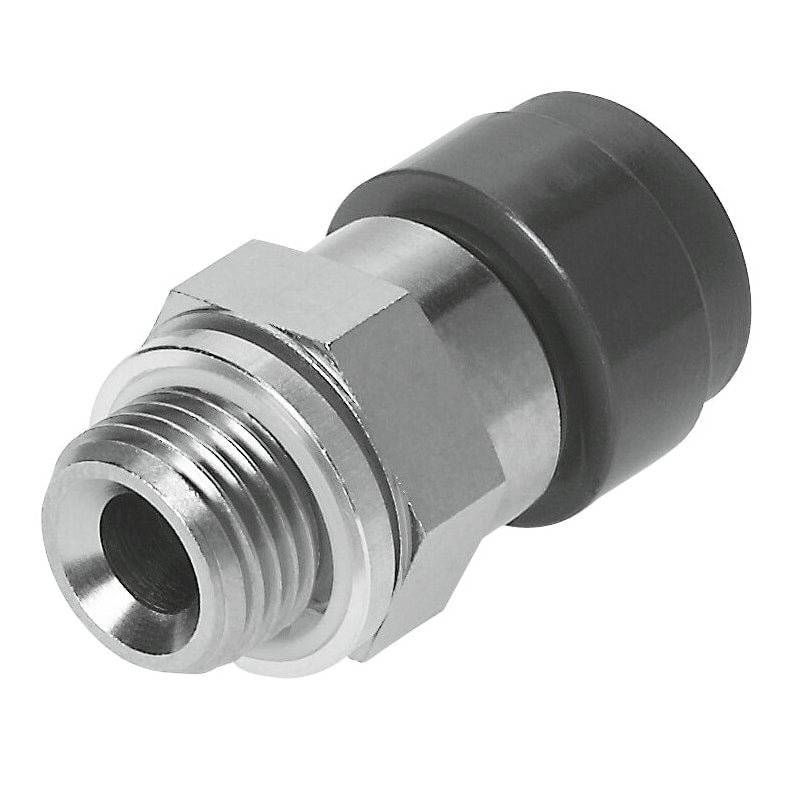

Push-in fitting
QS-V0-G1/2-10
186323
GTIN 4052568041090
Vendor Festo
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 9 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
Regular price
$17.45
Unit price
QS-V0-G1/2-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QS-V0-G1/2-10
Regular price
$17.45
Unit price
QS-V0-G1/2-10 is backordered and will ship as soon as it is back in stock.
push-in fitting QS-V0-G1/2-10 male thread with external hexagon. Size=Standard, Nominal size=6,7 mm, Material fire test=(* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud=Sealing ring, Design structure=Push/pull principle
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 6.7 mm |
| Material fire test | UL94 V-0 (housing)UL94 V-0 (releasing ring) |
| Type of seal on screw-in stud | Sealing ring |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | 0 ... 60 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 26 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 53 g |
| connection 1 | G1/2 |
| connection 2 | For tubing outside diameter 10 mm |
| Colour of release ring | Black |
| Material of threaded plug | Nickel-plated brass |
| Materials note | Conforms to RoHS |
