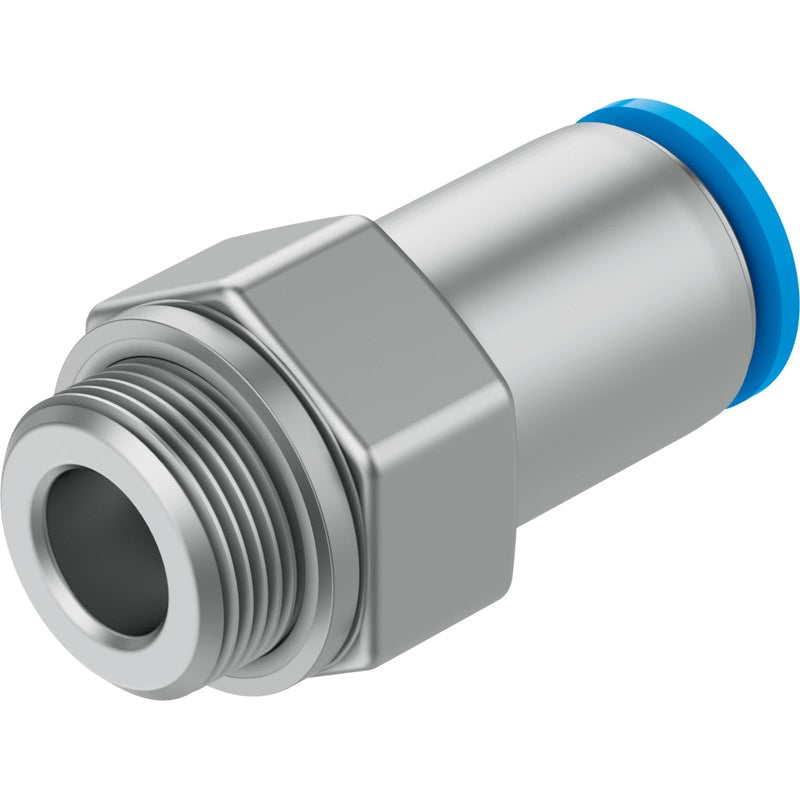

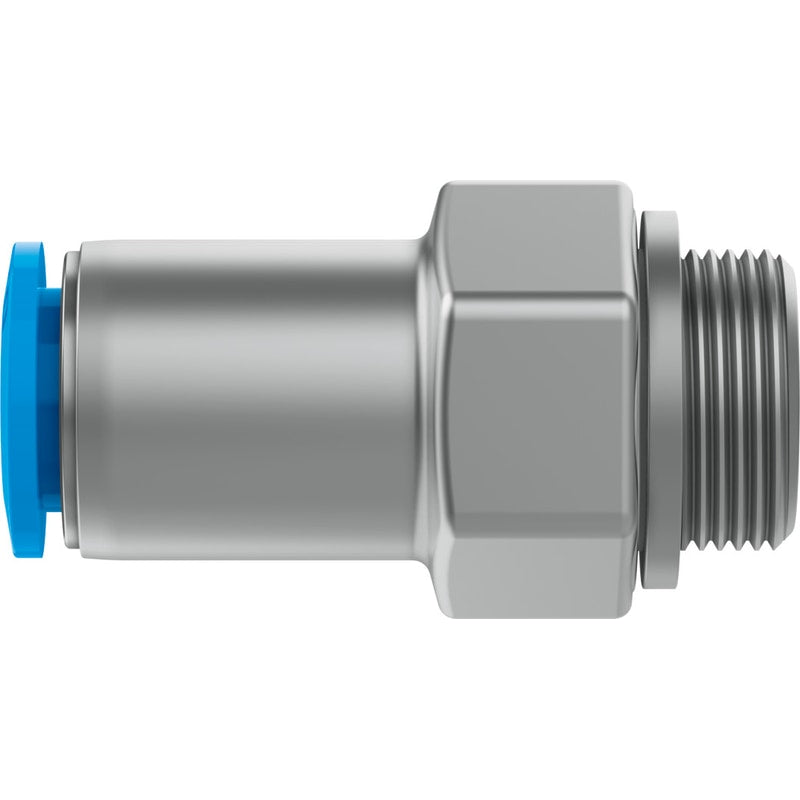

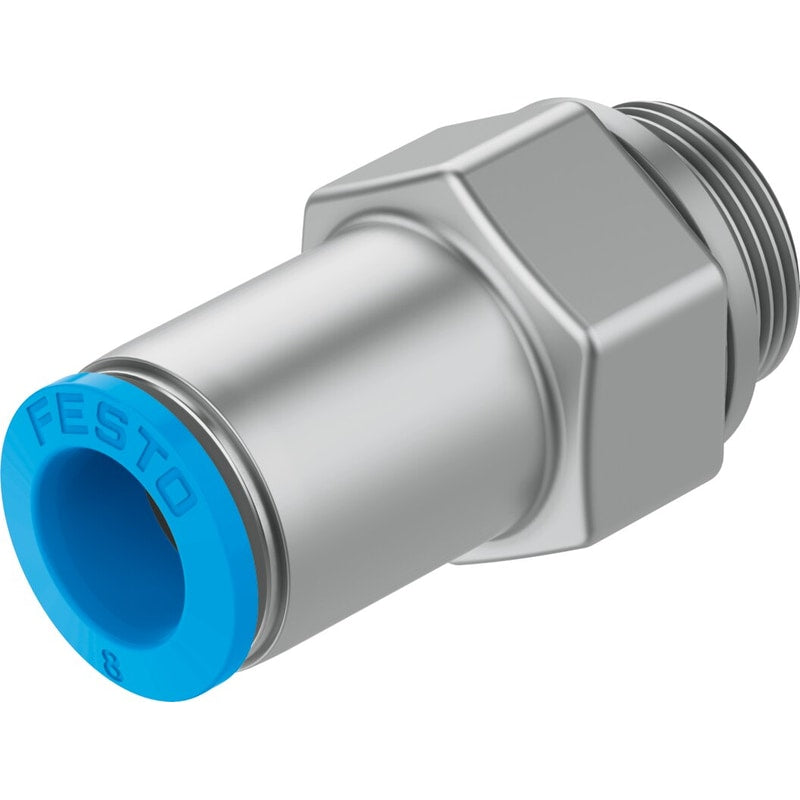

Push-in fitting, self-sealing
QSK-G1/4-8
186298
GTIN 4052568040840
Vendor Festo
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 4.3 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
Regular price
$7.80
Unit price
QSK-G1/4-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSK-G1/4-8
Regular price
$7.80
Unit price
QSK-G1/4-8 is backordered and will ship as soon as it is back in stock.
push-in fitting, self-sealing QSK-G1/4-8 male thread with external hexagon. Size=Standard, Nominal size=4,3 mm, Approved tubing type=(* PAN-, * PAN-MF-, * PAN-R-, * PAN-V0-, * PEN-, * PFAN-, * PLN-, * PTFEN-, * PUN-, * PUN-CM-, * PUN-DUO-, * PUN-H-, * PUN-H-DUO-, * PUN-S-, * PUN-S-DUO-, * PUN-V0-), Tubing insertion depth=18,3 mm, Type of seal on screw-in stud=Sealing ring
| Fitting Type | Male Straight w/ Shut-Off |
|---|---|
| Size | Standard |
| Nominal size | 4.3 mm |
| Approved tubing type | PAN-PAN-MF-PAN-R-PAN-V0-PEN-PFAN-PLN-PTFEN-PUN-PUN-CM-PUN-DUO-PUN-H-PUN-H-DUO-PUN-S-PUN-S-DUO-PUN-V0- |
| Tubing insertion depth | 18.3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 15 Nm |
| Nominal tightening torque | 9 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 30 g |
