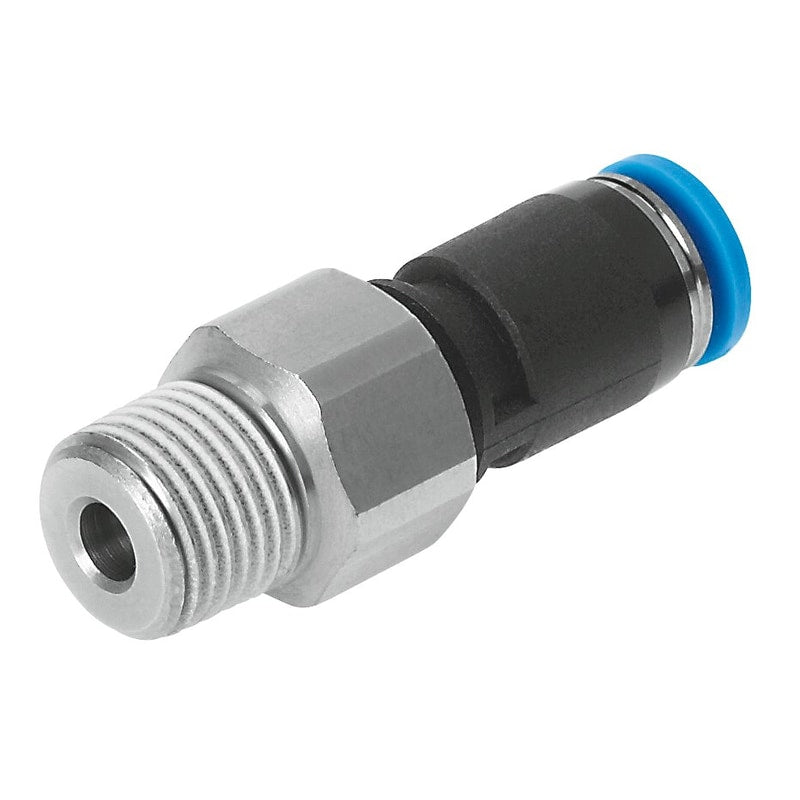

Push-in fitting, rotatable
QSR-G3/8-8
186281
GTIN 4052568076061
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 5 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
Regular price
$29.43
Unit price
QSR-G3/8-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSR-G3/8-8
Regular price
$29.43
Unit price
QSR-G3/8-8 is backordered and will ship as soon as it is back in stock.
rotary push-in fitting QSR-G3/8-8 360° rotatable, with ball bearing, male thread with external hexagon. Size=Standard, Nominal size=5 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Rotary Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Max. speed | 400 1/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 0 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 25 Nm |
| Max. radial moment | 0.015 Nm |
| Nominal tightening torque | 15.5 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 40 g |
