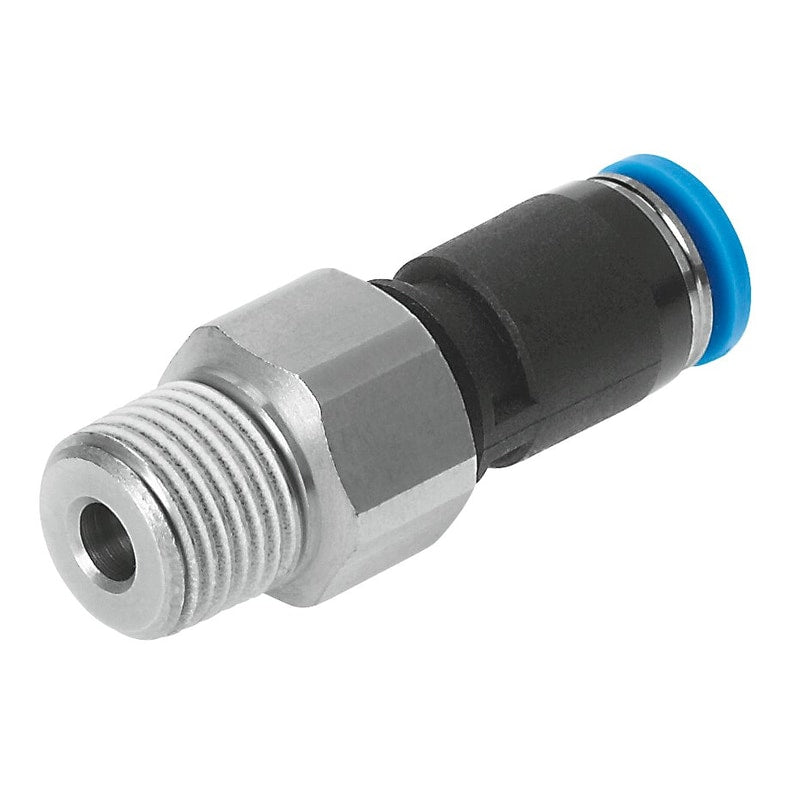

QSR-G1/4-6
Regular price
$21.49
Unit price
QSR-G1/4-6 is backordered and will ship as soon as it is back in stock.
rotary push-in fitting QSR-G1/4-6 360° rotatable, with ball bearing, male thread with external hexagon. Size=Standard, Nominal size=3,4 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Rotary Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 3.4 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Max. speed | 500 1/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 0 ... 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 15 Nm |
| Max. radial moment | 0.012 Nm |
| Nominal tightening torque | 9 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 24 g |
