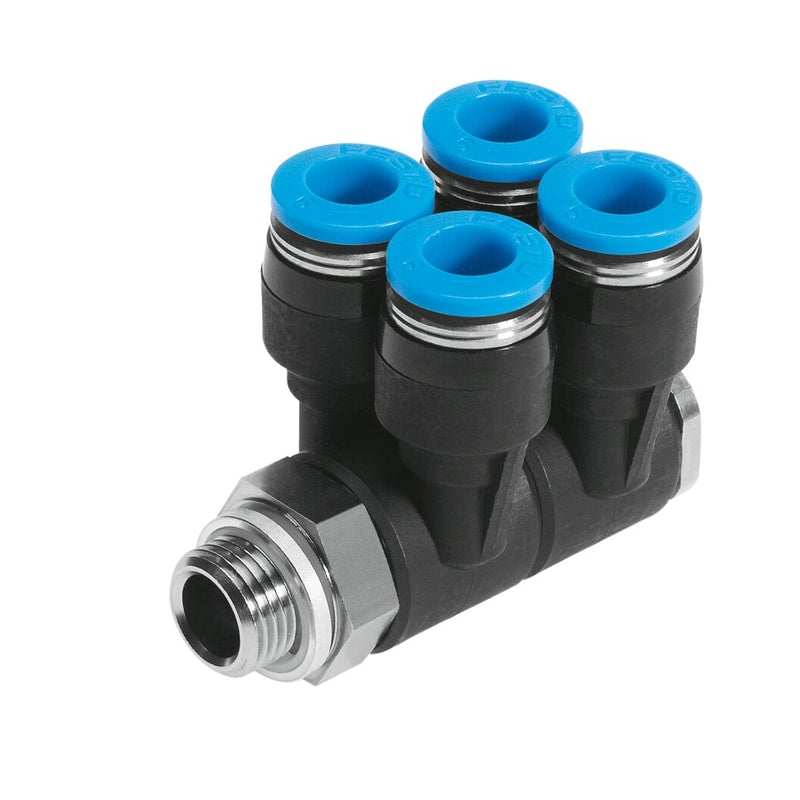

Multiple distributor
QSLV4-G1/8-4
186243
GTIN 4052568040451
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- No. of supply lines
- 1
- No. of outlets
- 4
Regular price
$14.74
Unit price
QSLV4-G1/8-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSLV4-G1/8-4
Regular price
$14.74
Unit price
QSLV4-G1/8-4 is backordered and will ship as soon as it is back in stock.
multiple distributor QSLV4-G1/8-4 4-fold, 360° orientable. Size=Standard, Nominal size=2,3 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Double Branch Male Banjo |
|---|---|
| Size | Standard |
| Nominal size | 2.3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 7 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 30 g |
| Number of outputs | 4 |
| Number of supply lines | 1 |
| connection 1 | Male thread G1/8 |
