QSTF-G1/2-12
186208
Vendor Festo
Regular price
$15.03
Unit price
QSTF-G1/2-12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSTF-G1/2-12
Regular price
$15.03
Unit price
QSTF-G1/2-12 is backordered and will ship as soon as it is back in stock.

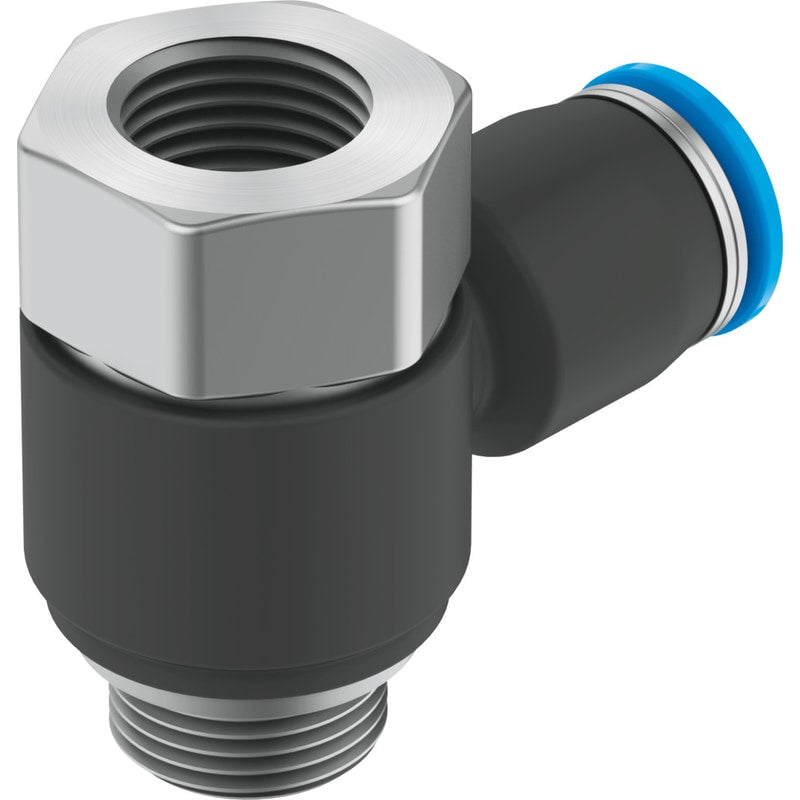

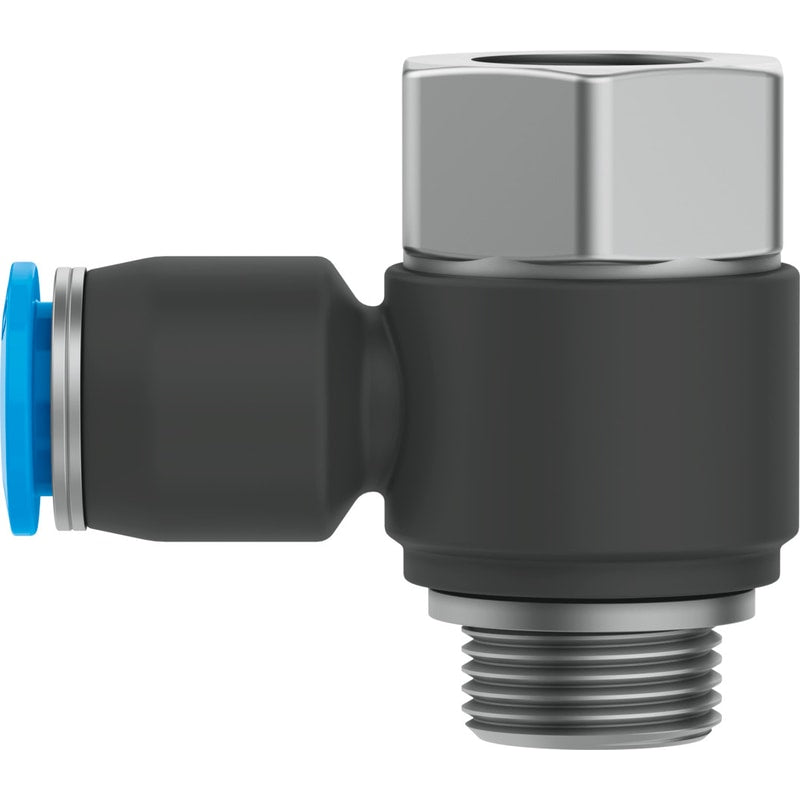

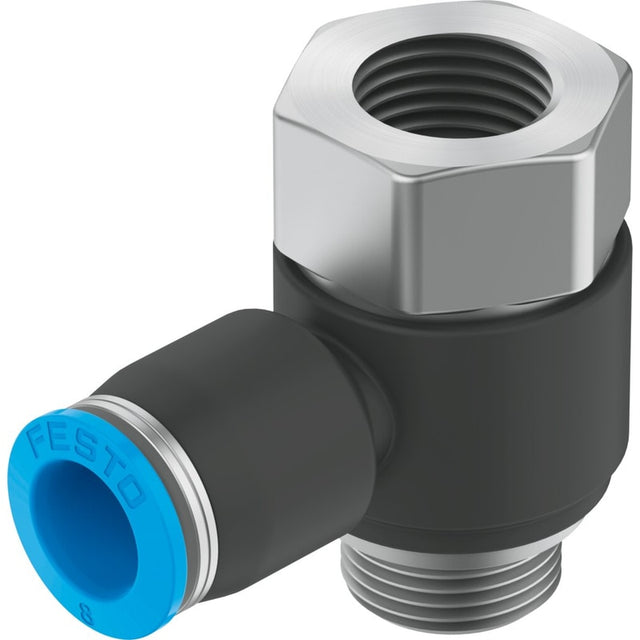

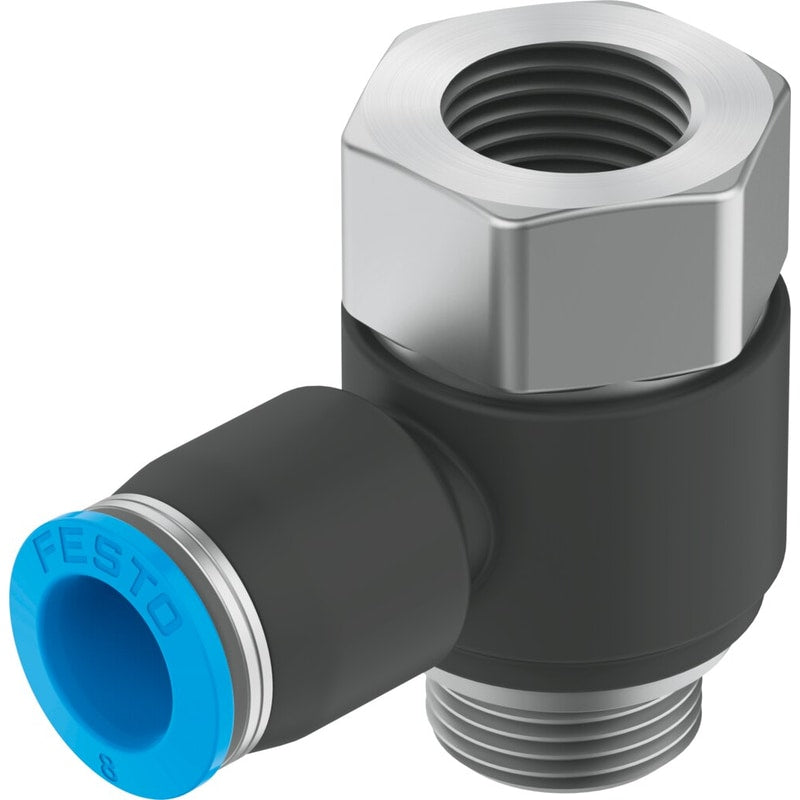

push-in T-fitting QSTF-G1/2-12 360° orientable, male and female thread with external hexagon. Size=Standard, Nominal size=7 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Female Run Tee |
|---|---|
| Size | Standard |
| Nominal size | 7 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 26 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 99 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1 | Male thread G1/2 |
