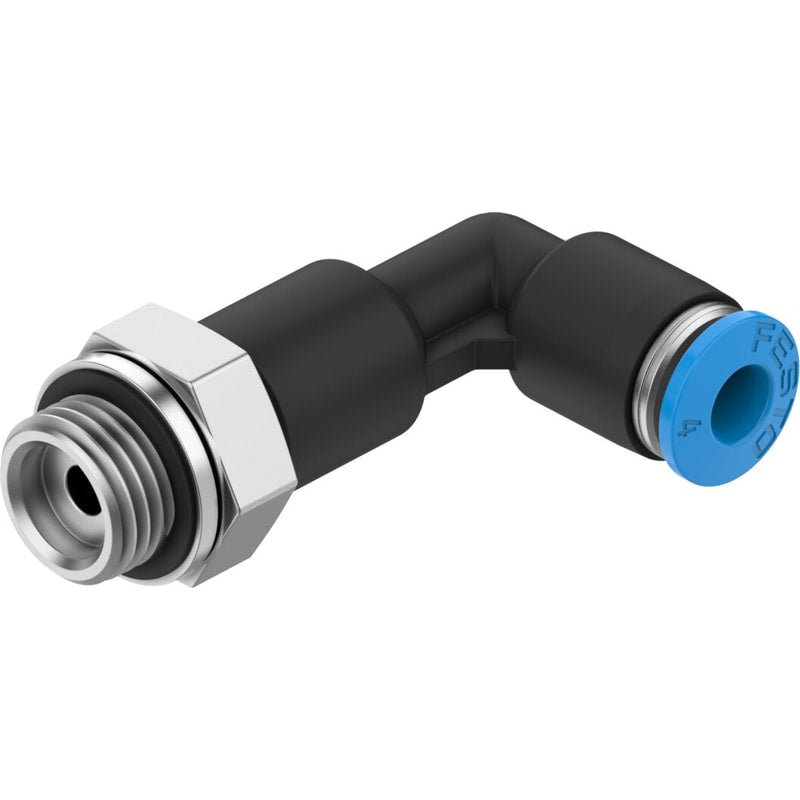

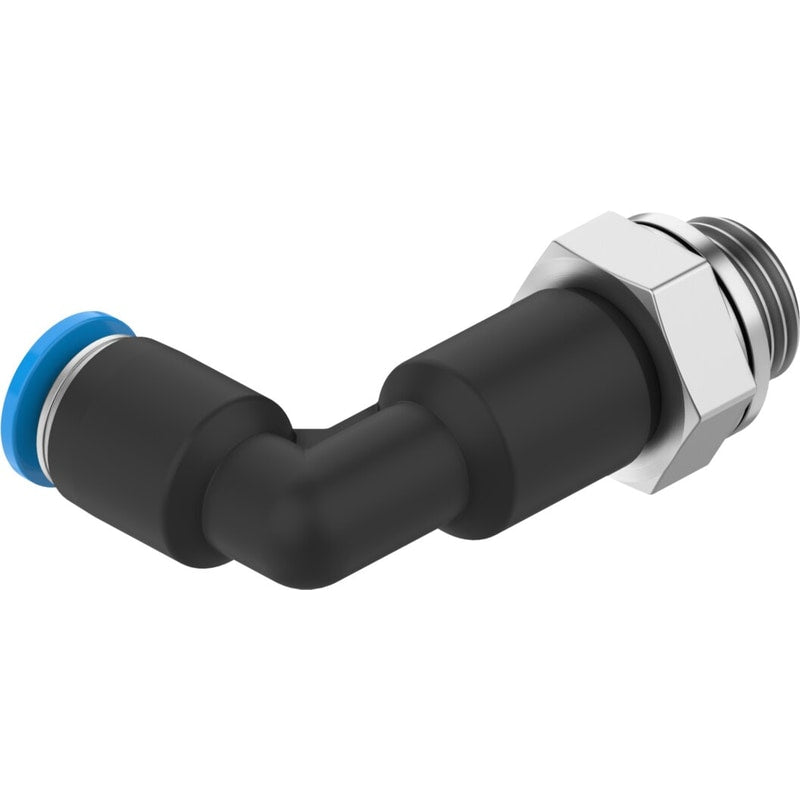

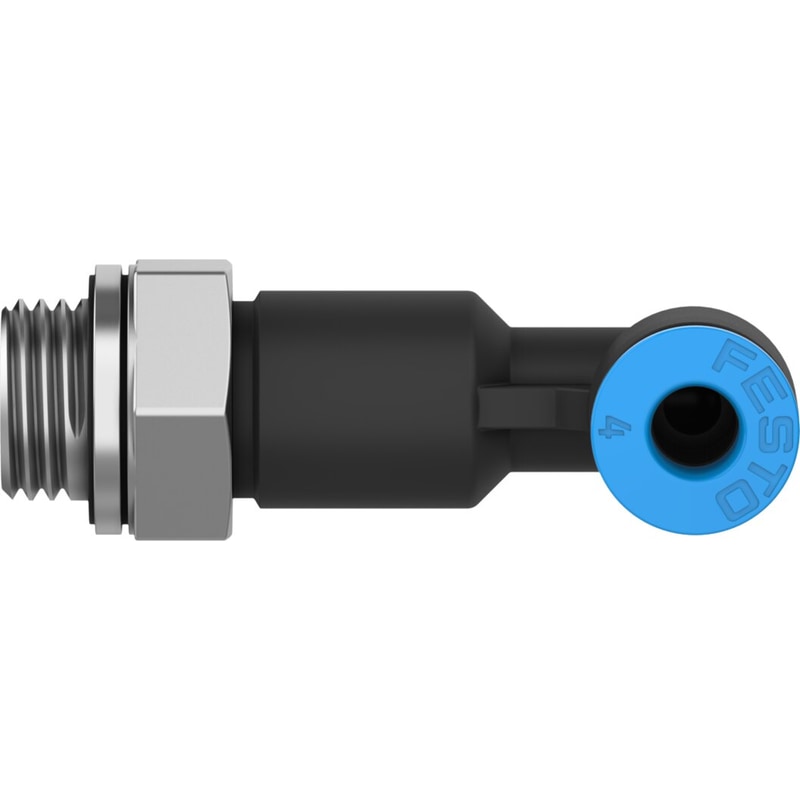

Push-in L-fitting, long
QSLL-G1/2-12
186136
GTIN 4052568039417
Vendor Festo
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 10.3 mm
Regular price
$15.75
Unit price
QSLL-G1/2-12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSLL-G1/2-12
Regular price
$15.75
Unit price
QSLL-G1/2-12 is backordered and will ship as soon as it is back in stock.
push-in L-fitting, long QSLL-G1/2-12 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=10,3 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Long Elbow |
|---|---|
| Size | Standard |
| Nominal size | 10.3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 26 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 75 g |
| connection 1 | Male thread G1/2 |
| connection 2 | 12mm outside diameter, for tubing |
| Colour of release ring | blue |
