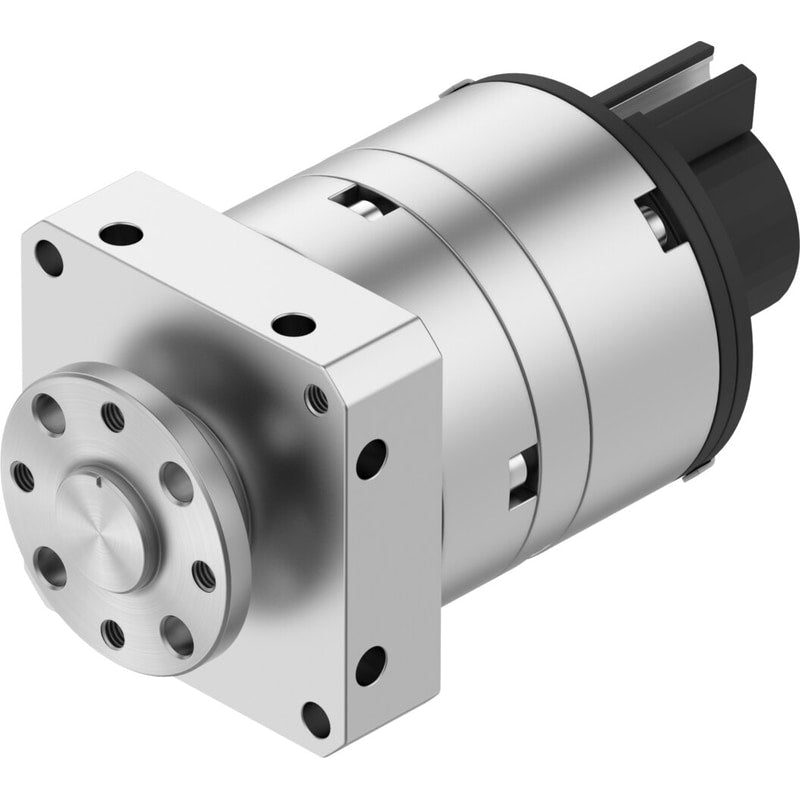

Rotary actuator
DSM-10-240-P-A-FF-FW
185947
GTIN 4052568146368
Vendor Festo
- Size
- 10
- Theoretical torque at 6 bar
- 0.85 Nm
- Swivel angle
- 0 deg - 200 deg
- Position sensing
- For proximity sensor
Regular price
$729.47
Unit price
DSM-10-240-P-A-FF-FW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSM-10-240-P-A-FF-FW
Regular price
$729.47
Unit price
DSM-10-240-P-A-FF-FW is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSM-10-240-P-A-FF-FW with flanged shaft, fixed stop and position sensing Size=10, Cushioning angle=0 deg, Rotation angle adjustment range=0 - 200 deg, Swivel angle=0 - 200 deg, Assembly position=Any
| Size | 10 |
|---|---|
| Cushioning angle | 0 deg |
| Rotation angle adjustment range | 0 ... 200 deg |
| Swivel angle | 0 ... 200 deg |
| Assembly position | Any |
| Fine adjustment | '-5 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Operating pressure | 2.5 ... 8 bar |
| Max. swivel frequency at 6 bar | 2 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
