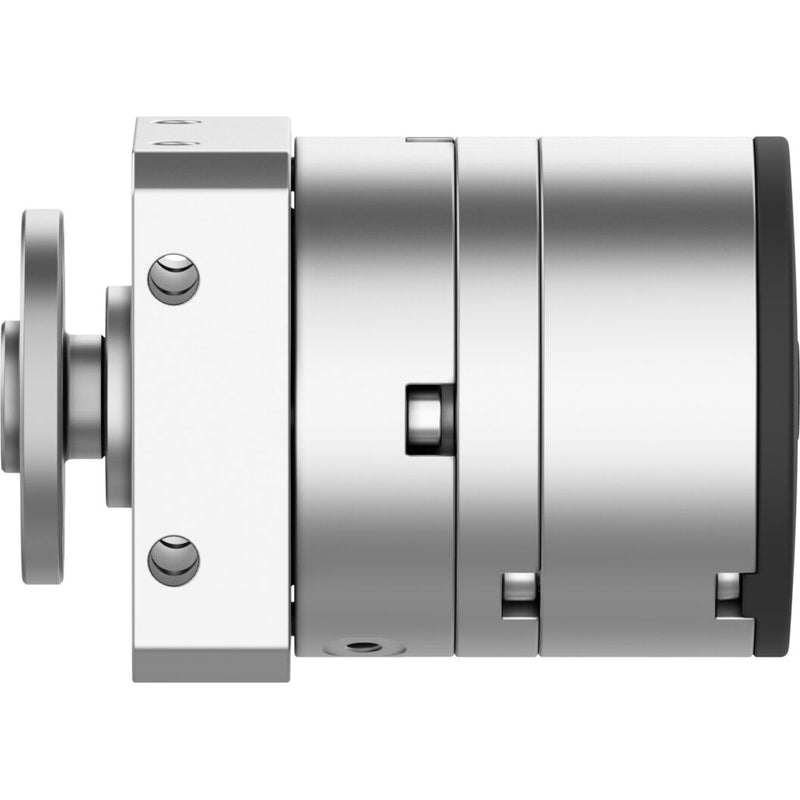

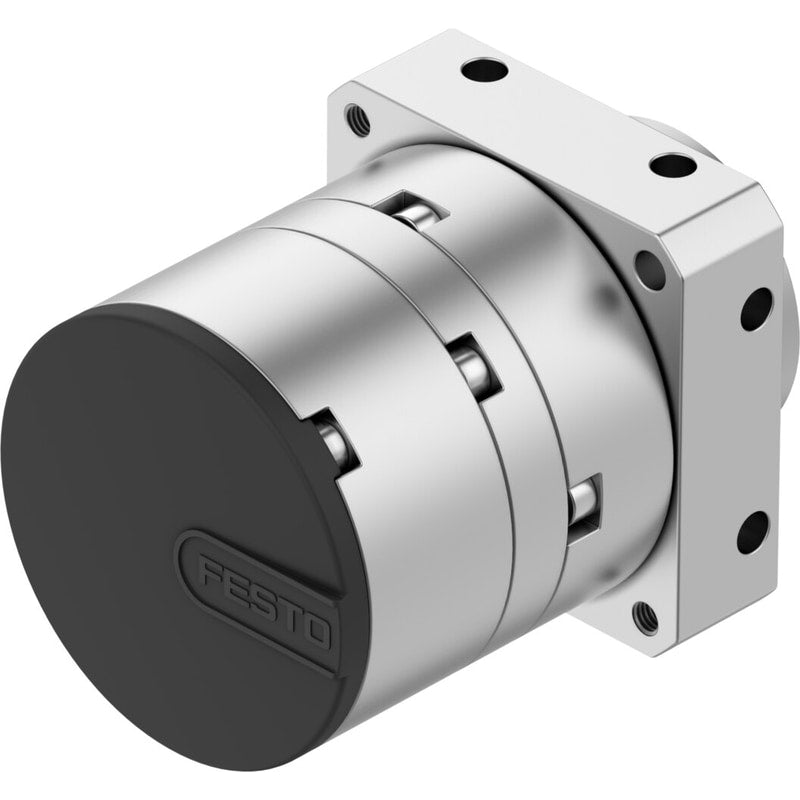

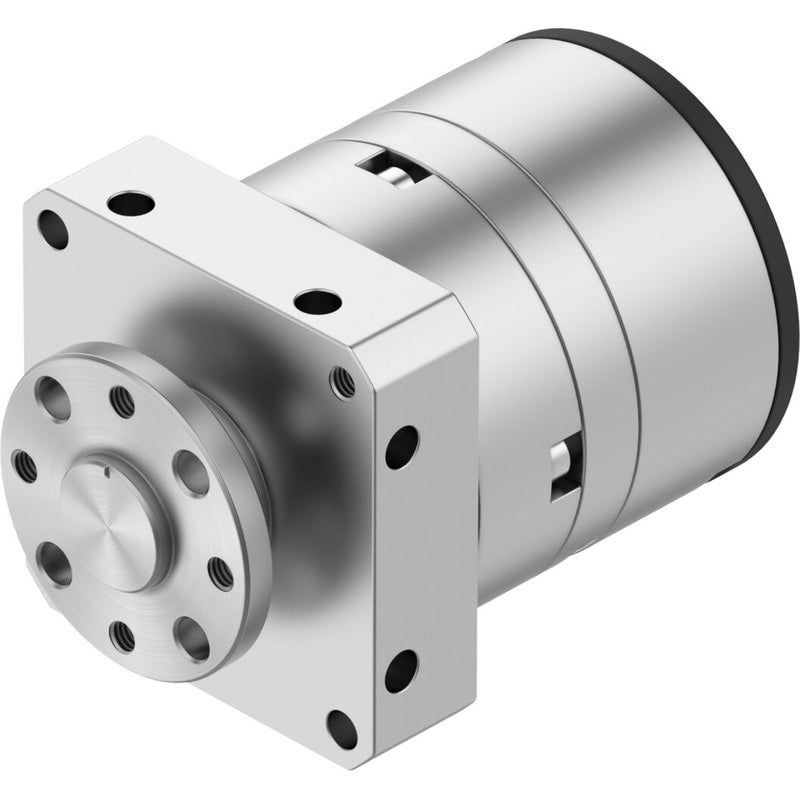

Rotary actuator
DSM-8-180-P-FF-FW
185938
GTIN 4052568146276
Vendor Festo
- Size
- 8
- Theoretical torque at 6 bar
- 0.35 Nm
- Swivel angle
- 0 deg - 180 deg
- Position sensing
- None
Regular price
$628.50
Unit price
DSM-8-180-P-FF-FW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSM-8-180-P-FF-FW
Regular price
$628.50
Unit price
DSM-8-180-P-FF-FW is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSM-8-180-P-FF-FW With flanged shaft and fixed stop, adjustable swivel angle Size=8, Cushioning angle=0 deg, Rotation angle adjustment range=0 - 180 deg, Swivel angle=0 - 180 deg, Assembly position=Any
| Size | 8 |
|---|---|
| Cushioning angle | 0 deg |
| Rotation angle adjustment range | 0 ... 180 deg |
| Swivel angle | 0 ... 180 deg |
| Assembly position | Any |
| Fine adjustment | '-5 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | No |
| Operating pressure | 3.5 ... 8 bar |
| Max. swivel frequency at 6 bar | 3 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
