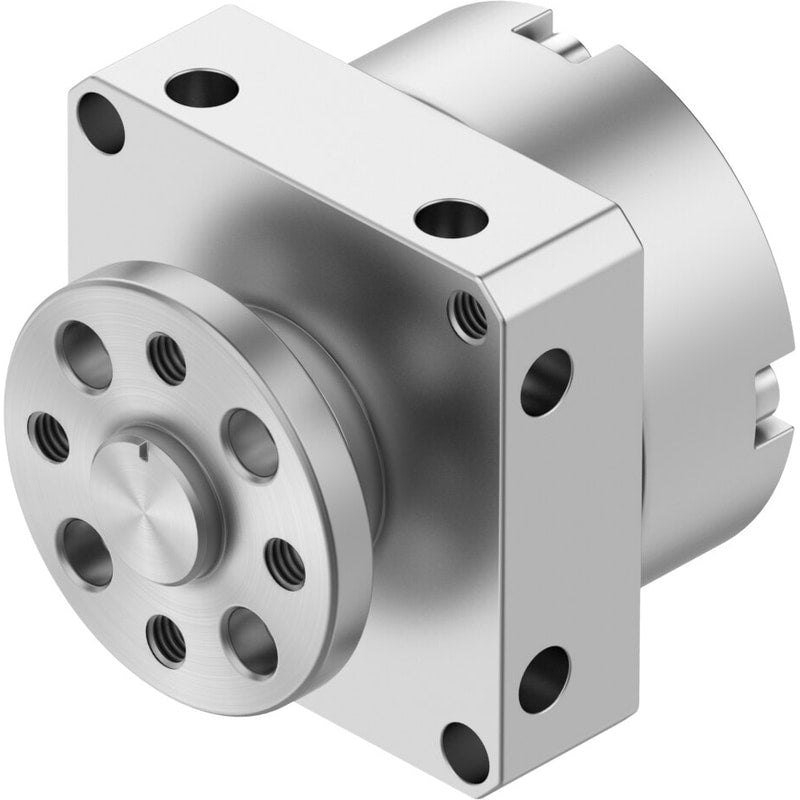

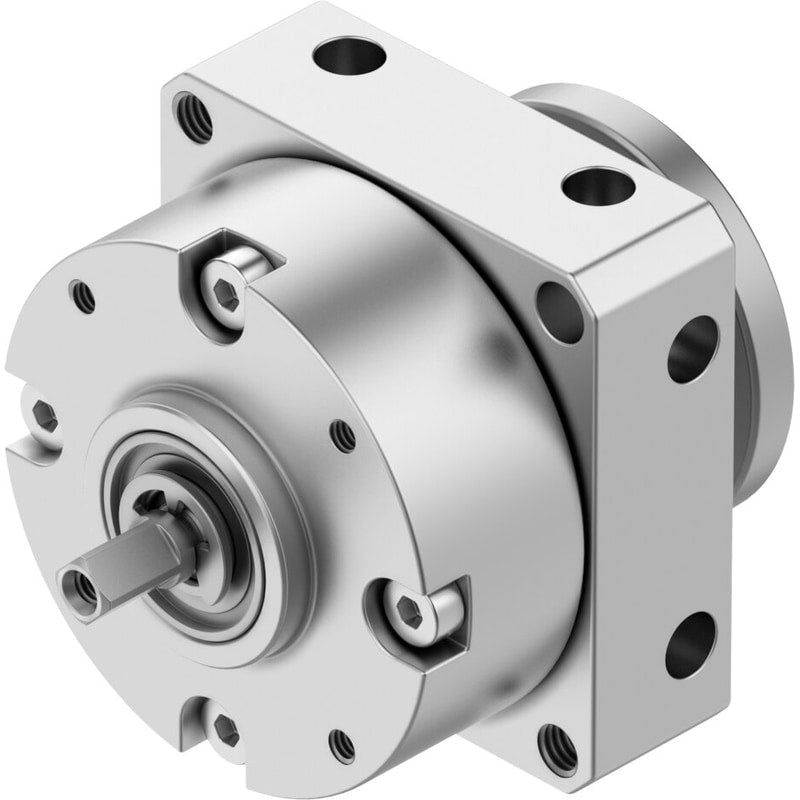

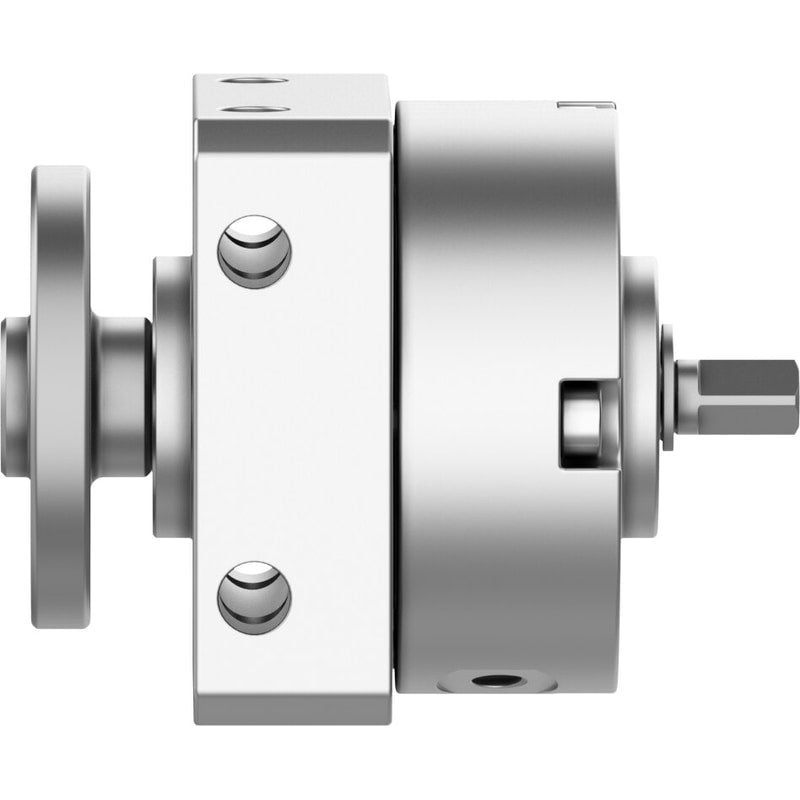

Rotary actuator
DSM-6-180-P-FW
185929
GTIN 4052568146191
Vendor Festo
- Size
- 6
- Theoretical torque at 6 bar
- 0.15 Nm
- Swivel angle
- 0 deg - 180 deg
- Position sensing
- None
Regular price
$399.46
Unit price
DSM-6-180-P-FW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSM-6-180-P-FW
Regular price
$399.46
Unit price
DSM-6-180-P-FW is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSM-6-180-P-FW With flanged shaft and fixed stop Size=6, Cushioning angle=0,5 deg, Swivel angle=0 - 180 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Size | 6 |
|---|---|
| Cushioning angle | 0.5 deg |
| Swivel angle | 0 ... 180 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | No |
| Operating pressure | 3.5 ... 8 bar |
| Max. swivel frequency at 6 bar | 3 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | 0 ... 60 °C |
