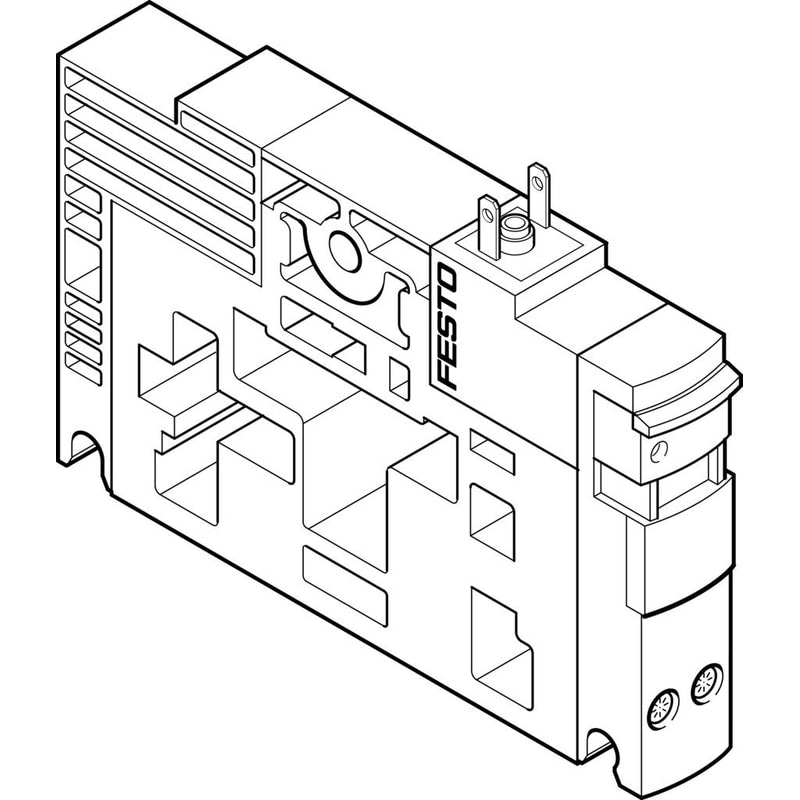

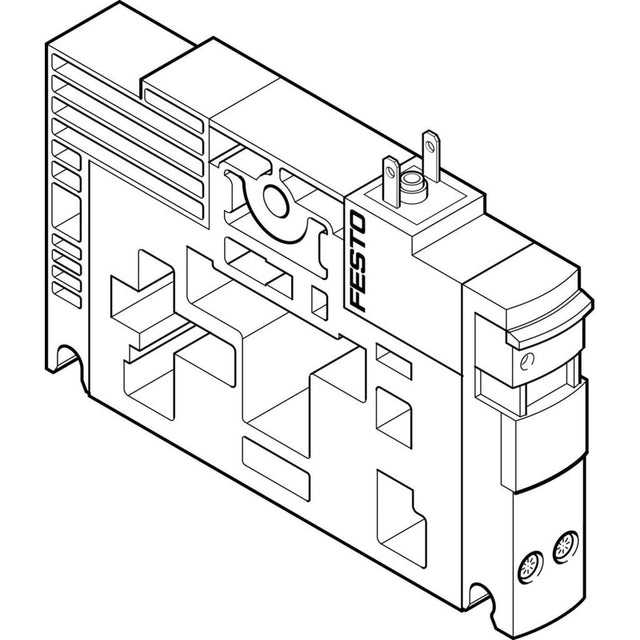

Vacuum generator
CPV18-M1H-V140-1/4
185874
GTIN 4052568146139
Vendor Festo
- Nominal width of Laval nozzle
- 1.4 mm
- Max. vacuum
- 85 %
- Operating pressure
- 3 bar - 8 bar
Regular price
$384.00
Unit price
CPV18-M1H-V140-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPV18-M1H-V140-1/4
Regular price
$384.00
Unit price
CPV18-M1H-V140-1/4 is backordered and will ship as soon as it is back in stock.
vacuum generator CPV18-M1H-V140-1/4 For valve terminal CPV. Nominal size, Laval nozzle=1,4 mm, Assembly position=Any, Ejector characteristic=High vacuum, Operating pressure=3 - 8 bar, Max. vacuum=85 %
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Operating pressure | 3 ... 8 bar |
| Max. vacuum | 0.85 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Electrical connection | Plug |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | Sub-base |
