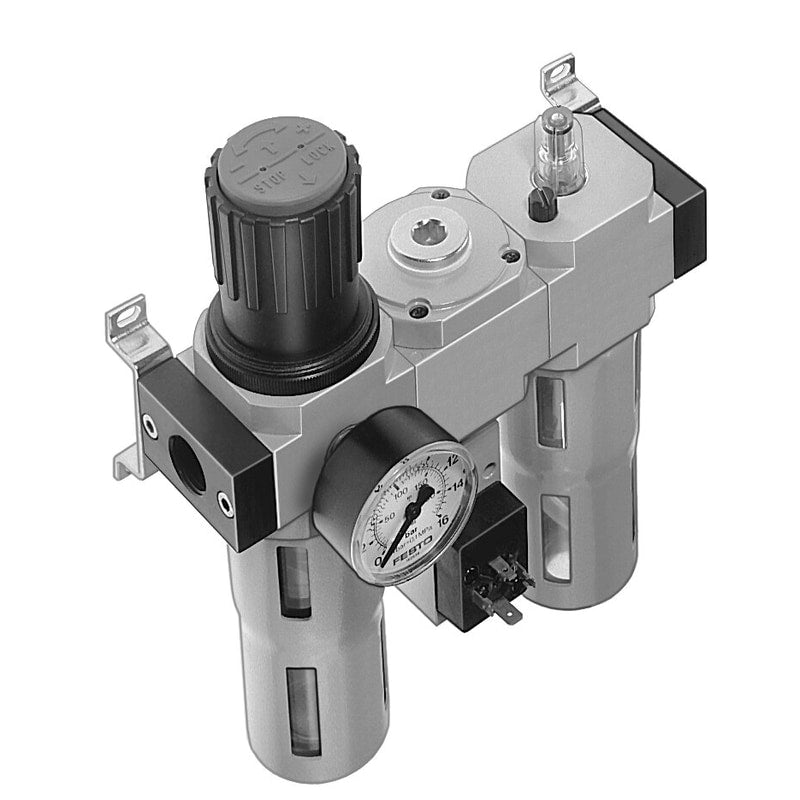

Service unit
FRC-3/8-D-MIDI-KB-A
185810
GTIN 4052568145682
Vendor Festo
Regular price
$967.60
Unit price
FRC-3/8-D-MIDI-KB-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FRC-3/8-D-MIDI-KB-A
Regular price
$967.60
Unit price
FRC-3/8-D-MIDI-KB-A is backordered and will ship as soon as it is back in stock.
| Size | Midi |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Fully automatic |
| Design | Filter regulator with pressure gaugePressure switchBranching moduleProportional standard oil mist lubricator |
| Max. condensate volume | 43 ml |
| Bowl guard | Metal bowl guard |

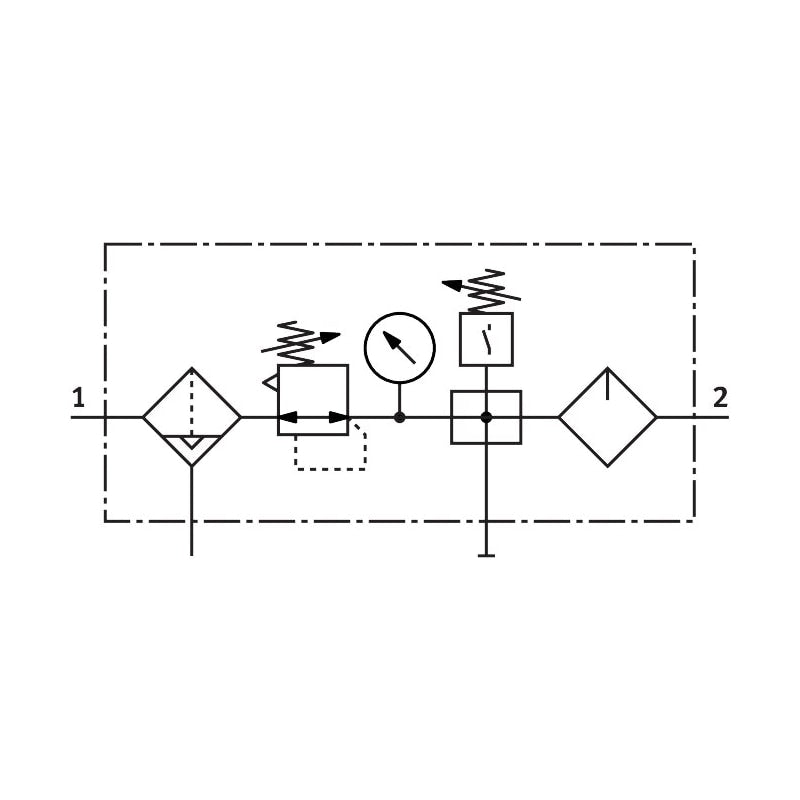

| Symbol | 991547 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 bar ... 12 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.35 bar |
| Standard nominal flow rate | 2100 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-]Inert gas |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 2600 g |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
