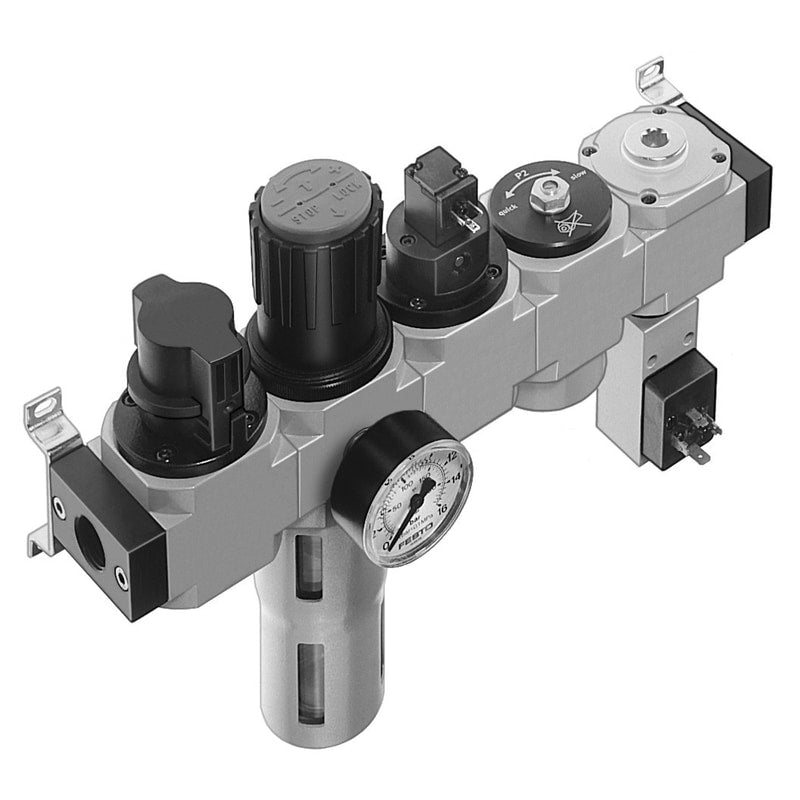

Service unit
LFR-1/8-D-MINI-KG
185779
GTIN 4052568145392
Vendor Festo
- Pneumatic connection 1
- G1/8
- Normal nominal flow rate (normalized to DIN 1343)
- 575 l/min
- Pressure regulation range
- 2.5 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$1,144.63
Unit price
LFR-1/8-D-MINI-KG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-1/8-D-MINI-KG
Regular price
$1,144.63
Unit price
LFR-1/8-D-MINI-KG is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Maritime classification | See certificate |
| Type code | LFR |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manually rotating |
| Design | Filter regulator with pressure gaugeSafety start-up valveShut off valvePressure switchBranching module |
| Max. condensate volume | 22 ml |
| Bowl guard | Metal bowl guard |

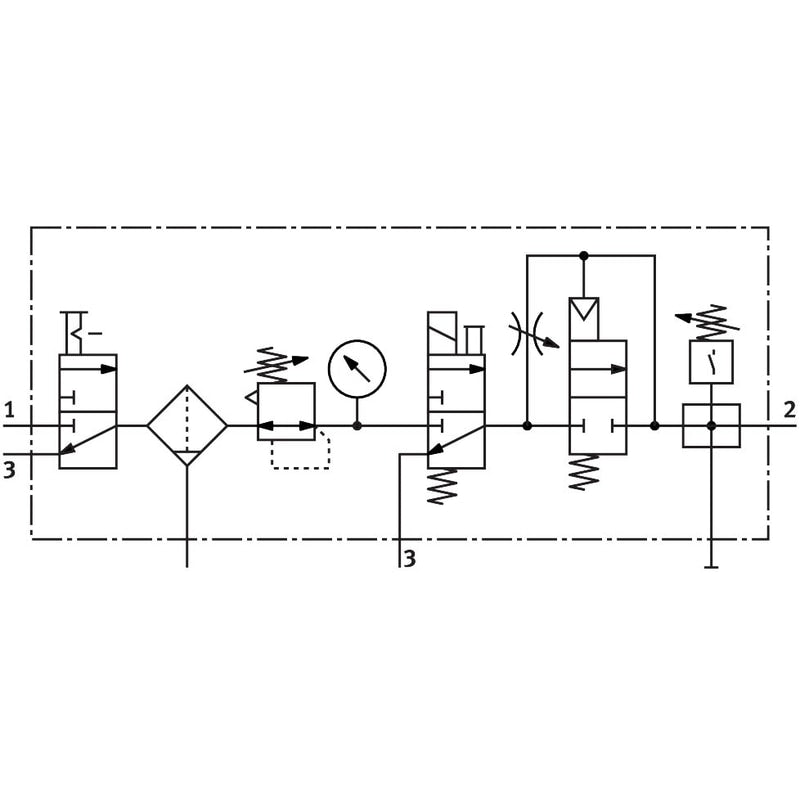

| Symbol | 991571 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 3 bar ... 16 bar |
| Pressure regulation range | 2.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.15 bar |
| Standard nominal flow rate | 575 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4]Inert gas |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 1500 g |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
