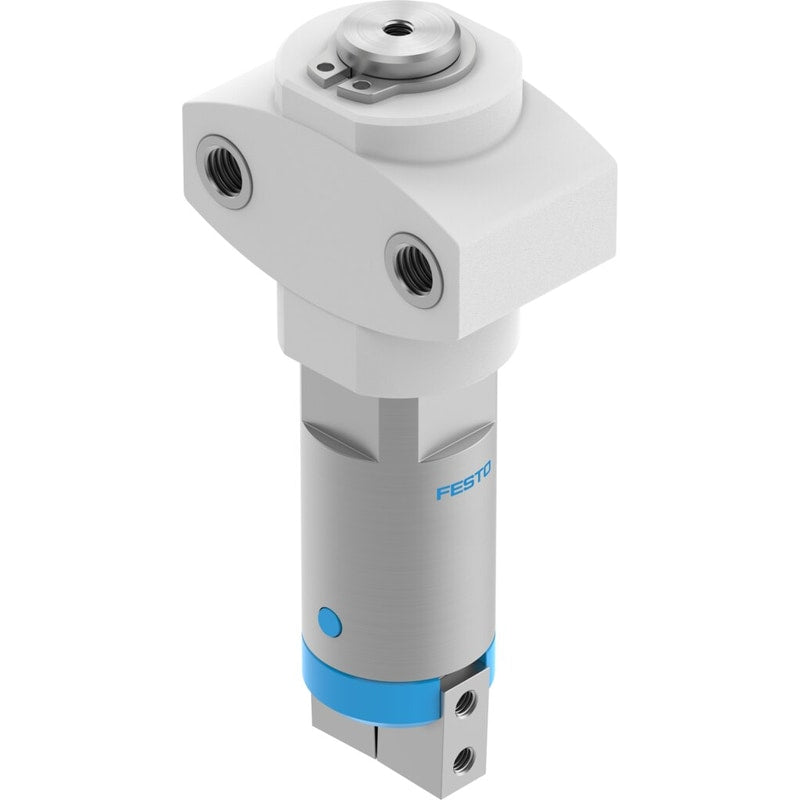

Angled gripper
HGWM-12-EZ-G6
185702
GTIN 4052568144661
Vendor Festo
- Maximum force on gripper jaw Fz, static
- 20 N
- Max. opening angle
- 14 deg
- Position sensing
- None
Regular price
$431.38
Unit price
HGWM-12-EZ-G6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HGWM-12-EZ-G6
Regular price
$431.38
Unit price
HGWM-12-EZ-G6 is backordered and will ship as soon as it is back in stock.
| Size | 12 |
|---|---|
| Max. gripper jaw angular play ax, ay | 0.5 deg |
| Max. gripper jaw backlash Sz | 0.03 mm |
| Max. opening angle | 14 deg |
| Pneumatic gripper repetition accuracy | ≤0.02 mm |
| Number of gripper jaws | 2 |
| Mode of operation | Single-acting | Closed |
| Gripper function | Angle |
| Structural design | Inclined plane |
| Position sensing | None |
| Symbol | 00991898 |
| Operating pressure | 2 bar ... 8 bar |
| Max. operating frequency of pneumatic gripper | 4 Hz |
| Min. opening time at 6 bar | 1.7 ms |
| Min. closing time at 6 bar | 2.8 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5 °C ... 60 °C |
| Stroke compensation spring force | 10 N ... 23 N |
| Spring return torque | 0.015 Nm |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 76 Ncm |
| Mass moment of inertia | 421 kgcm² |
| Mass moment of inertia per external gripper finger | 560 kgcm² |
| Maximum force on gripper jaw Fz, static | 20 N |
| Maximum torque on gripper jaw, Mx static | 0.4 Nm |
| Maximum torque on gripper jaw, My static | 0.4 Nm |
| Maximum torque on gripper jaw, Mz static | 0.4 Nm |
| Max. mass per external gripper finger | 1000 g |
| Product weight | 75 g |
| Type of mounting | With internal thread |
| Pneumatic connection | M3 |
| Cover cap material | POM |
| Housing material | High-alloy stainless steel |
| Gripper jaw material | High-alloy steel |
