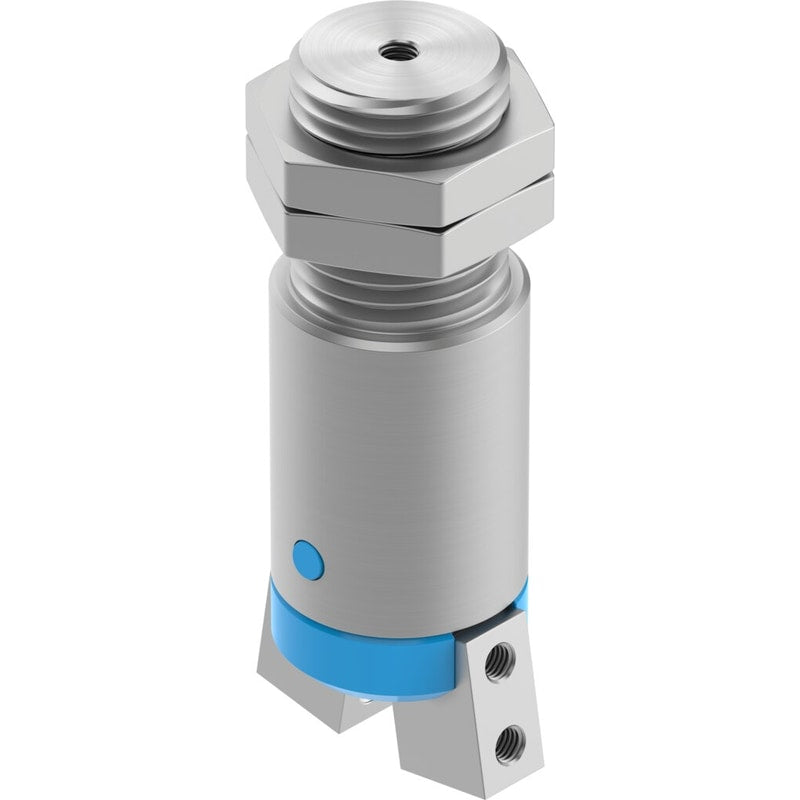

Angled gripper
HGWM-12-EO-G7
185700
GTIN 4052568144647
Vendor Festo
- Maximum force on gripper jaw Fz, static
- 20 N
- Max. opening angle
- 18.5 deg
- Position sensing
- None
Regular price
$338.41
Unit price
HGWM-12-EO-G7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HGWM-12-EO-G7
Regular price
$338.41
Unit price
HGWM-12-EO-G7 is backordered and will ship as soon as it is back in stock.
| Size | 12 |
|---|---|
| Max. gripper jaw angular play ax, ay | 0.5 deg |
| Max. gripper jaw backlash Sz | 0.03 mm |
| Max. opening angle | 18.5 deg |
| Pneumatic gripper repetition accuracy | ≤0.02 mm |
| Number of gripper jaws | 2 |
| Actuator system | Pneumatic |
| Mode of operation | Single-acting | Open |
| Gripper function | Angle |
| Gripping force backup | Without |
| Structural design | Inclined plane |
| Position sensing | None |
| Symbol | 00991897 |
| Operating pressure | 2 bar ... 8 bar |
| Max. operating frequency of pneumatic gripper | 4 Hz |
| Min. opening time at 6 bar | 3.7 ms |
| Min. closing time at 6 bar | 1.8 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5 °C ... 60 °C |
| Spring return torque | 0.013 Nm |
| Total gripping torque at 6 bar, closing | 64 Ncm |
| Mass moment of inertia | 267 kgcm² |
| Mass moment of inertia per external gripper finger | 560 kgcm² |
| Maximum force on gripper jaw Fz, static | 20 N |
| Maximum torque on gripper jaw, Mx static | 0.4 Nm |
| Maximum torque on gripper jaw, My static | 0.4 Nm |
| Maximum torque on gripper jaw, Mz static | 0.4 Nm |
| Max. mass per external gripper finger | 1000 g |
| Product weight | 52 g |
| Type of mounting | With lock nut |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Cover cap material | POM |
| Housing material | High-alloy stainless steel |
| Gripper jaw material | High-alloy steel |
