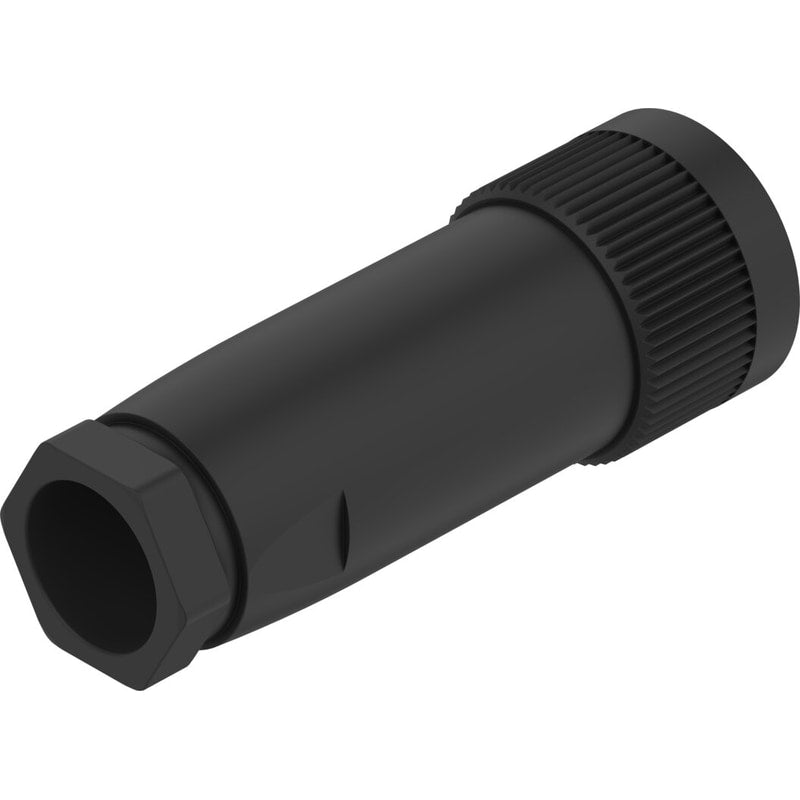

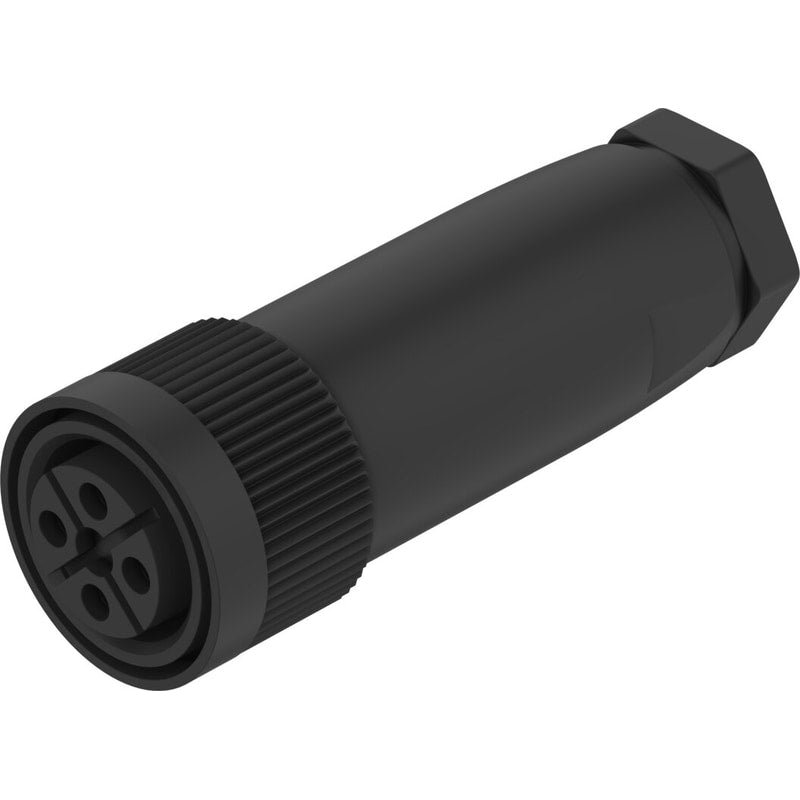

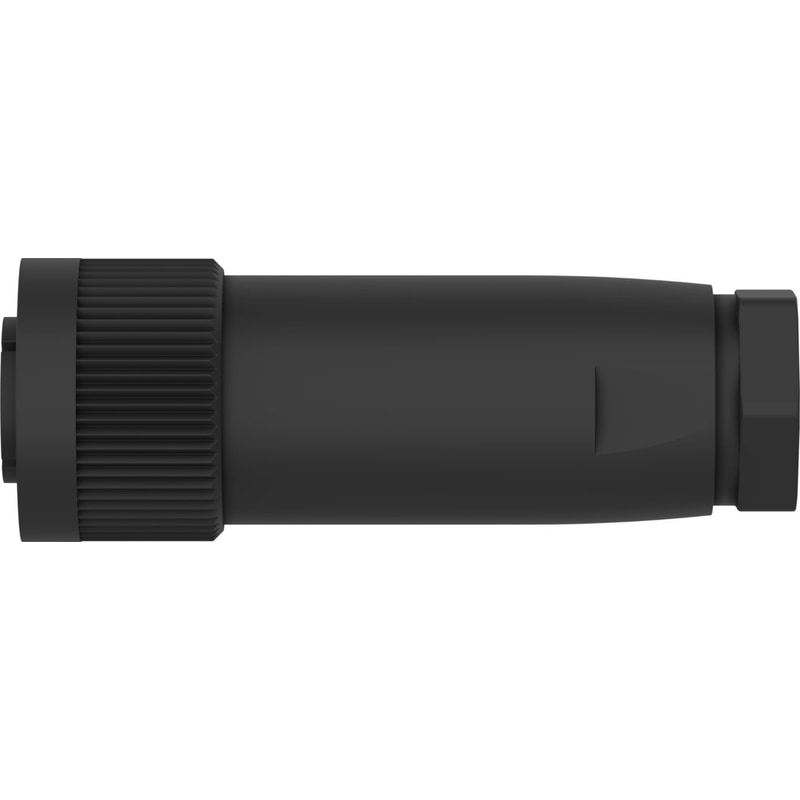

Power supply socket
NTSD-GD-13,5
18526
GTIN 4052568022273
Vendor Festo
- Electrical connection
- Screw terminal
- Connection cross section
- 2.5 mm²
- Degree of protection
- IP67
Regular price
$36.77
Unit price
NTSD-GD-13,5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NTSD-GD-13,5
Regular price
$36.77
Unit price
NTSD-GD-13,5 is backordered and will ship as soon as it is back in stock.
| Type code | NTSD |
|---|---|
| Type of mounting | With union nut |
| Product weight | 31 g |
| Electrical connection | Socket, straightScrew terminal4-pin |
| Operating voltage range AC | ≤ 250 V |
| Current rating | 16 A |
| Approved cable diameter | 6 mm ... 8 mm |
| Connection cross section | 2.5 mm² |
| Degree of protection | IP67 |
| Ambient temperature | -5 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Housing material | PBT |
| Material of pin contacts | Copper alloyBrass |
| Mounting position | Any |
| Cable fitting | Pg13 |
