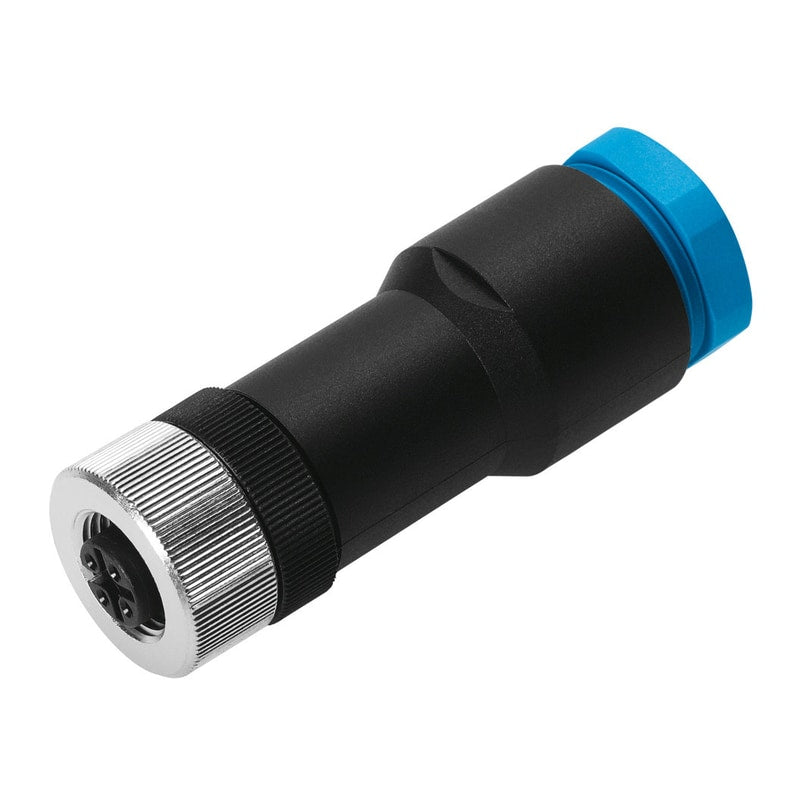

Plug socket
FBSD-GD-13,5
18496
GTIN 4052568022235
Vendor Festo
- Electrical connection
- M12x1
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP67
Regular price
$23.05
Unit price
FBSD-GD-13,5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FBSD-GD-13,5
Regular price
$23.05
Unit price
FBSD-GD-13,5 is backordered and will ship as soon as it is back in stock.
| Type code | FBSD |
|---|---|
| Based on norm | EN 61984EN 61076-2-101 |
| Type of mounting | With union nut |
| Product weight | 40 g |
| Electrical connection | Form AStraight socket/screw terminalM12x14-pin |
| DC operating voltage range | ≤ 250 V |
| Operating voltage range AC | ≤ 250 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 2.5 kV |
| Approved cable diameter | 10 mm ... 12 mm |
| Connection cross section | 0.75 mm² |
| Degree of protection | IP67 |
| Ambient temperature | -40 °C ... 85 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA-reinforced |
| Housing colour | Black |
| Material of union nut | Nickel-platedDie-cast zinc |
| Material of pin contacts | White bronze, coatedBronze |
| Mounting position | Any |
| Cable fitting | Pg13.5 |
