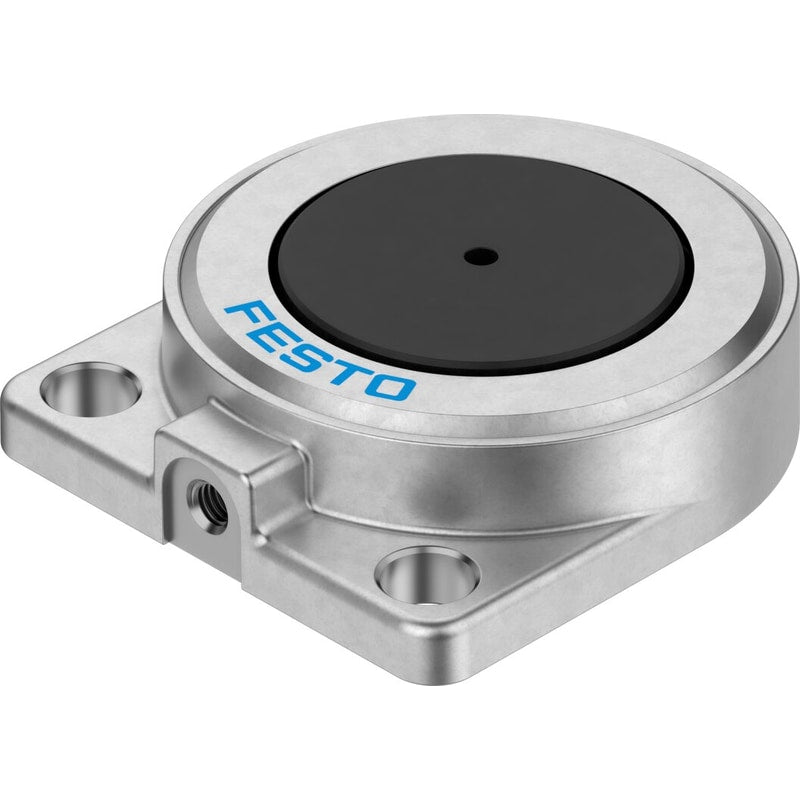

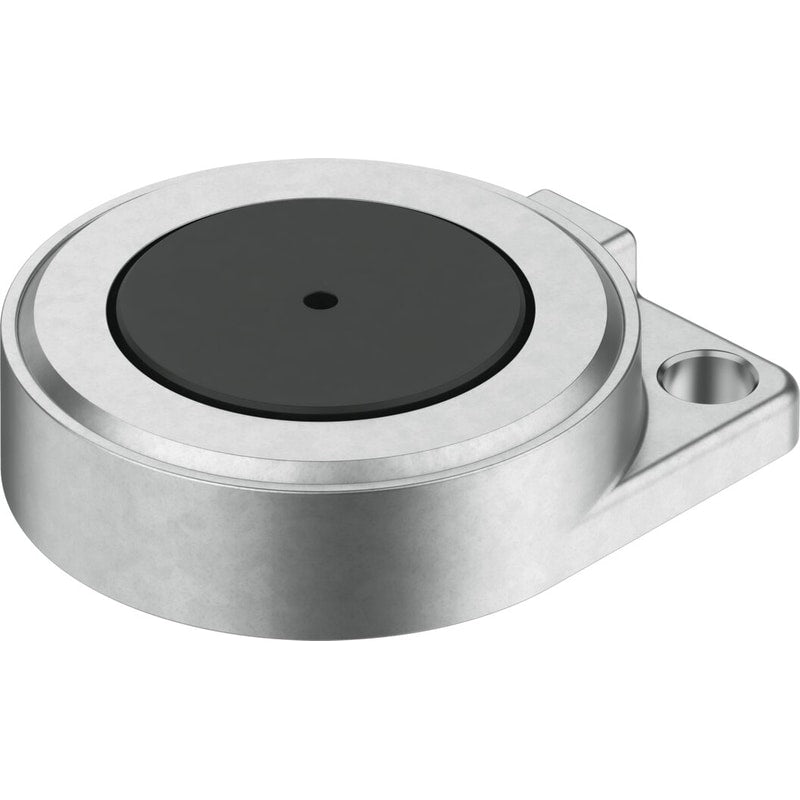

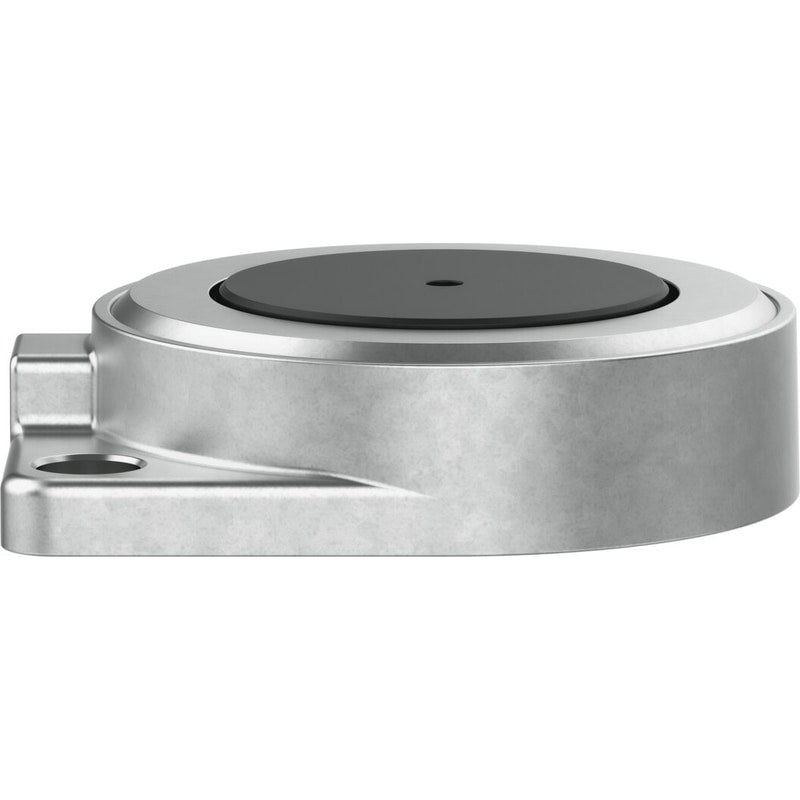

Clamping module
EV-40-5
184857
GTIN 4052568004958
Vendor Festo
- Clamping area
- Ø 40
- Stroke
- 5 mm
Regular price
$135.08
Unit price
EV-40-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EV-40-5
Regular price
$135.08
Unit price
EV-40-5 is backordered and will ship as soon as it is back in stock.
| Stroke | 5 mm |
|---|---|
| Clamping area | Ø 40 |
| Type code | EV |
| Mounting position | Any |
| Mode of operation | Single-acting |
| Symbol | 991208 |
| Operating pressure | ≤ 6 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -10 °C ... 40 °C |
| Product weight | 52 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M3 |
| Note on materials | Free of copper and PTFE |
| Housing material | Die-cast aluminum |
| Diaphragm material | TPE-U(PU) |
