Manual override
HAB-3/8
184587
GTIN 4052568075897
Vendor Festo
Regular price
$41.32
Unit price
HAB-3/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HAB-3/8
Regular price
$41.32
Unit price
HAB-3/8 is backordered and will ship as soon as it is back in stock.

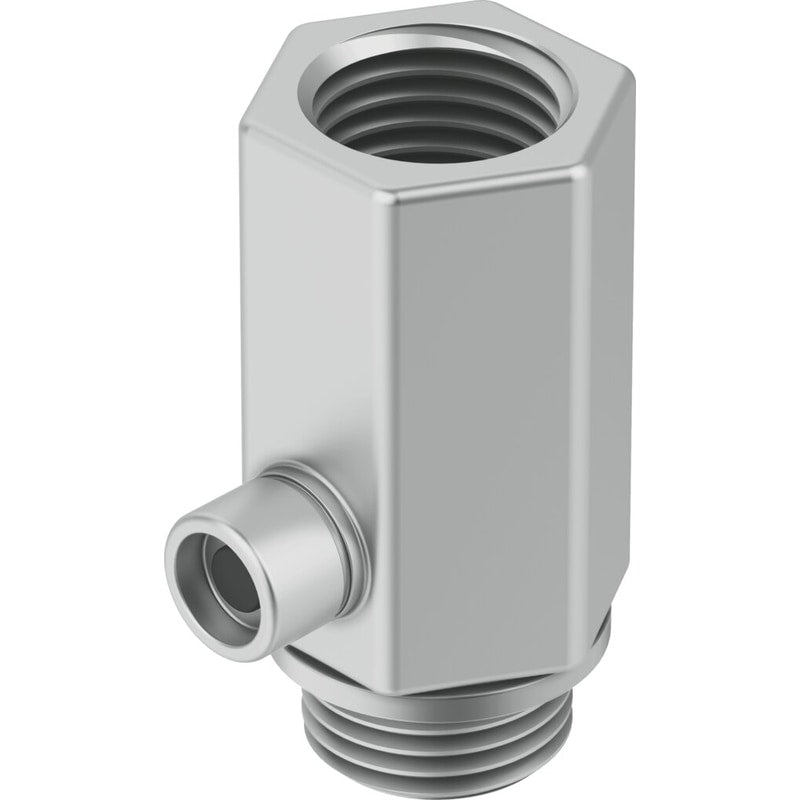

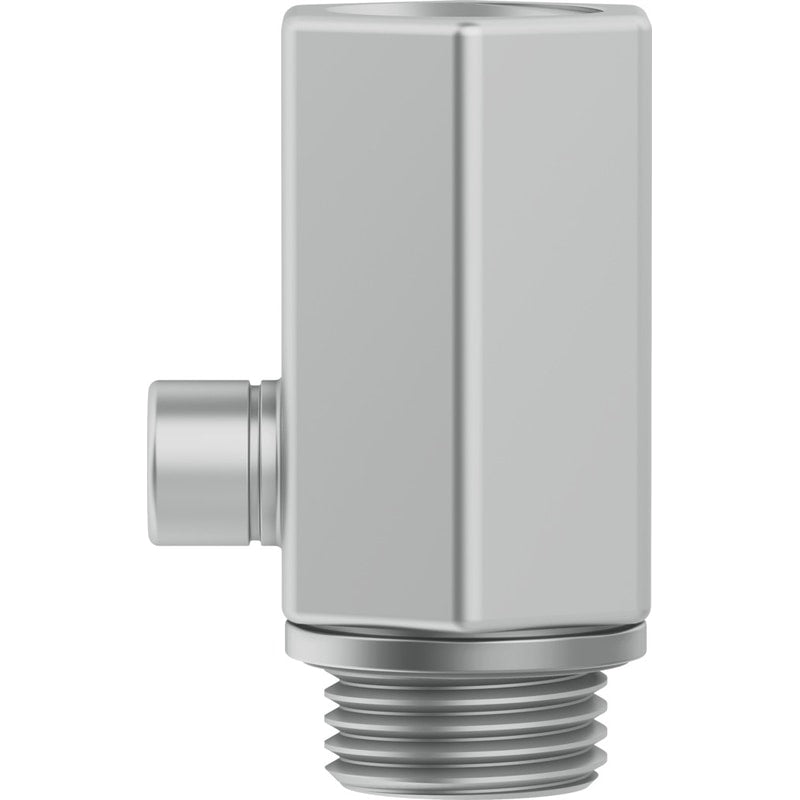

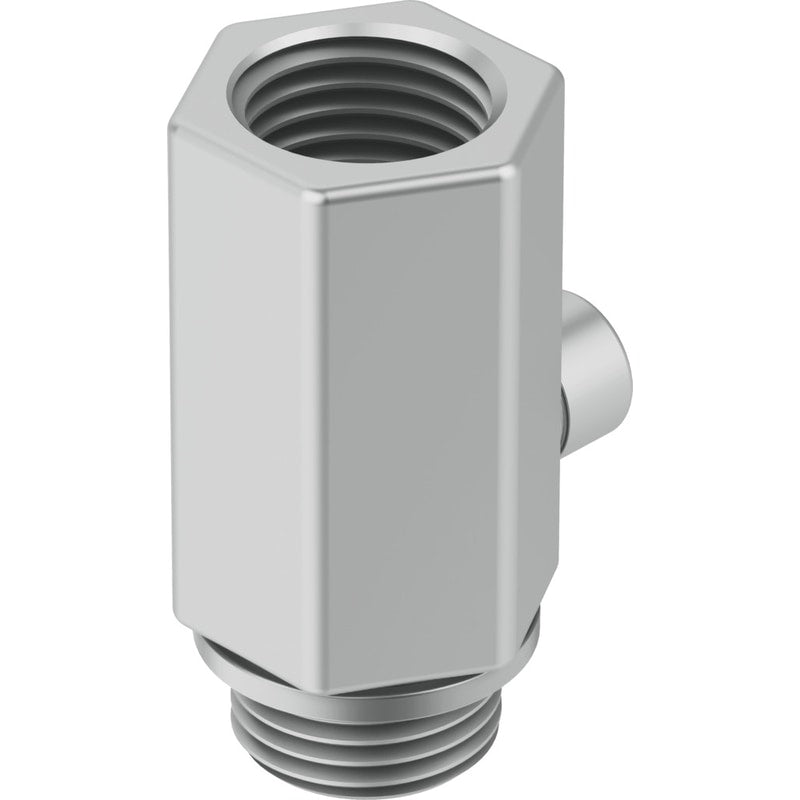

manual override HAB-3/8 For exhaust air. Nominal size=11 mm, Assembly position=Any, Valve function=exhaust component, Operating pressure=0 - 10 bar, Standard nominal flow rate, exhaust=165 l/min
| Nominal size | 11 mm |
|---|---|
| Assembly position | Any |
| Valve function | exhaust component |
| Operating pressure | 0 ... 10 bar |
| Standard nominal flow rate, exhaust | 165 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-20 ... 80 °C |
| Ambient temperature | '-20 ... 80 °C |
| Mounting type | Threaded |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
