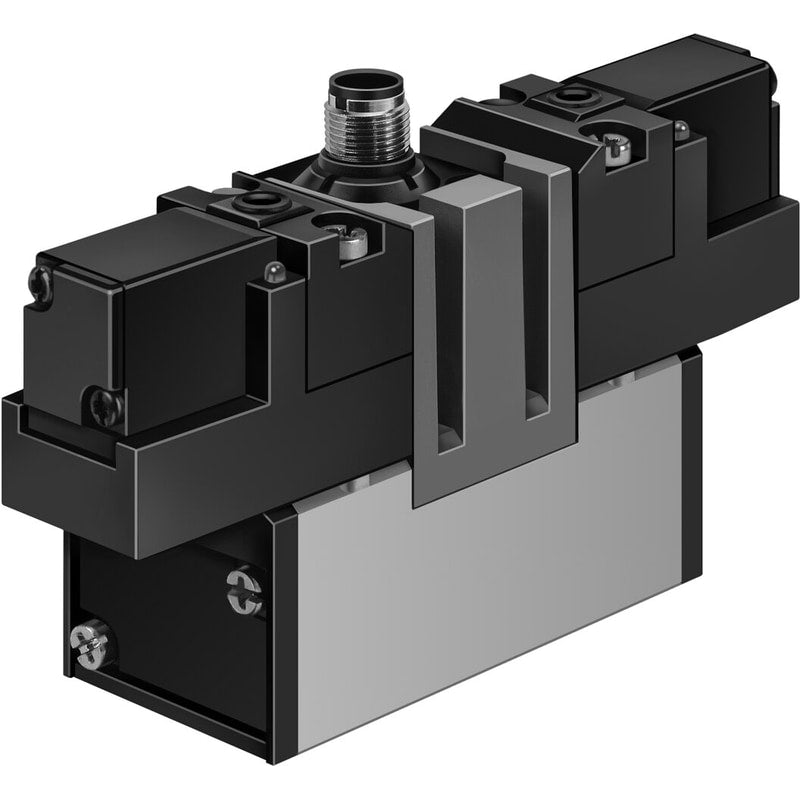

Air solenoid valve
JMEBH-5/2-D-3-ZSR-C
184509
GTIN 4052568014452
Vendor Festo

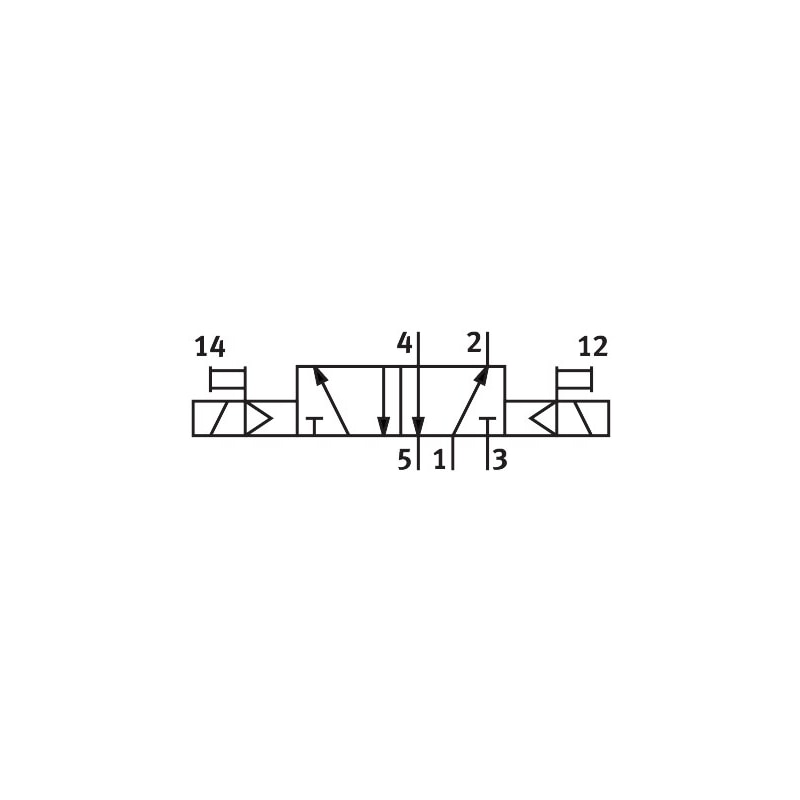

- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 4500 l/min
- Pneumatic connection 1
- Sub-base, size 3 as per ISO 5599-1
- Actuation type
- Electrical
Regular price
$555.28
Unit price
JMEBH-5/2-D-3-ZSR-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMEBH-5/2-D-3-ZSR-C
Regular price
$555.28
Unit price
JMEBH-5/2-D-3-ZSR-C is backordered and will ship as soon as it is back in stock.
solenoid valve JMEBH-5/2-D-3-ZSR-C With central plug connector Valve function=5/2 bistable, Type of actuation=electrical, Width=65 mm, Standard nominal flow rate=4500 l/min, Operating pressure=2 - 10 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 65 mm |
| Standard nominal flow rate | 4,500 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Piston slide |
| Protection class | IP65 |
| Nominal size | 14.5 mm |
| Grid dimension | 71 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 5599-1 |
