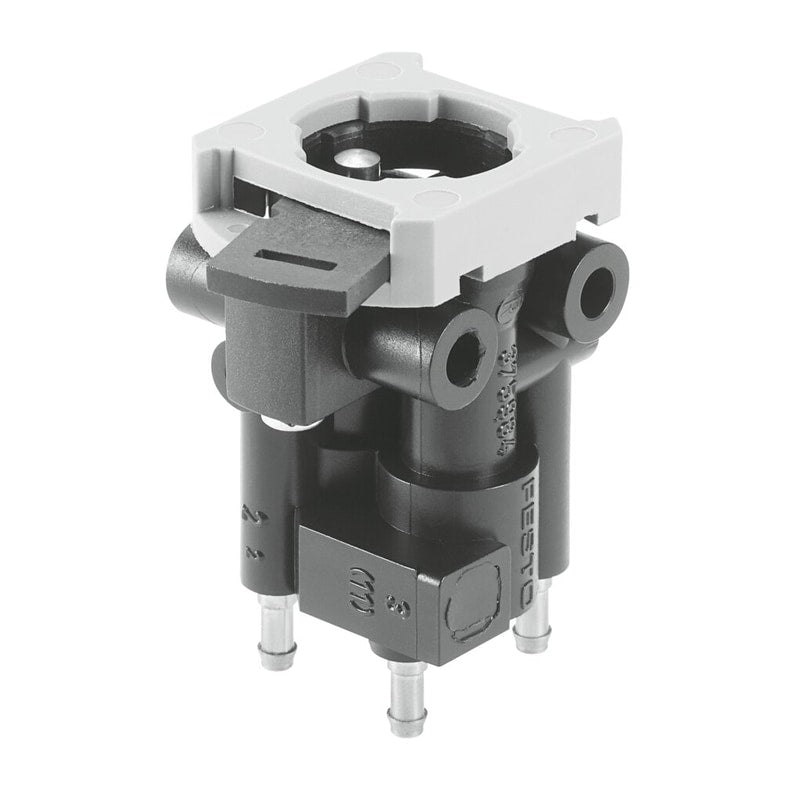

Front panel valve
SV/O-3-PK-3X2
184135
GTIN 4052568014407
Vendor Festo
Regular price
$129.25
Unit price
SV/O-3-PK-3X2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SV/O-3-PK-3X2
Regular price
$129.25
Unit price
SV/O-3-PK-3X2 is backordered and will ship as soon as it is back in stock.

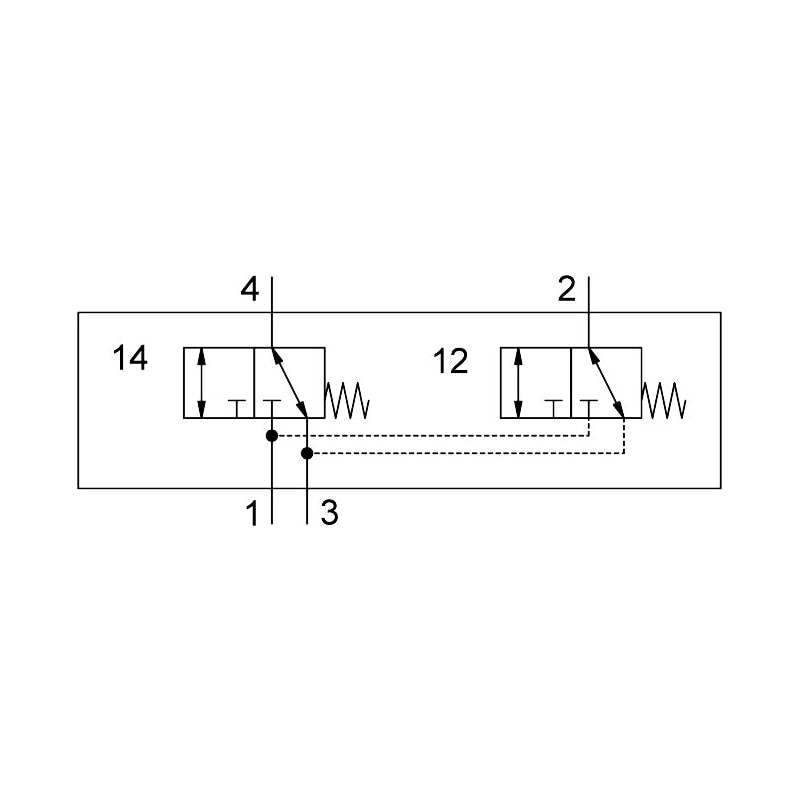

front panel valve SV/O-3-PK-3X2 Valve function=2x3/2 closed, monostable, Standard nominal flow rate=70 l/min, Operating pressure=0 - 8 bar, Type of reset=mechanical spring, Nominal size=2,5 mm
| Valve function | 2x3/2 closed, monostable |
|---|---|
| Standard nominal flow rate | 70 l/min |
| Operating pressure | 0 ... 8 bar |
| Type of reset | mechanical spring |
| Nominal size | 2.5 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 34 g |
| Mounting type | with through hole |
