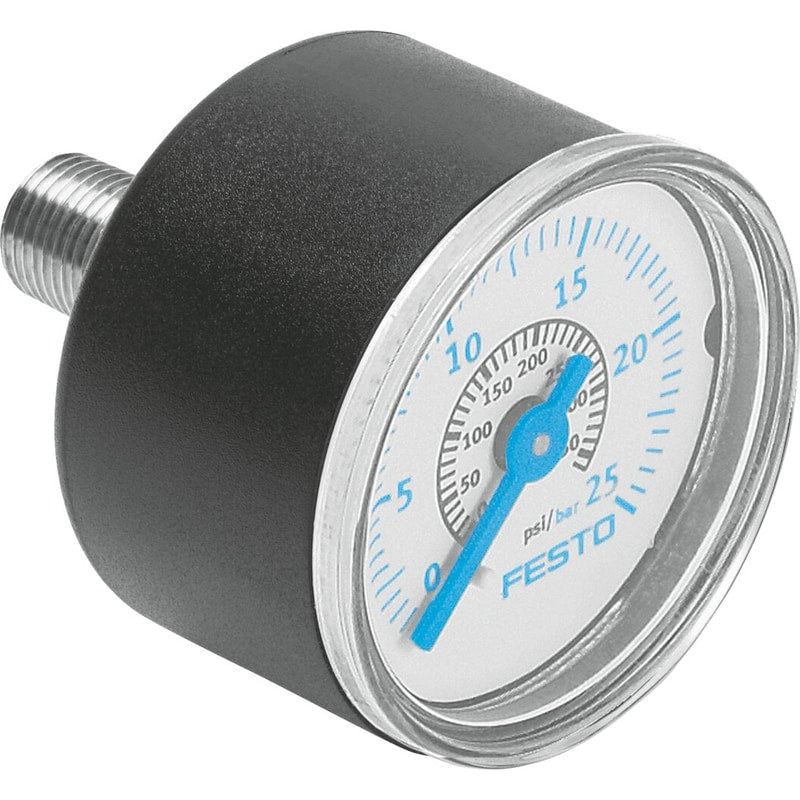

Pressure gauges
MA-40-25-G1/4-EN
183902
GTIN 4052568322069
Vendor Festo
- Type of mounting
- Line installation
- Display range
- 0 bar - 25 bar
- Pneumatic connection
- G1/4
- Measurement accuracy class
- 2.5
Regular price
$20.88
Unit price
Pressure gauges MA-40-25-G1/4-EN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MA-40-25-G1/4-EN
Regular price
$20.88
Unit price
Pressure gauges MA-40-25-G1/4-EN is backordered and will ship as soon as it is back in stock.
| Display range | 0 bar ... 25 bar |
|---|---|
| Type code | MA |
| Symbol | 991463 |
| Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 40 |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Observe the information on the certificate |
| Design | Bourdon tube pressure gauge |
| Type of mounting | Line installation |
| Operating medium | Inert gasNeutral liquids |
| Operating pressure | 0 bar ... 25 bar |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 2.5 |
| Degree of protection | IP43 |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Note on materials | RoHS-compliant |
| Connection position | Centered on rear side |
| Pneumatic connection | G1/4 |
| Materials in contact with the media | Brass |
| Material of screwed trunnion | Brass |
| Housing material | ABS |
| Inspection window material | PS |
| Housing colour | Black |
| Information on operating and pilot media | No oxygenNo acetylene |
