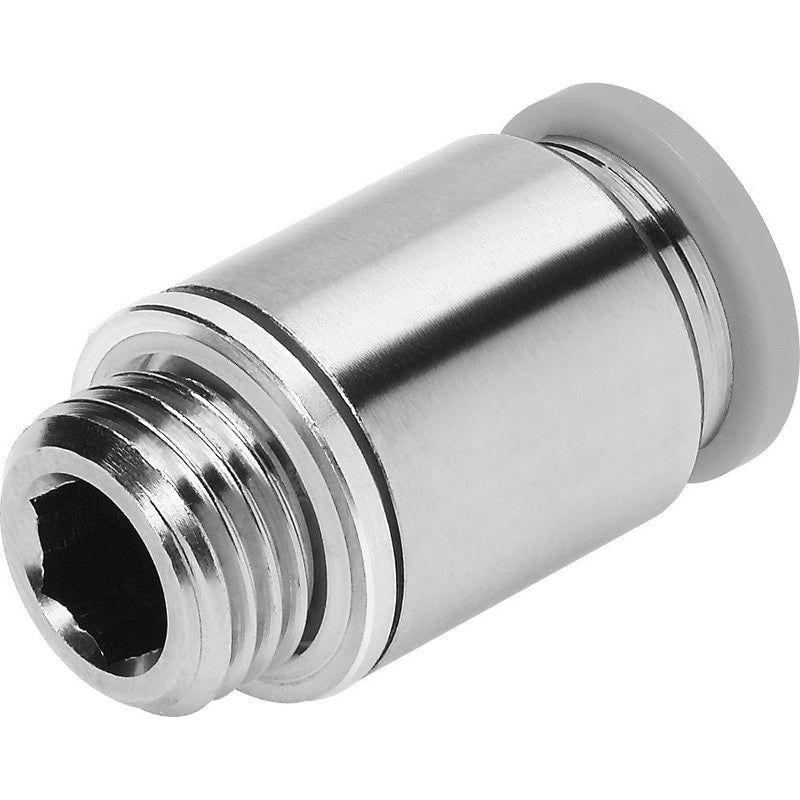

Push-in fitting
QS-3/8-3/8-I-U-M
183746
GTIN 4052568321994
Vendor Festo
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 7.29 mm
Regular price
$4.26
Unit price
QS-3/8-3/8-I-U-M is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QS-3/8-3/8-I-U-M
Regular price
$4.26
Unit price
QS-3/8-3/8-I-U-M is backordered and will ship as soon as it is back in stock.
push-in fitting QS-3/8-3/8-I-U-M male thread with internal hexagon socket. Size=Standard, Nominal size=0,287 ", Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 0.287 " |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.78 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Product weight | 0.988 oz |
| connection 1 | Male thread R3/8 |
| connection 2 | 3/8" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
| Material release ring | POM |
