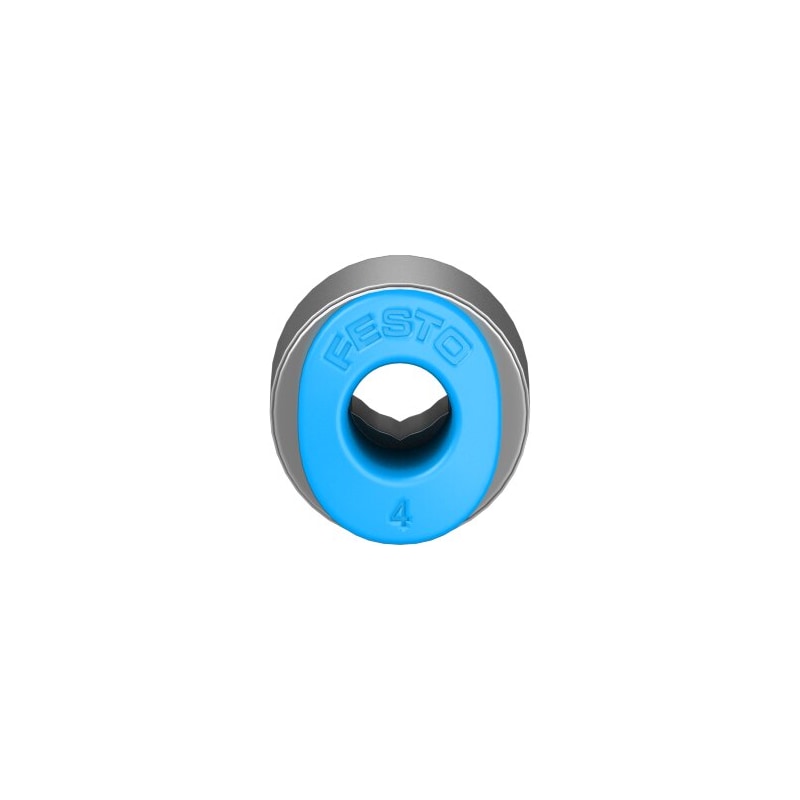

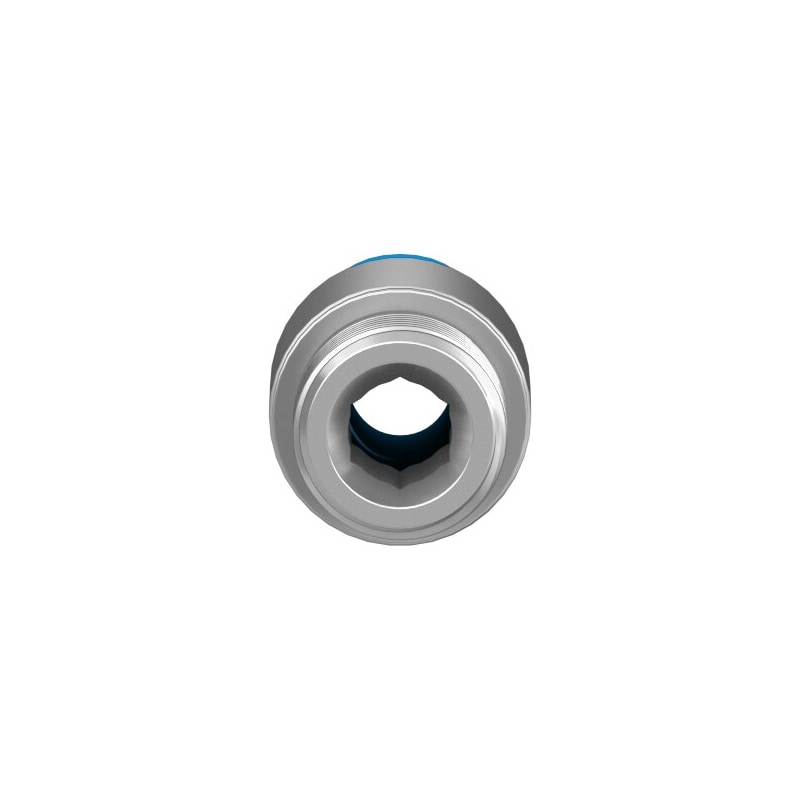

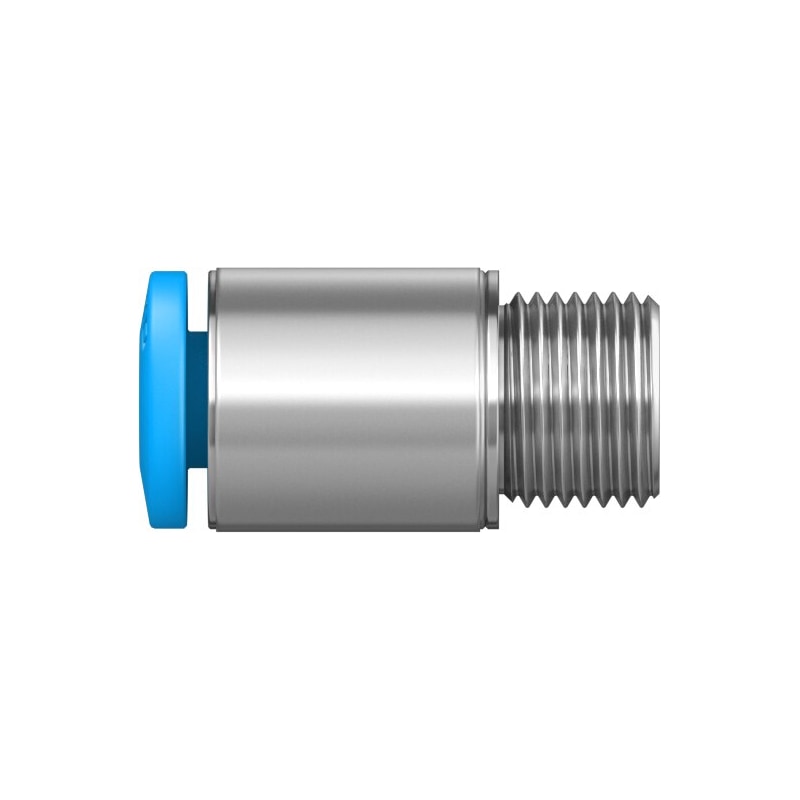

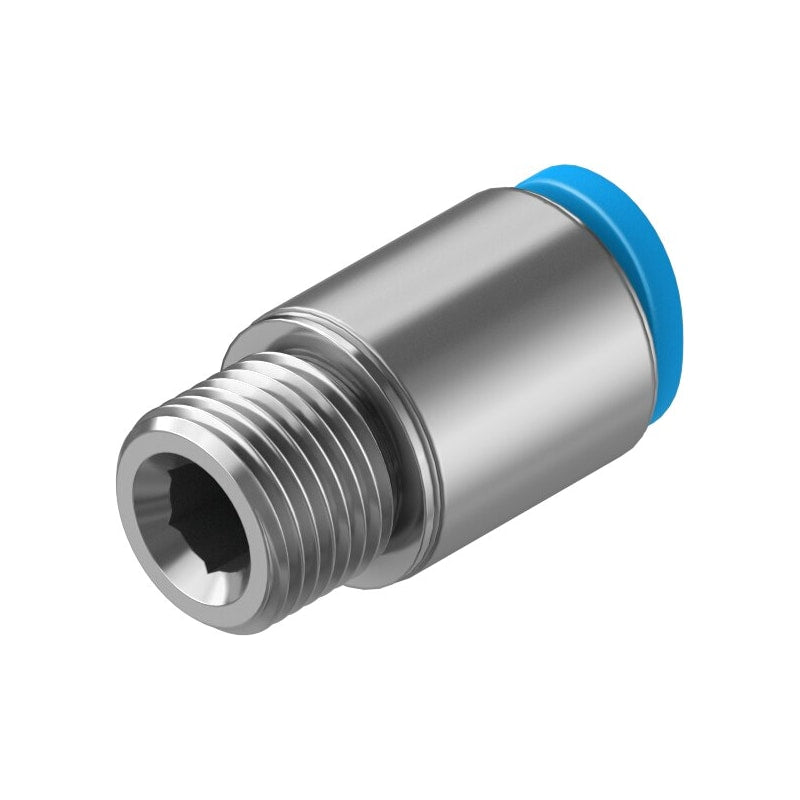

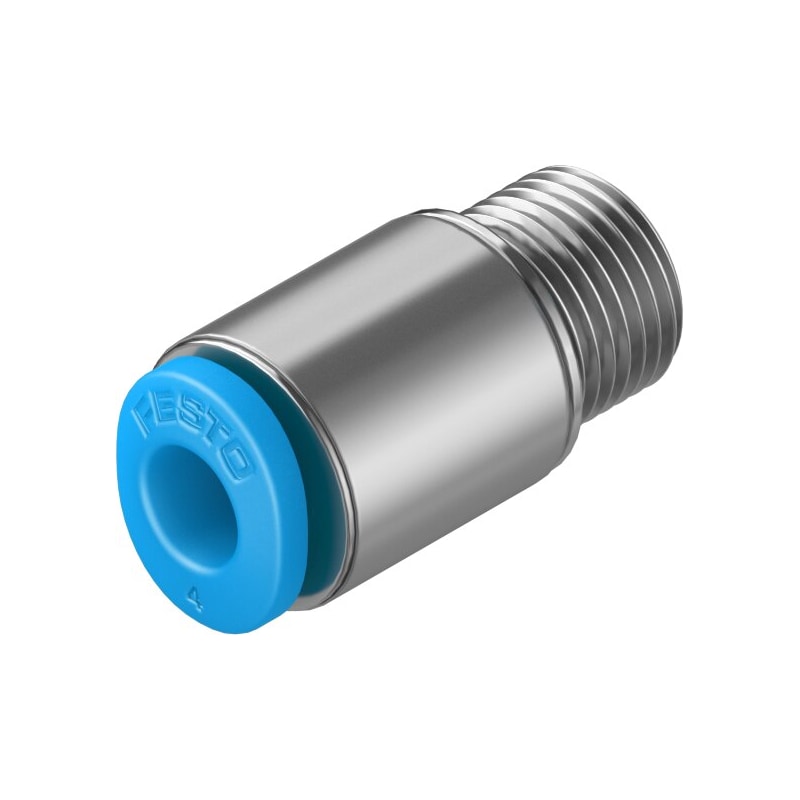

Push-in fitting
QSM-M7-1/8-I-U-M (Pack of 10)
183738
GTIN 4052568321918
Vendor Festo
- Pneumatic connection 1
- External thread M7
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/8"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.007 mm
Regular price
$4.06
Unit price
QSM-M7-1/8-I-U-M (Pack of 10) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSM-M7-1/8-I-U-M (Pack of 10)
Regular price
$4.06
Unit price
QSM-M7-1/8-I-U-M (Pack of 10) is backordered and will ship as soon as it is back in stock.
push-in fitting QSM-M7-1/8-I-U-M male thread with internal hexagon socket. Size=Mini, Nominal size=0,079 ", Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Straight Union |
|---|---|
| Size | Mini |
| Nominal size | 0.079 " |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.78 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Nominal tightening torque | 2.471 ft-lbf |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 0.219 oz |
| connection 1 | Male thread M7 |
| connection 2 | 1/8" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
